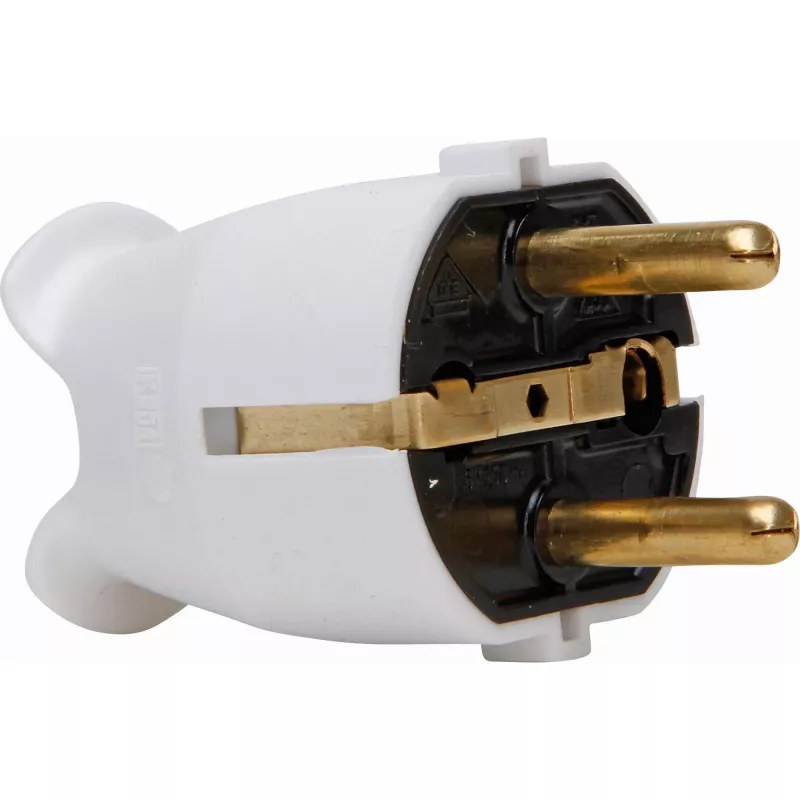

Kopp spina di sicurezza in plastica, per 3x1,5mm², bianco artico

The Kopp plastic safety plug is designed for cable cross-sections up to 3x1.5mm² and features a central entry with two safety contact systems in accordance with standard CEE 7/VII. It is rated for 16A and 250V~ and offers IP20 protection.

Key features

• Central entry
• 2 safety contact systems in accordance with standard CEE 7/VII
• For cable cross-sections up to 3x1.5mm²
• IP20 protection
• Screw terminal connection
• Straight plug direction

Specifications

• Brand: Kopp
• MPN: 175702000
• Product colour: White
• Number of poles: 2
• Material: Plastic
• Adapter plug: No
• Rated current: 16.00A
• Rated voltage: 230V
• Design: Hybrid plug CEE 7/7 (type E/F)
• Protection class (IP): IP20
• Material quality: Thermoplastic
• Protection class (NEMA): Other
• NEMA code: Other
• Connection technology: Screw terminal
• Plug direction: Straight
• Height packaging: 0.040m
• Width packaging: 0.095m
• Packaging volume: 0.001m³
• Length packaging: 0.060m
• Country of origin: Germany
• Manufacturer No.: 175702000
• EAN Barcode: 4008224238540
• Side B: Cable entry
• Special feature: IP20
• Side A: CEE7/7 plug
• Weight: 0023kg
• Customs tariff number: 8536699099
