KSV-300 R=300 HDG Canale di drenaggio curva verticale esterna 90° larghezza 300mm

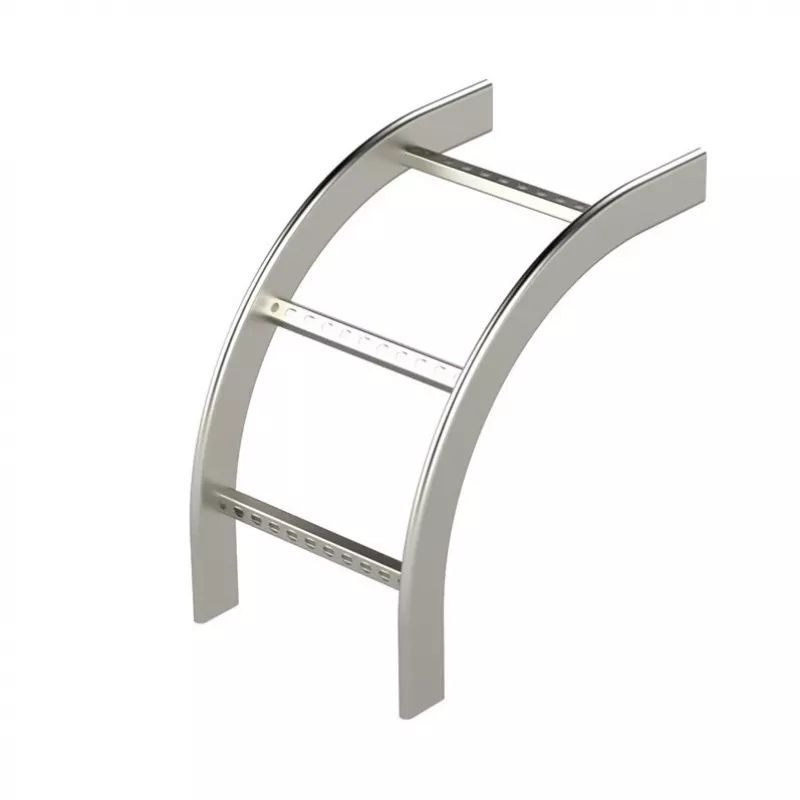

The KSV-300 R=300 HDG Ladder Vertical Outward Bend is a high-quality component from the KSV 60 cable ladder system, designed for professional industrial cable management. This 90-degree vertical outward bend allows for smooth cable transitions in vertical runs, ensuring cable integrity and ease of installation. Made from steel with hot-dip galvanised (HDG) surface finish, it provides excellent corrosion protection according to DIN EN ISO 1461, making it suitable for both indoor and outdoor use.

Advantages

This vertical bend offers reliable performance in demanding environments. The hot-dip galvanised finish ensures long-lasting durability and resistance to corrosion. With a 300 mm radius, it supports gentle cable bending, reducing stress on cables. The 90-degree angle facilitates efficient vertical transitions in cable ladder systems.

Suitable for

• Industrial cable management systems
• Outdoor installations requiring corrosion resistance
• Vertical cable transitions in KSV 60 cable ladder runs
• Applications complying with IEC 61537 standards

Key specifications

• Product Type: Cable Ladder Vertical Bend
• Series: KSV 60 Cable Ladder System
• Bend Type: Vertical Outward
• Bend Angle: 90 degrees
• Radius (R): 300 mm
• Ladder Width Compatibility (B): 300 mm
• Side Height (H): 60 mm
• Material: Steel
• Surface Finish: Hot-dip galvanised (HDG)
• Corrosion Protection: Yes, according to DIN EN ISO 1461
• Colour: Metallic Grey
• UV Resistance: High
• Fire Rating: Non-combustible
• Standards Compliance: IEC 61537

Recommendations

For optimal performance, use this vertical outward bend with compatible KSV 60 cable ladders and accessories. Ensure proper support and fixing according to installation guidelines.
