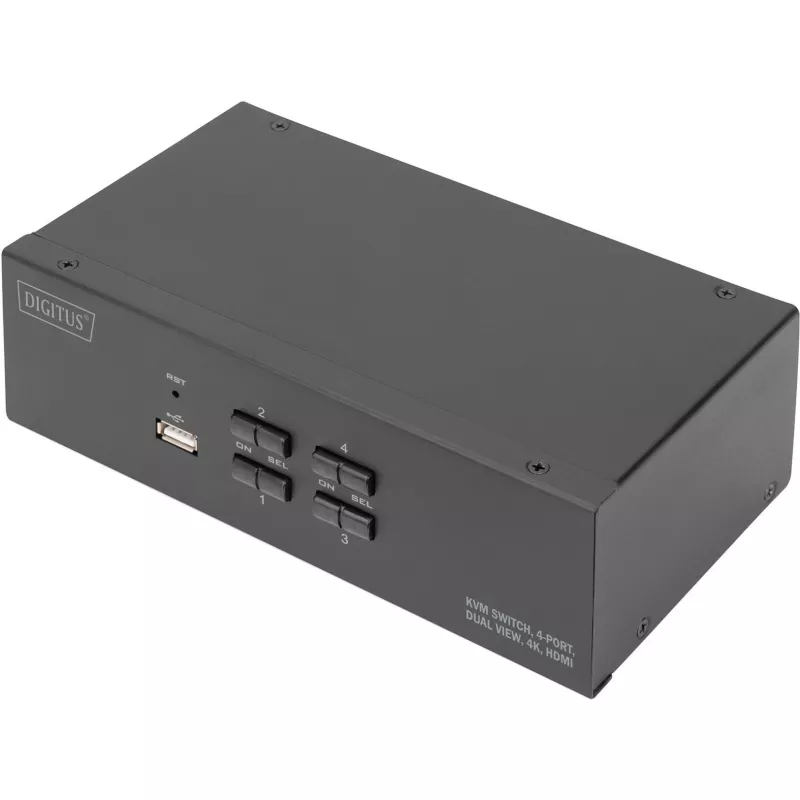

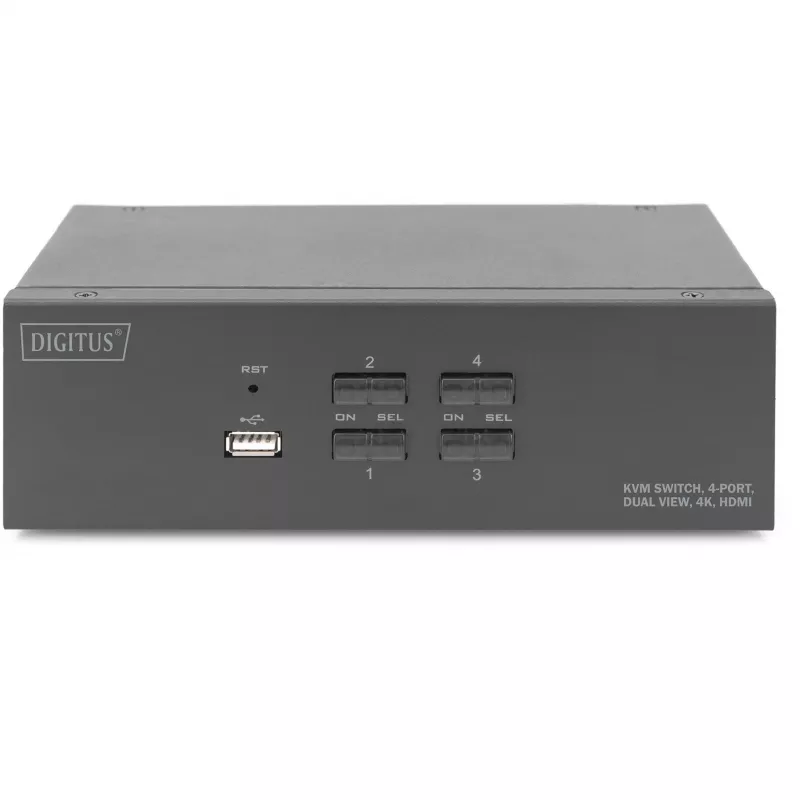

KVM switch Digitus DS-12883 4 porte dual display 4K HDMI USB

The DIGITUS DS-12883 4-Port KVM Switch Dual Display (HDMI) lets you operate four computers with dual-monitor setups using a single USB keyboard and mouse. The unit supports up to 4K UHD (3840 x 2160) at 30 Hz with FreeSync, provides two HDMI outputs for dual displays, audio connections for microphone and speaker, an integrated USB-A port for additional peripherals, and status LEDs on the front panel. The sturdy metal housing and plug-and-play operation eliminate frequent cable replugging and do not require driver installation.

Advantages

The KVM switch enables seamless switching between four 4K-capable systems via a front-panel switch or keyboard hotkey, saving desk space and reducing cable handling. Built-in USB ports let you share a keyboard and mouse as well as external storage devices between active systems. Audio routing supports microphone and speaker connections with formats including Dolby TrueHD and DTS HD Master Audio. The device is compact, has a robust metal enclosure, and requires no additional software for operation.

Suitable for

• Offices managing multiple workstations with dual monitors
• IT administrators and control rooms requiring quick access to several PCs
• Multimedia workstations that need 4K output and audio switching
• Home offices or shared desks where one keyboard/mouse controls multiple systems

Key specifications

• Model: DIGITUS DS-12883
• Controlled computers: 4 (dual display)
• Video interface: HDMI, up to 3840 x 2160 @ 30 Hz, FreeSync support
• Keyboard / mouse: USB
• Audio: microphone and speaker connections; Dolby TrueHD and DTS HD Master Audio compatible
• Front USB: USB-A port for peripherals (shared with active PC)
• Housing: metal
• Power: AC 100–240 V; consumption 2.7 W; DC plug size 5.5 × 2.1 mm
• Weight: 0.92 kg
• Color: Black

How to use

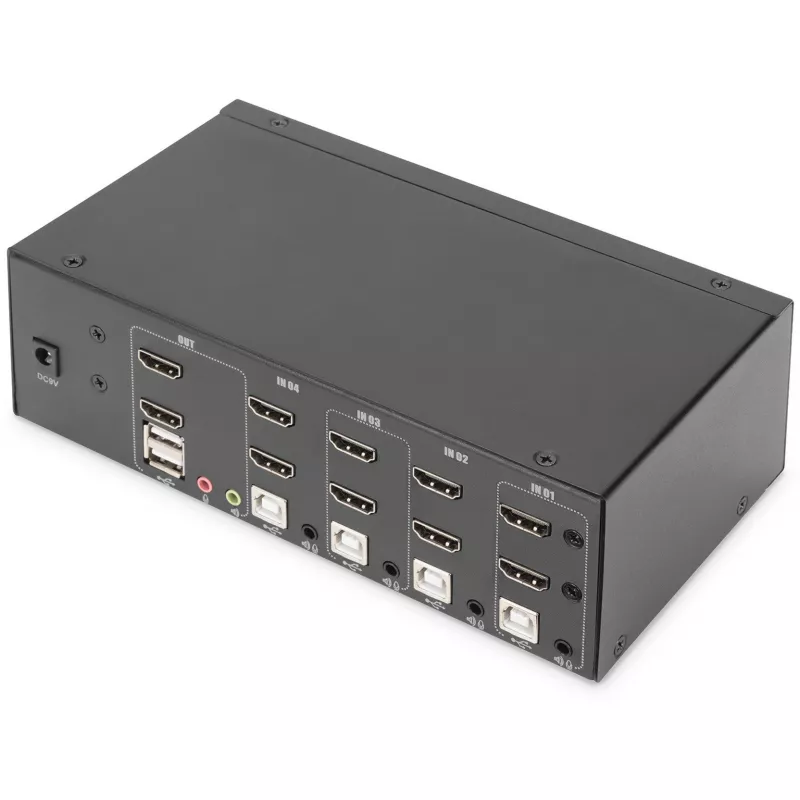

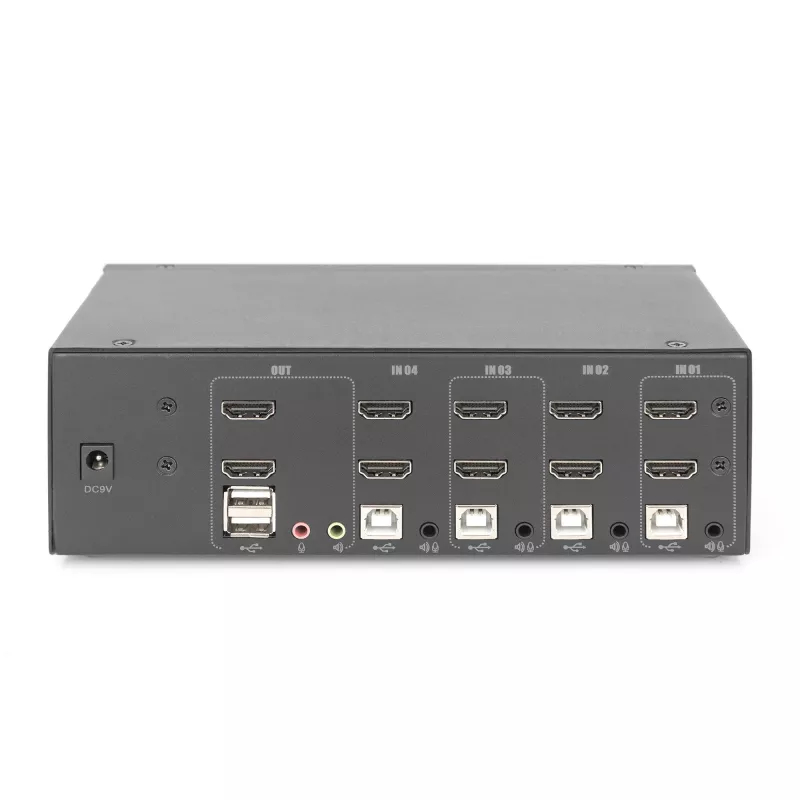

Connect each of the four computers to the KVM switch using the provided HDMI and USB cables for video and keyboard/mouse signals, and connect speakers/microphone if audio switching is required. Plug two monitors into the HDMI outputs on the switch's rear panel for dual-display output. Use the front-panel button or configure the keyboard hotkey combination to toggle control between connected systems. Insert external USB devices into the front USB-A port to make them available to the currently active computer. No driver installation is required; the switch operates via BIOS-level hardware connections (Plug and Play).

Recommendations

For stable 4K output, use high-quality HDMI cables rated for 4K and ensure source graphics cards support 3840 x 2160 @ 30 Hz. Place the KVM switch on a stable surface with adequate ventilation and connect power to the AC input. When sharing external drives, safely eject the device from the active computer before switching to avoid data loss.
