KWB misuratore di umidità 012100 digitale LCD tipo penna per legno e materiali da costruzione

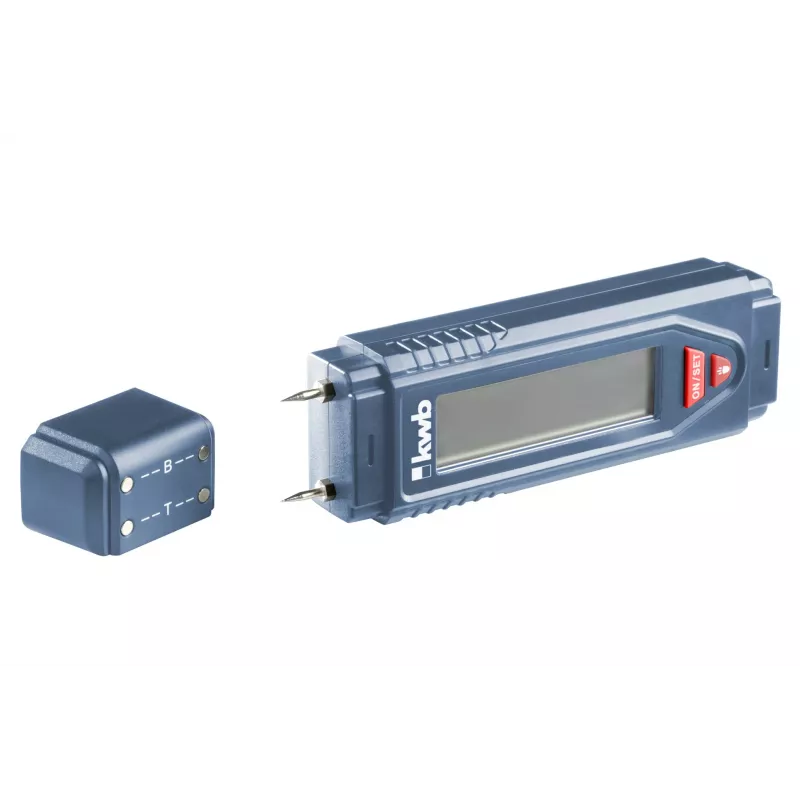

The KWB 012100 Baufeuchte-Messgerät is a digital pin-type moisture meter that measures moisture content in wood and common building materials using resistance measurement. It provides direct readings on a clear LCD display and includes a data hold function to freeze values for easy reading.

Highlights

• Pin-type resistance measurement for wood and building materials
• Digital LCD display with data hold function
• Automatic shut-off after approximately 15 minutes
• Integrated replaceable electrodes, 8 mm length
• Powered by one 9 V block battery (included)

In daily use

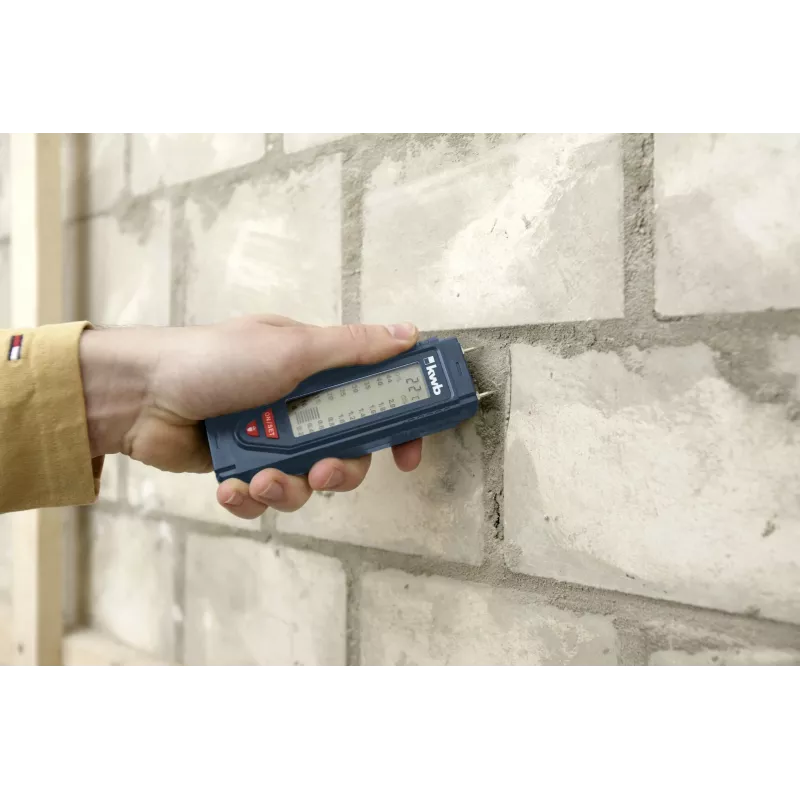

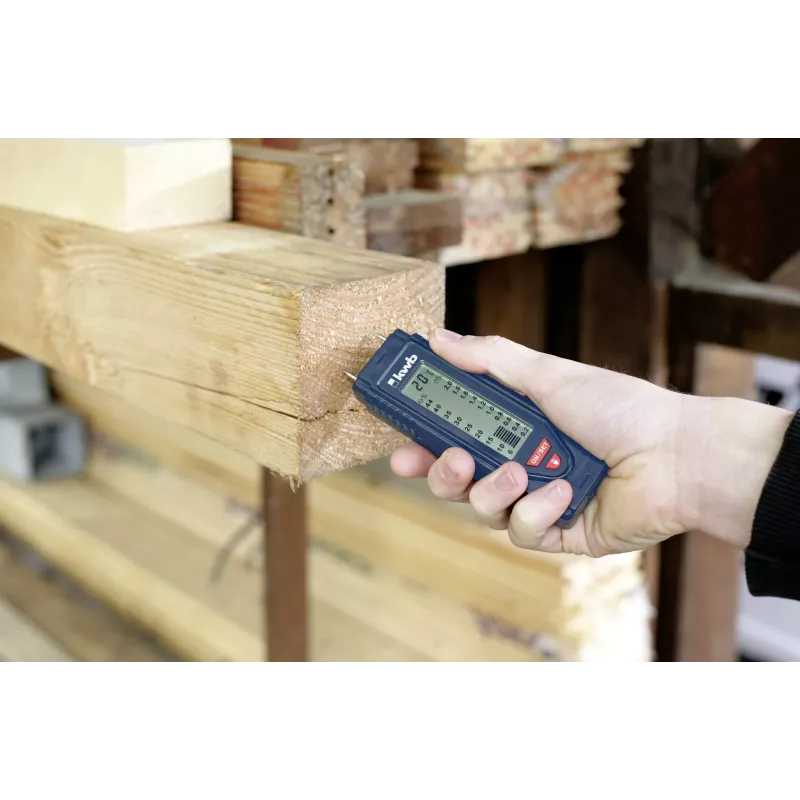

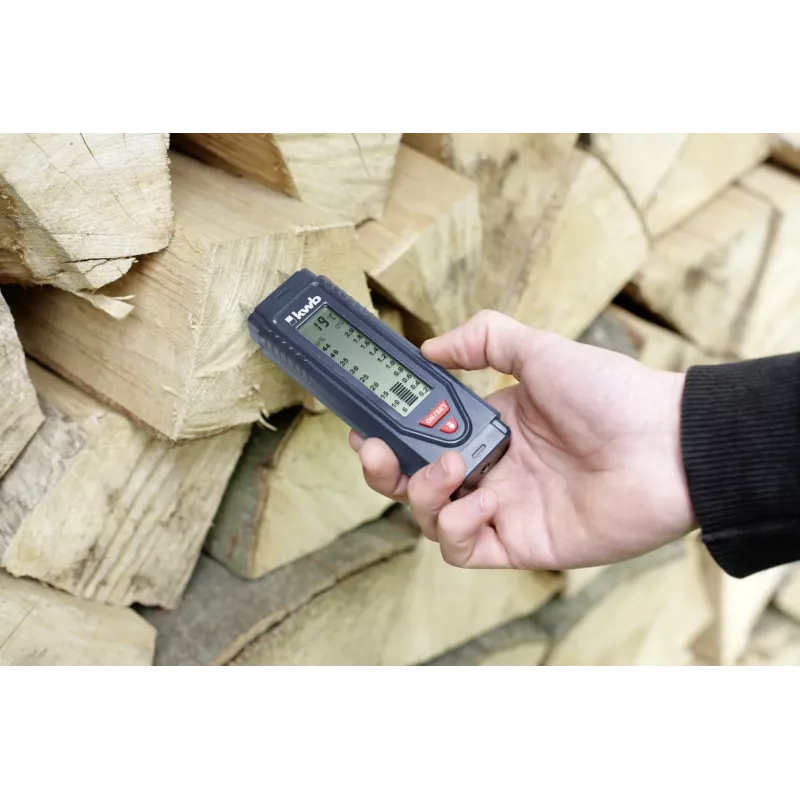

Insert the integrated pins into the material to be tested. The meter measures the electrical resistance between the pins and converts it to a moisture percentage shown on the display. Use the data hold function to freeze the reading. The device switches off automatically after about 15 minutes to save battery power.

Full specifications

• Measurement principle: Resistance measurement
• Measurement range (wood): 6 – 42 %
• Measurement range (building materials): 0.2 – 2.0 %
• Accuracy (wood): ±1 % (6–30 %), ±2 % (30–42 %)
• Accuracy (building materials): ±0.1 % (0.2–1.0 %), ±0.2 % (1.0–2.0 %)
• Display type: Digital LCD
• Power source: 1x 9 V block battery (6F22)
• Automatic shut-off: Yes (after approx. 15 minutes)
• Operating temperature: 0 °C to 40 °C
• Storage temperature: -10 °C to 50 °C
• Electrode type: Integrated, replaceable
• Electrode length: Approx. 8 mm
• Low battery indicator: Yes
• Data hold function: Yes
• Suitable materials: Wood, concrete, plaster, brick, mortar
• Housing material: ABS plastic
• Included accessories: 9 V battery, protective cap

Final note

For reliable moisture measurement in wood and building materials, the KWB 012100 offers a practical solution with essential features.
