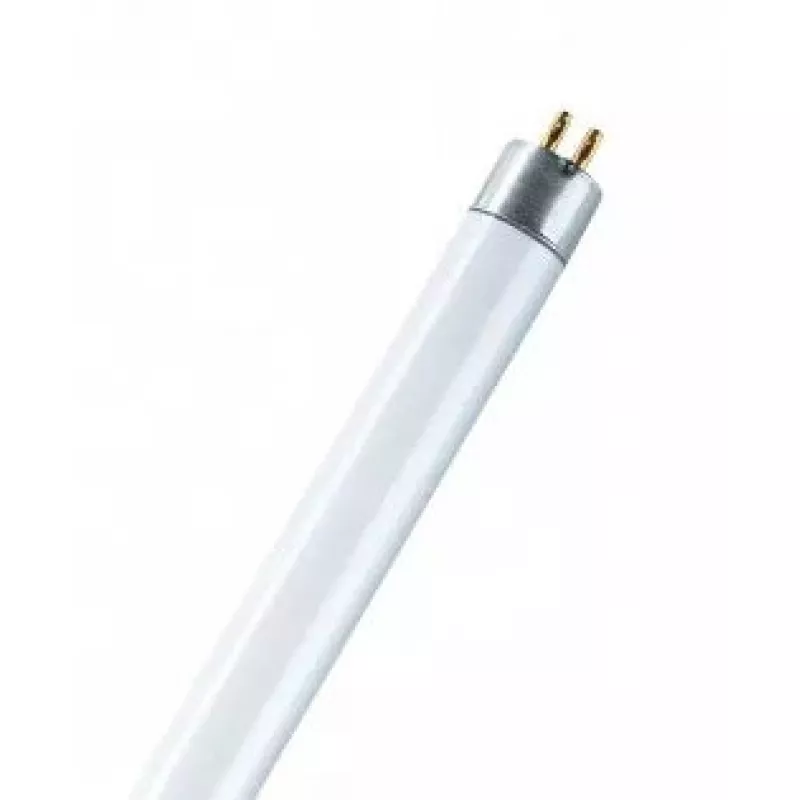

Lampada fluorescente Osram LUMILUX T5 HE 14 W G5 bianco caldo

Osram LUMILUX T5 HE fluorescent bulb 14 W G5 Warm white provides warm white illumination with a luminous flux of 1200 lm and a colour temperature of 2700 K. The 14 W T5 lamp uses a G5 cap and is designed for a variety of indoor applications; when used with suitable outdoor luminaires it can also be applied outdoors. The lamp delivers good color rendering (CRI ≈ 80) and a long service life of up to 24,000 hours when operated with a compatible QUICKTRONIC electronic control gear.

Advantages

The lamp offers good economy and efficiency with luminous efficacy up to 104 lm/W and very good lumen maintenance (90 % over the rated lifetime). It is up to 20% more economical than LUMILUX T8 equivalents and up to 50% smaller in volume than comparable T8 lamps. The product supports dimming and belongs to color rendering group 1B (R: 80–89), ensuring acceptable colour accuracy for most general lighting needs.

Suitable for

• Public buildings
• Offices
• Shops, supermarkets and department stores
• Industry
• Outdoor applications when used in suitable luminaires

Key specifications

• Brand: Ledvance (Osram LUMILUX T5 HE)
• Model / MPN / EAN: 4008321916020
• Bulb power: 14 W
• Cap / fitting: G5
• Luminous flux: 1200 lm
• Colour temperature: 2700 K (Warm white)
• Luminous efficacy: up to 104 lm/W
• Rated lifetime: up to 24,000 h (with QUICKTRONIC ECG)
• Lumen maintenance: 90 %
• Color Rendering Index (CRI): group 1B (R: 80–89)
• Dimmable: yes

How to use

Install the 14 W T5 lamp into a fixture compatible with G5 fittings following the luminaire manufacturer’s instructions. For optimal lifetime and performance use with a QUICKTRONIC electronic control gear; ensure the lamp is handled carefully to avoid damage. Observe all safety and installation guidelines provided by the luminaire and control gear manufacturers and switch off power before replacing the lamp.

Recommendations

Use the lamp in fixtures suitable for T5 tubes and G5 caps; for outdoor installations choose luminaires rated for outdoor use. For longest life and stable light output pair the lamp with a compatible QUICKTRONIC ECG and avoid frequent on/off cycling.
