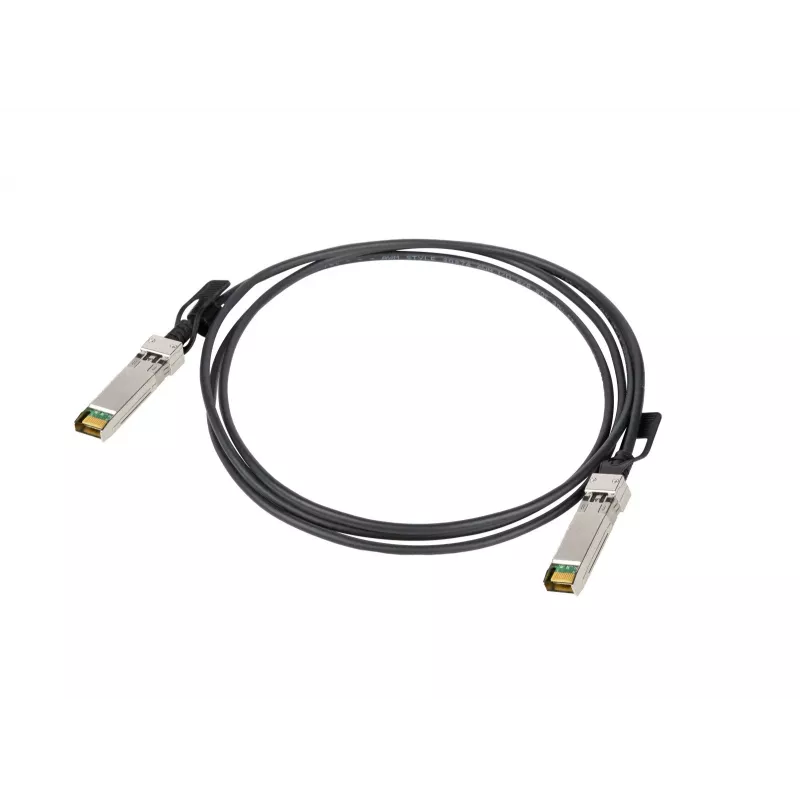

Lanberg cavo SFP+ Direct Attach 2m nero 10Gbps rame

This Lanberg SFP+ Direct Attach Cable delivers a ready-to-use 10 Gigabit link in a single, low-latency copper assembly. Unlike optical transceivers that require separate modules and fibre, it integrates both SFP+ connectors and twinax copper cable into one passive component, cutting cost and power draw while keeping installation simple.

Highlights

• 10 Gbps data rate for 10 Gigabit Ethernet and high-speed interconnects
• 2-metre length suits top-of-rack and adjacent-rack links
• Passive twinax design consumes less than 0.1 W
• Hot-swappable SFP+ connectors with MSA-compliant footprint
• Black PVC jacket, 30 AWG conductors, 100 Ohm impedance

In daily use

Plug the cable into any MSA-compliant SFP+ port on switches, servers, or storage systems and the link comes up without configuration. The passive copper construction introduces no signal regeneration, so latency stays minimal and no additional power budget is required. The 2 m length is practical for patching between devices in the same or neighbouring rack units.

Full specifications

• Connector 1: SFP+
• Connector 2: SFP+
• Data transfer rate: 10 Gbps
• Cable length: 2 m
• Cable material: Copper
• Cable type: Passive Twinax
• Colour: Black
• AWG: 30 AWG
• Impedance: 100 Ohm
• Jacket material: PVC
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Power consumption: < 0.1 W
• Hot-swappable: Yes
• Protocol support: IEEE 802.3ae 10GBASE-CR
• Compatibility: MSA Compliant SFP+ ports

Final note

A cost-effective, low-power 10G copper link for short-reach data centre and enterprise connections.
