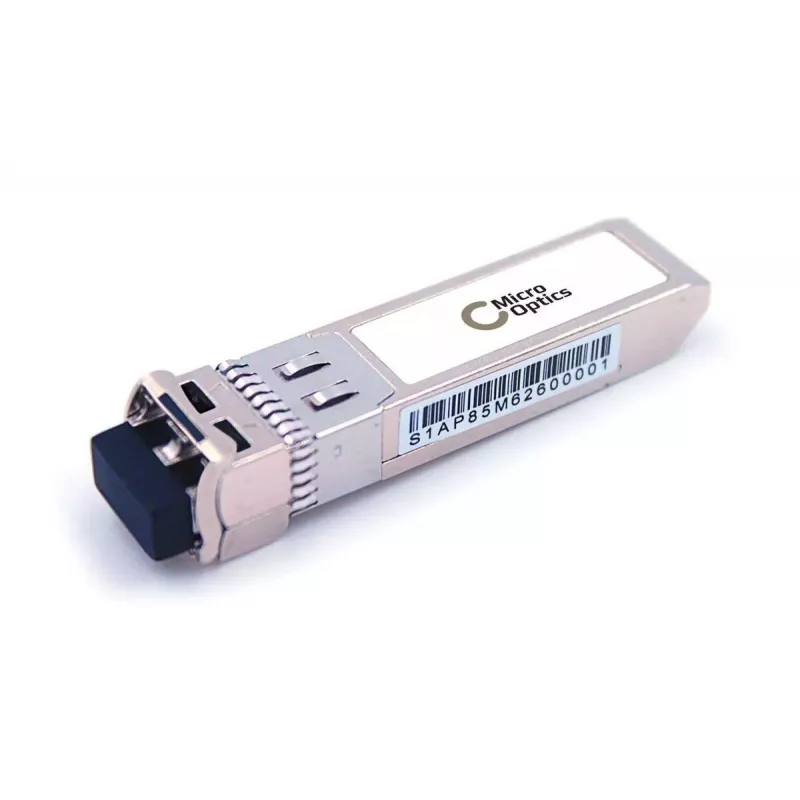

Lanview MO-455883-B21 modulo ricetrasmettitore di rete fibra ottica 10000 Mbit/s SFP+ 850 nm

The Lanview MO-455883-B21 is an SFP+ transceiver module compatible with HPE BladeSystem c-Class. It supports data rates up to 10,000 Mbit/s and operates at a wavelength of 850 nm. The compact module (20 mm x 56 mm x 15 mm) is intended for short-range multimode fiber connections and supports link lengths up to 300 meters.

Advantages

The module provides a standardized SFP+ form factor for easy hot-plug installation into compatible HPE and other SFP+ ports. With support for 10 Gbit/s throughput and a common 850 nm wavelength, it offers interoperability with standard multimode fibre links and predictable short-reach performance. Its small dimensions reduce space use in dense blade or switch environments.

Suitable for

• 10 Gbit/s short-range connections over multimode fibre
• HPE BladeSystem c-Class and other SFP+ compatible switches
• Data centre uplinks, server-to-switch links, and SAN interconnects within 300 m

Key specifications

• Model: Lanview MO-455883-B21
• Form factor: SFP+
• Data rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 850 nm
• Maximum link length: up to 300 m (multimode fibre)
• Compatibility: HPE BladeSystem c-Class compatible
• Dimensions: 20 mm x 56 mm x 15 mm
• MPN: MO-455883-B21, EAN: 5715063038123

How to use

Ensure the target port supports SFP+ modules and that the connected fibre cable matches multimode specifications for 850 nm operation. With the host equipment powered on or in a state that supports hot-plug, insert the transceiver into the SFP+ slot until it latches. Connect the appropriate LC multimode fibre connector and verify link status via the host device. Configure speed and duplex settings on the switch or server as required by your network setup.

Recommendations

Use OM3/OM4 multimode fibre for reliable performance up to the specified 300 m and follow manufacturer guidelines for electrostatic discharge (ESD) protection when handling the transceiver. Verify firmware or compatibility restrictions on OEM equipment before deployment.
