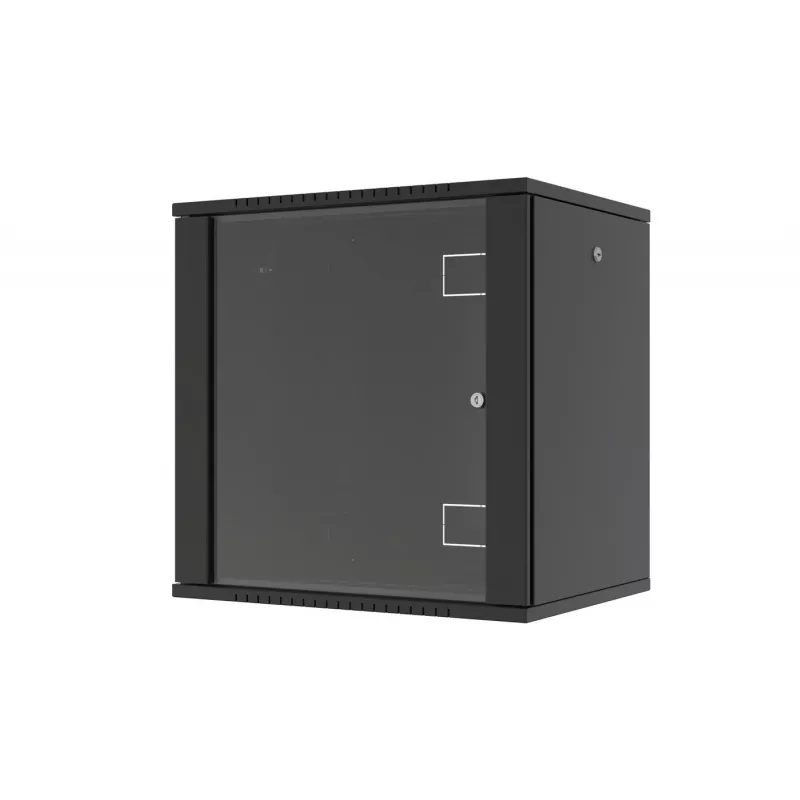

LANVIEW Quick Assembly Flat Pack 19 armadio a parete 9U nero

The LANVIEW Quick Assembly Flat Pack 19 delivers exceptional strength in a compact 9U format, supporting up to 60 kg of critical network hardware. Its rapid-assembly design transforms flat-packed logistics into a fully operational wall-mount cabinet in minutes.

Overview

Engineered for modern IT environments, this 19-inch cabinet is the ideal choice for housing switches, patch panels, and small servers in server rooms, workshops, or retail back offices. The cold-rolled steel construction provides a rigid frame that maintains integrity under full load, while the space-saving wall-mount design keeps valuable floor space clear.

What stands out

• Quick Assembly Flat Pack – ships flat to reduce transport volume and assembles with minimal tools.
• 9U height – accommodates a wide range of 19-inch equipment in a tidy, accessible enclosure.
• Tempered glass front door with lock – offers at-a-glance status monitoring while securing your equipment.
• Removable lockable side panels – simplify cable installation and provide tamper-resistant access.
• Brush strip cable entries top and bottom – keep cabling organised and maintain a clean appearance.
• Fan cutouts on top – allow passive or active ventilation for improved airflow.

Technical details

• Rack standard: 19-inch, 9U
• Mounting: Wall mount
• Material: Cold rolled steel, black RAL 9005
• External dimensions (W×H×D): 600 × 505 × 450 mm
• Internal usable depth: approximately 380 mm
• Static load capacity: 60 kg
• Protection rating: IP20
• Included: mounting hardware, cage nuts, keys
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 Parts 1 and 7
• Ventilation: passive with fan cutouts

Our verdict

For installations that demand security, capacity and quick deployment, the LANVIEW Quick Assembly Flat Pack 19 strikes the perfect balance. It’s a rugged, professional-grade wall-mount cabinet that doesn’t compromise on features or ease of assembly.
