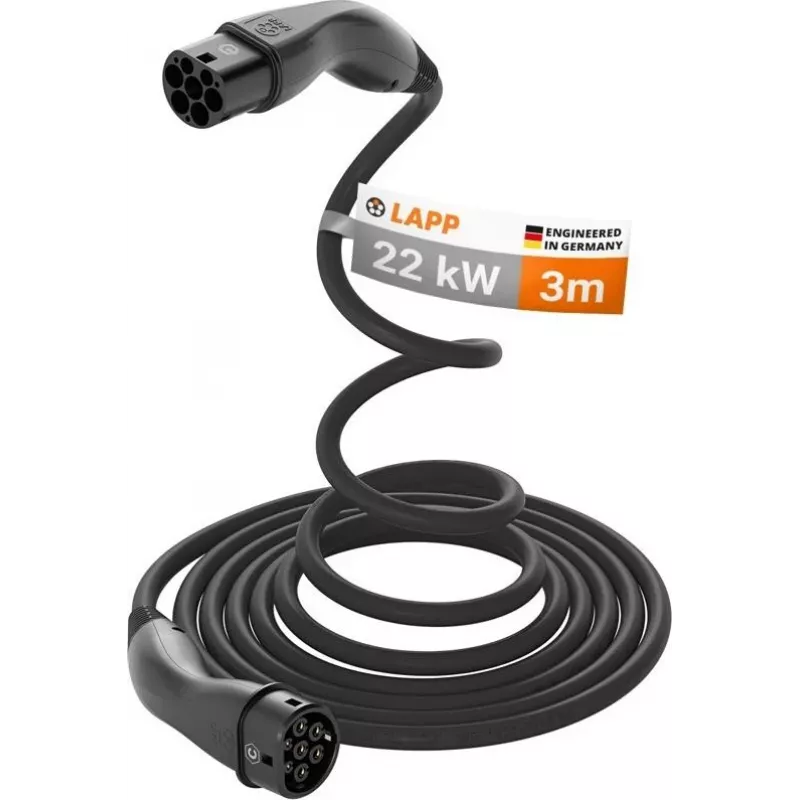

LAPP MOBILITY cavo di ricarica EV Tipo 2 autoavvolgente, 22 kW, 3 m, nero (75749)

This LAPP MOBILITY charging cable stands out with its self-retracting reel, keeping the 3 m cable tidy and tangle-free between charges. It delivers up to 22 kW AC power via Type 2 connectors on both ends, suitable for most European EVs and charging stations.

Highlights

• Self-retracting cable reel for neat storage
• Type 2 to Type 2 connectors (IEC 62196-2)
• Supports 3-phase charging up to 22 kW / 32 A
• Durable black TPE cable, UV and oil resistant

In daily use

The automatic reel prevents the cable from dragging on the ground, reducing wear and keeping your charging area clean. With an operating temperature range of -30°C to +50°C, it works reliably in harsh weather. The cable is 3 m long, ideal for home or semi-public charging spots.

Full specifications

• Connector 1: Type 2
• Connector 2: Type 2
• Maximum charging power: 22 kW
• Maximum current: 32 A
• Number of phases: 3
• Operating voltage: 400 V AC
• Cable length: 3 m
• Cable colour: Black
• Cable material: TPE
• Protection class (connected): IP44
• Operating temperature range: -30°C to +50°C
• UV resistance: Yes
• Oil resistance: Yes

Final note

Self-retracting design keeps your charging setup organized and ready for the next session.
