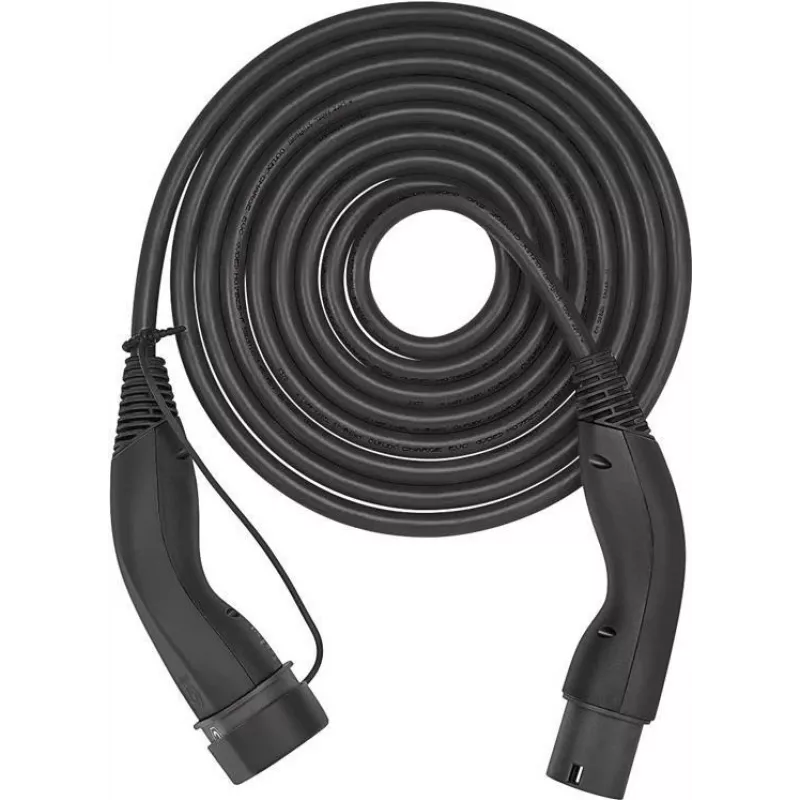

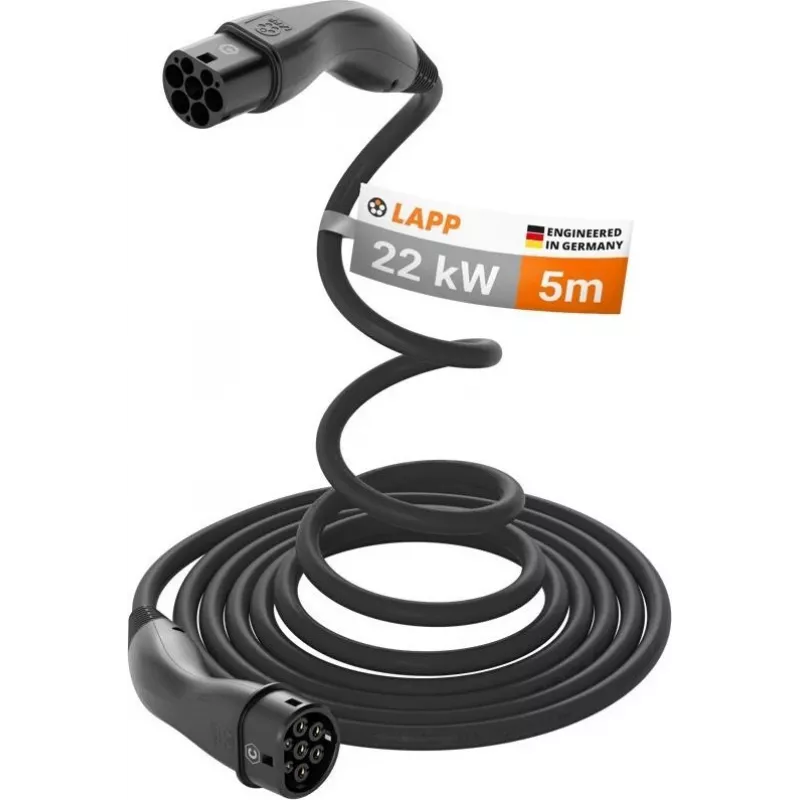

LAPP MOBILITY HELIX® cavo di ricarica EV Type 2, 22 kW, 5 m, nero 61795

Charge your electric vehicle at up to 22 kW with the LAPP MOBILITY HELIX® Type 2 charging cable. Its coiled TPU jacket stretches to 5 metres when needed and snaps back for tidy storage, making it ideal for home wallboxes, workplace chargers, and public AC stations.

Overview

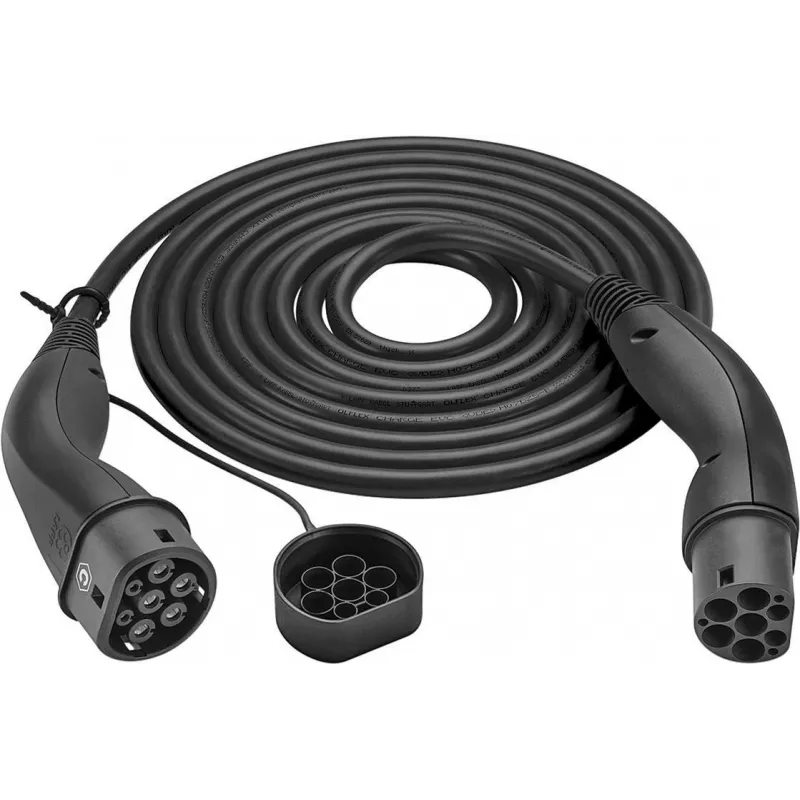

The HELIX® cable features Type 2 connectors on both ends, fully compliant with IEC 62196-2. It supports three-phase charging at 400 V and 32 A, delivering a maximum of 22 kW to any compatible EV. The black TPU jacket is highly flexible, abrasion-resistant, and remains supple even in cold weather, while the IP44 rating protects the connectors when mated.

What stands out

• Coiled design extends to 5 m and retracts for compact storage

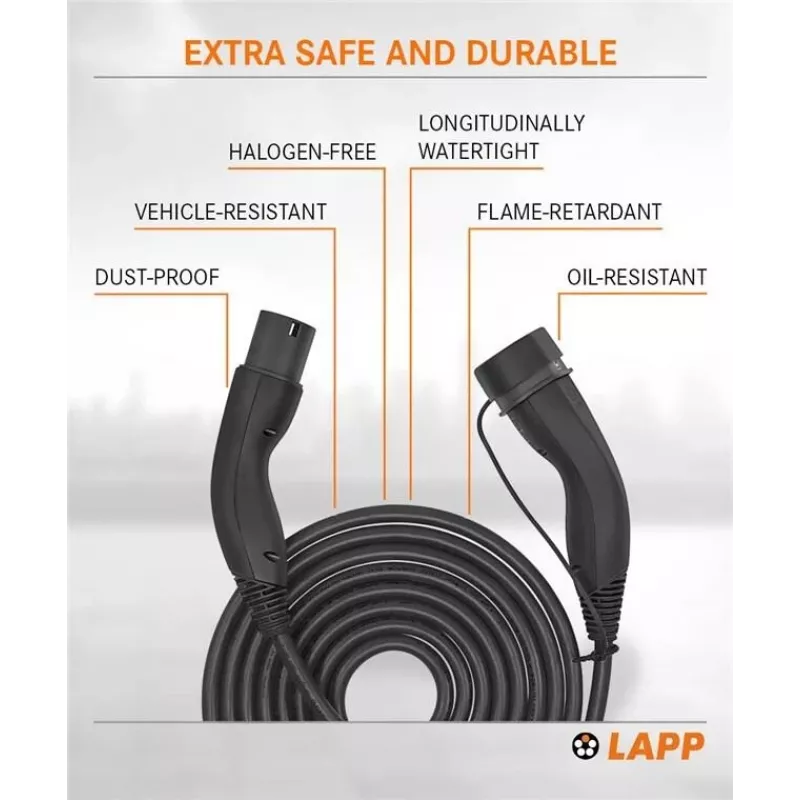

• Robust TPU jacket withstands daily use and harsh conditions
• IP44 protection when connected, suitable for outdoor charging
• CE and RoHS certified for safety and environmental compliance

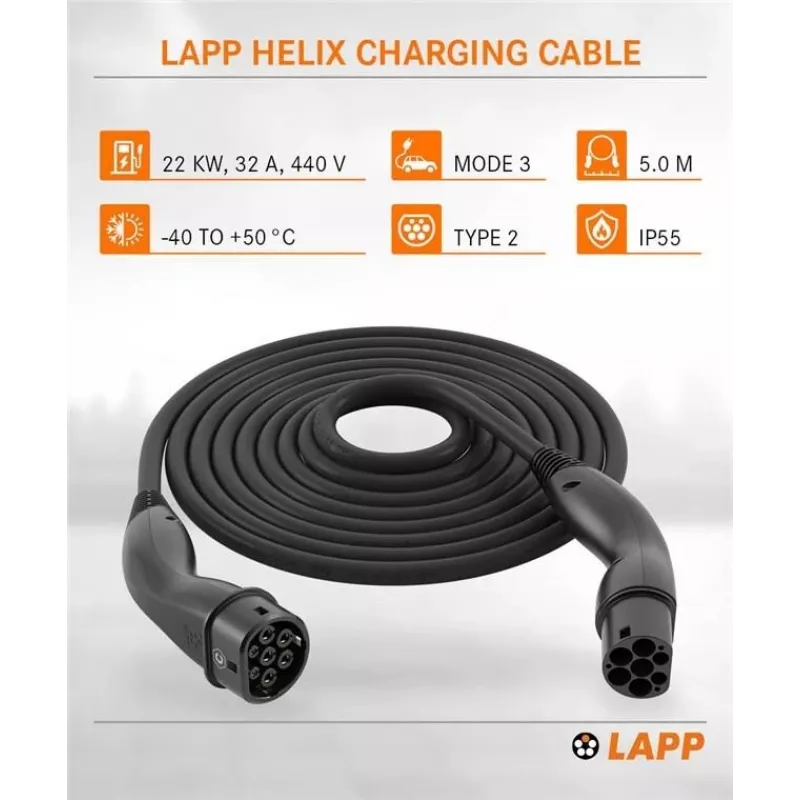

Technical details

• Connector 1: Type 2 (IEC 62196-2) – vehicle side
• Connector 2: Type 2 (IEC 62196-2) – charging station side
• Maximum charging power: 22 kW (3-phase)
• Rated voltage: 400 V AC
• Maximum current: 32 A per phase
• Cable length: 5 m (coiled)
• Cable colour: black
• Operating temperature: -30 °C to +50 °C
• Certifications: CE, RoHS

Our verdict

The LAPP MOBILITY HELIX® is a premium EV charging cable that combines high power delivery with exceptional durability and convenience. Its self-retracting coil keeps your garage or boot organised, while the rugged construction ensures reliable performance for years.
