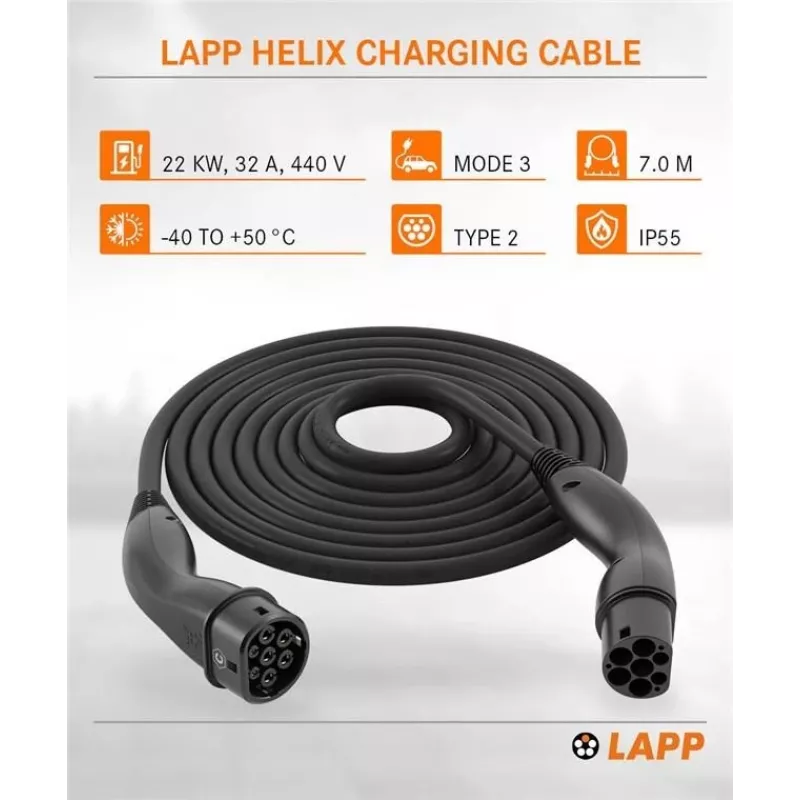

Lapp Mobility Type 2 Helix Cavo di ricarica 22 kW 7 m nero

Charging an electric vehicle with a standard cable can be messy and unsafe, especially when the cable lies on the ground where it can be driven over or cause tripping. The Lapp Mobility Type 2 Helix Charging Cable solves this by using a coiled design that keeps the cable off the ground, reducing wear and improving safety at your charging station.

Who is it for

This cable is for EV owners and charging station operators who need a durable, high-power Type 2 to Type 2 connection. It supports three-phase charging up to 22 kW, making it suitable for both home wallboxes and public AC charging points.

Main features

• Coiled (helix) cable design keeps the cable tidy and off the ground
• Supports 3-phase charging at up to 22 kW and 32 A
• 7 m length when fully extended, with a compact coiled resting length

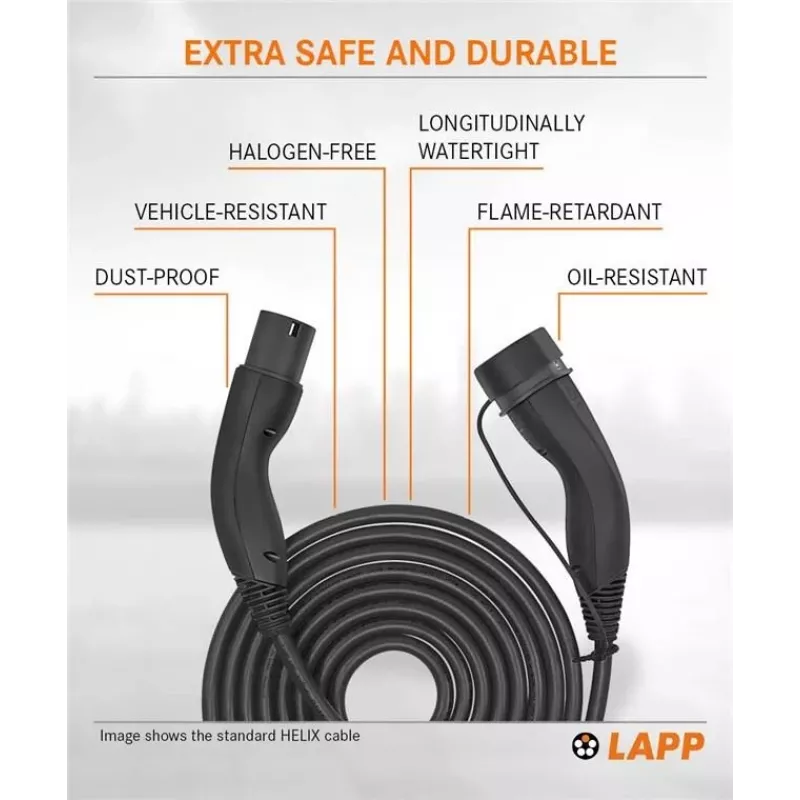

• Black TPE-U outer sheath is UV-resistant and flame retardant
• Type 2 connectors on both ends compliant with IEC 62196-2

Specifications

• Connector 1: Type 2 (IEC 62196-2)
• Connector 2: Type 2 (IEC 62196-2)
• Maximum charging power: 22 kW
• Maximum current: 32 A
• Number of phases: 3
• Rated voltage: 400 V AC
• Cable length: 7 m
• Cable colour: Black
• Outer sheath material: TPE-U
• Conductor material: Copper
• Protection class: IP44 (when connected)
• Operating temperature range: -30 °C to +50 °C
• UV resistance: Yes
• Flame retardant: Yes
• Certifications: CE, TÜV

Tips

When installing, ensure the coiled cable has enough room to extend without tension. The helix design naturally retracts, so avoid pulling it beyond its full length. For outdoor use, the IP44 rating applies only when both connectors are properly plugged in.
