Laserliner FixView sonda endoscopica per videocamera diametro 4 mm lunghezza 400 mm illuminazione LED messa a fuoco manuale (082.209A)

With a 4 mm diameter and 400 mm semi-rigid cable, this Laserliner FixView endoscope probe reaches into tight spaces. Four LEDs illuminate the inspection area, and the manual focus adjusts from 10 to 60 mm for sharp images.

Overview

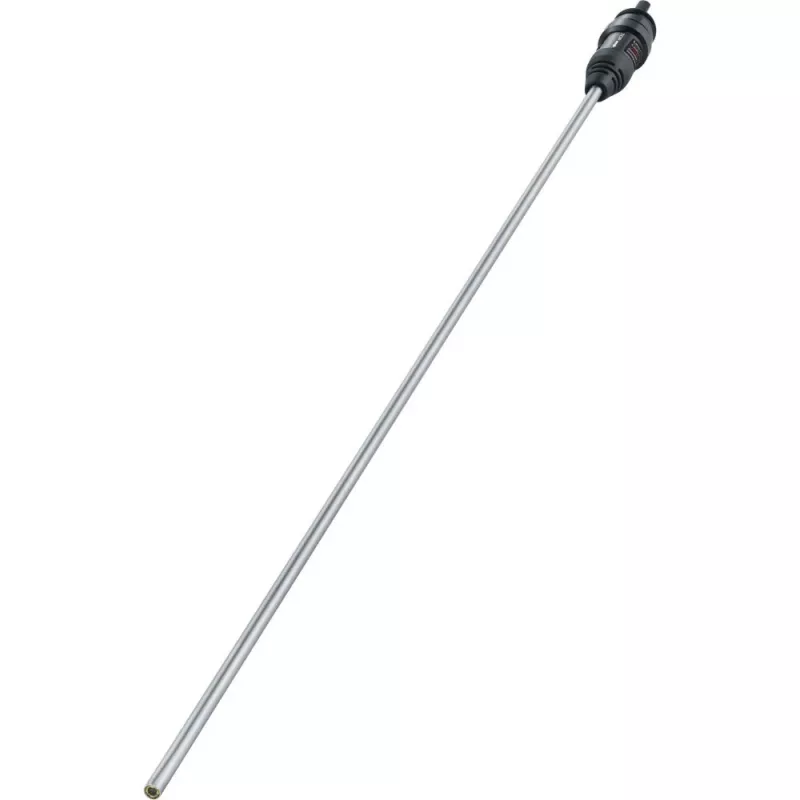

The Laserliner FixView Camera Probe is a replacement or accessory probe for compatible Laserliner video endoscopes. It features a stainless steel camera head with IP68 waterproof rating, suitable for wet or dusty environments. The probe connects via a proprietary Laserliner connector.

What stands out

• Ultra-slim 4 mm diameter for narrow openings
• 400 mm semi-rigid cable holds its shape for precise positioning
• Four integrated LEDs provide bright, even illumination
• Manual focus from 10 to 60 mm for close-up detail

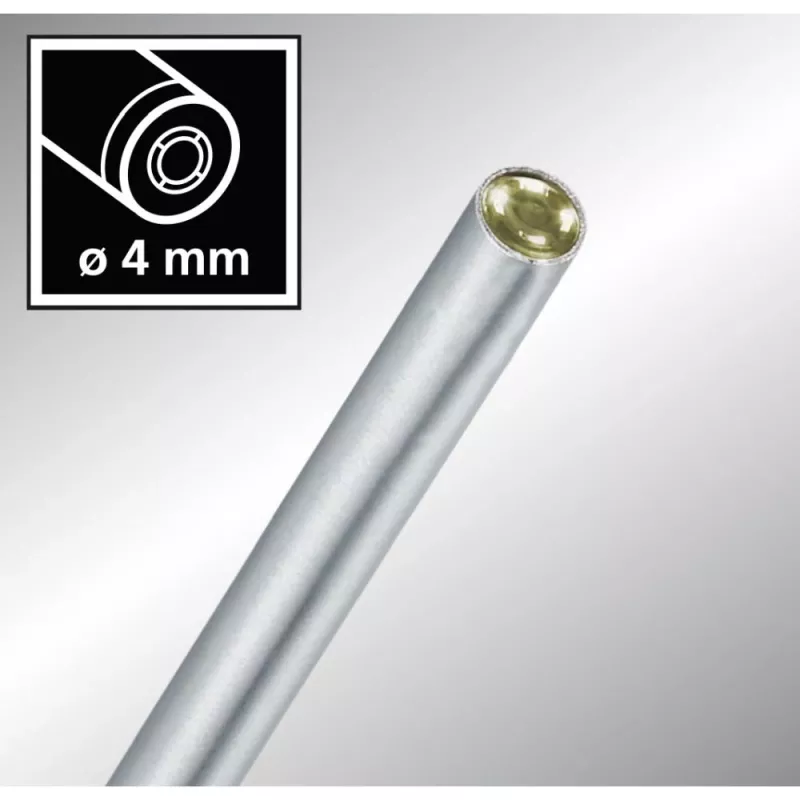

• Stainless steel camera head rated IP68 waterproof

Technical details

• Probe diameter: 4 mm
• Probe length: 400 mm
• Illumination: 4 LEDs
• Focus: Manual, adjustable
• Depth of field: 10 - 60 mm
• Field of view: 60°
• Waterproof rating: IP68 (camera head)
• Camera head material: Stainless steel
• Cable flexibility: Semi-rigid
• Compatibility: Laserliner VideoScope Master, VideoScope XXL, VideoControl-Master, VideoControl-Live

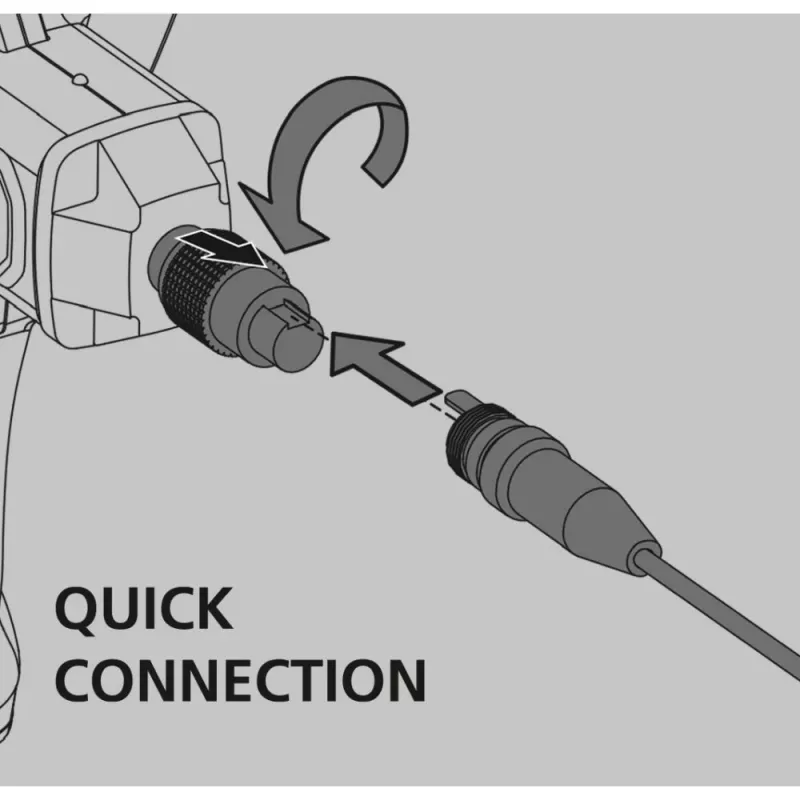

• Connector type: Proprietary Laserliner
• Operating temperature: 0°C to 45°C
• Storage temperature: -10°C to 60°C

Our verdict

A precise and durable inspection probe for Laserliner endoscopes, ideal for automotive, plumbing, and industrial diagnostics.
