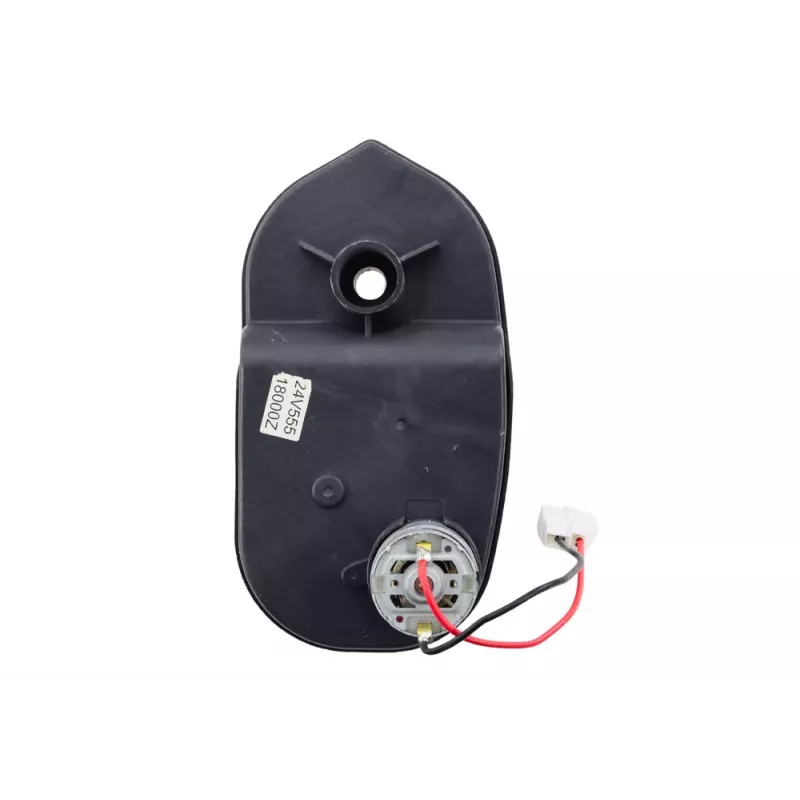

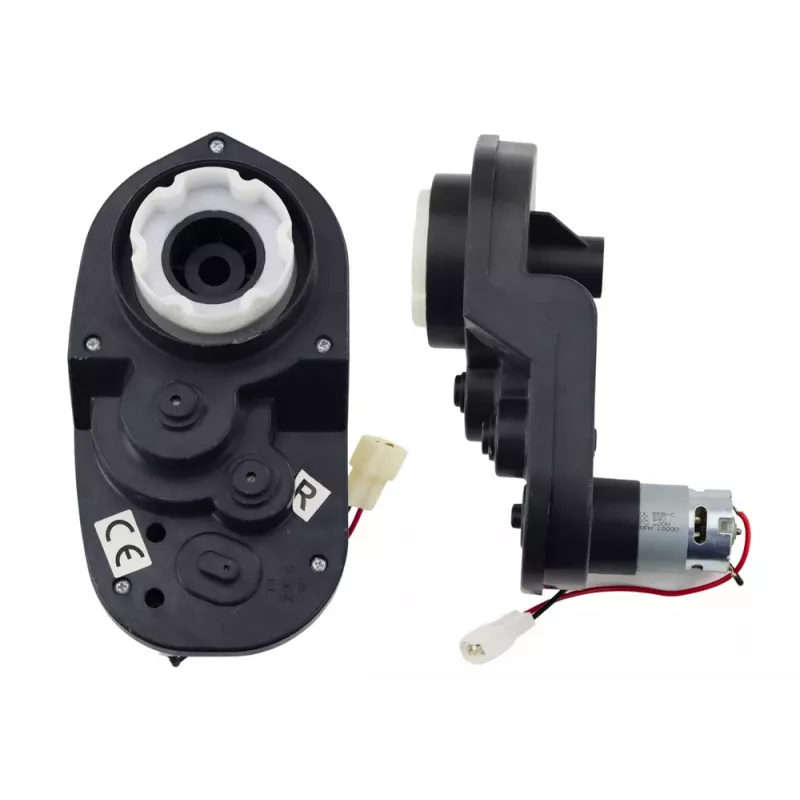

LEAN CARS A730-2 motore di azionamento RS555 24V

The LEAN CARS A730-2 24V RS555 Drive Motor is a high-performance brushed DC motor designed for electric scooters, robotics, DIY projects, and pumps. With a nominal speed of 3000 RPM and power output of 100W, this motor delivers reliable and efficient operation. Its compact size and reversible rotation make it versatile for various applications.

Advantages

Robust steel housing ensures durability, while sleeve bearings provide smooth operation. The motor features a 3.175mm shaft diameter and M3 mounting holes with 25mm spacing for easy integration. Operating at 24V DC, it offers consistent torque and speed control.

Suitable for

• Electric scooters and go-karts
• Robotics and automation projects
• DIY motorized devices
• Small pumps and fans

Key specifications

• Motor Type: Brushed DC Motor
• Model Series: RS555
• Operating Voltage: 24V DC
• Nominal Speed: 3000 RPM (at 24V)
• Nominal Power: 100 W
• Shaft Diameter: 3.175 mm (1/8 inch)
• Shaft Length: 12 mm
• Motor Body Diameter: 37 mm
• Motor Body Length: 57 mm
• Overall Length (incl. shaft): 69 mm
• Mounting Holes: 2x M3
• Mounting Hole Spacing: 25 mm
• Commutation: Brush
• Direction of Rotation: Reversible
• Housing Material: Steel
• Bearing Type: Sleeve Bearings

Recommendations

Ensure proper voltage and current supply. Use appropriate connectors and mounting hardware. For optimal performance, pair with a compatible motor controller.
