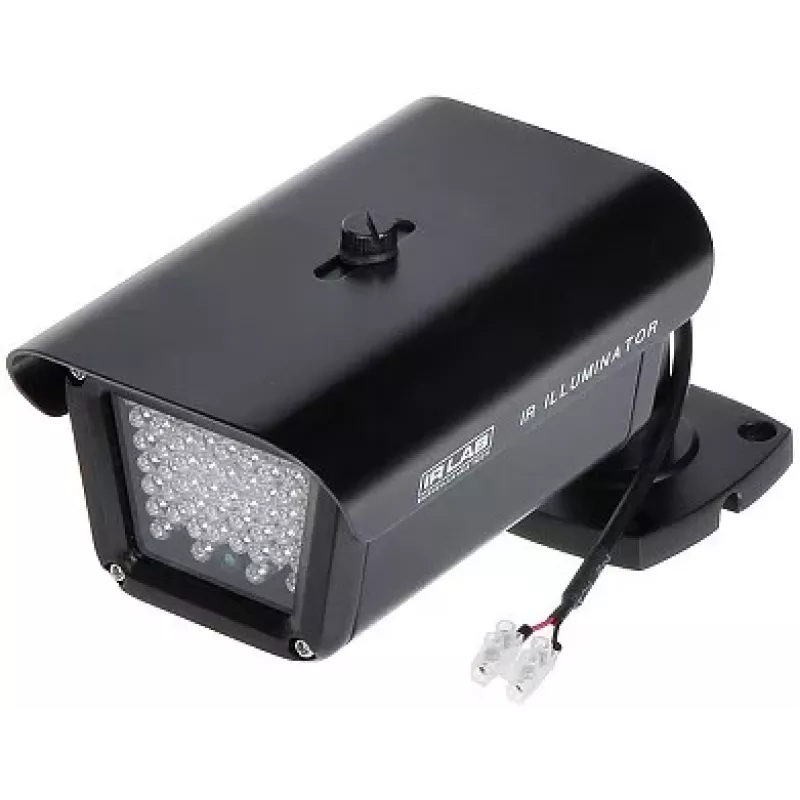

LED LENSER IR LED proiettore faretto 45M LIR-CA32

The LED LENSER LIR-CA32 is a high-performance IR LED projector illuminator designed to enhance night vision capabilities for CCTV cameras. With a 45-meter illumination range and 850nm wavelength, it provides clear, low-glow infrared lighting for both indoor and outdoor surveillance applications.

Advantages

Equipped with 6 high-power IR LEDs and a 45° beam angle, the LIR-CA32 delivers uniform infrared illumination. Its built-in CDS sensor enables automatic activation in low-light conditions (<10 Lux), ensuring seamless operation. The IP66-rated aluminum alloy housing offers durability and weather resistance, making it suitable for harsh environments. With a long LED lifespan of 50,000 hours and low power consumption (12W), it is a cost-effective and reliable solution.

Suitable for

• Enhancing night vision for CCTV cameras in security systems
• Outdoor surveillance in parking lots, perimeters, and building entrances
• Indoor monitoring in warehouses, corridors, and dark areas
• Compatible with all CCTV cameras featuring night vision

Key specifications

• Illumination Range: 45 meters
• LED Wavelength: 850nm (Near-Infrared)
• Number of IR LEDs: 6
• Beam Angle: 45°
• Power Input: DC 12V
• Power Consumption: 12W
• Automatic Activation: Built-in CDS Sensor (<10 Lux)
• Ingress Protection: IP66
• Housing Material: Aluminum Alloy
• Operating Temperature: -20°C to +50°C
• LED Lifespan: 50,000 hours
• Mounting: Adjustable Wall/Ceiling Bracket
• Power Connector: DC Jack (2.1mm)
• Certifications: CE, FCC

Recommendations

For optimal performance, pair with a compatible 12V DC power supply (not included). Ensure proper mounting and alignment for maximum coverage. Suitable for both indoor and outdoor use.
