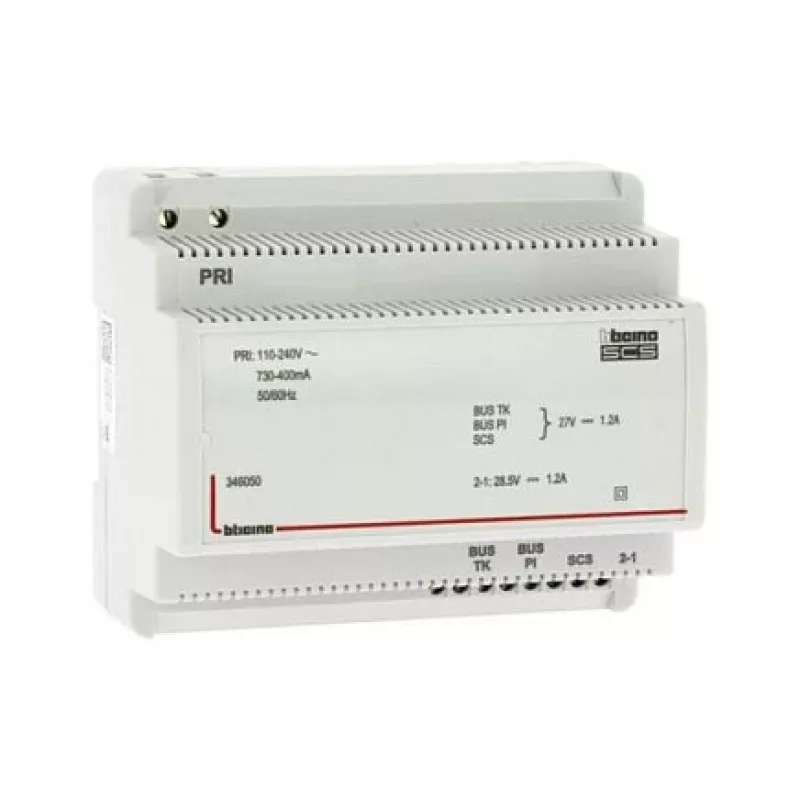

Legrand BTicino 346050 alimentatore per guida DIN con adattatore video – 27V DC 600mA, 6TE

Installers working on BTicino 2-wire SCS building automation systems will find the Legrand BTicino 346050 power supply unit an essential component for distribution boards. This DIN rail module delivers a stable 27V DC bus voltage at 600mA, while its integrated video adapter supports door entry video stations and internal monitors. Ideal for apartment blocks, offices, and commercial spaces, it simplifies wiring and saves cabinet space by combining two functions in a 6-module unit.

Key specifications

• Compatible with BTicino 2-wire (SCS) system
• Integrated video adapter for video door entry applications
• Input voltage: 110–240 V AC, 50/60 Hz
• Bus output: 27 V DC, 600 mA
• Maximum power consumption: 35 VA
• DIN rail mounting per EN 50022, occupies 6 TE (modules)
• Protection: overload and short-circuit protection
• Operating temperature: 0°C to +40°C
• Relative humidity: 90% (non-condensing)

Why choose it

The 346050 combines a robust power supply and a video adapter in a single 6-module DIN unit. This reduces wiring complexity and saves space in the electrical cabinet, making it an efficient solution for installers and system integrators. The built-in protection features safeguard sensitive SCS devices against faults.

Ideal use cases

• Powering BTicino door entry video systems in residential buildings
• Supplying SCS bus devices in commercial offices and retail spaces
• Centralized power distribution in home automation cabinets

Good to know

The unit is designed for indoor installation in a distribution board or enclosure. Ensure adequate ventilation and comply with local electrical codes. This power supply is specifically matched to BTicino SCS components.
