Lenovo 01CV750 scheda di rete interna fibra ottica 16000 Mbit/s

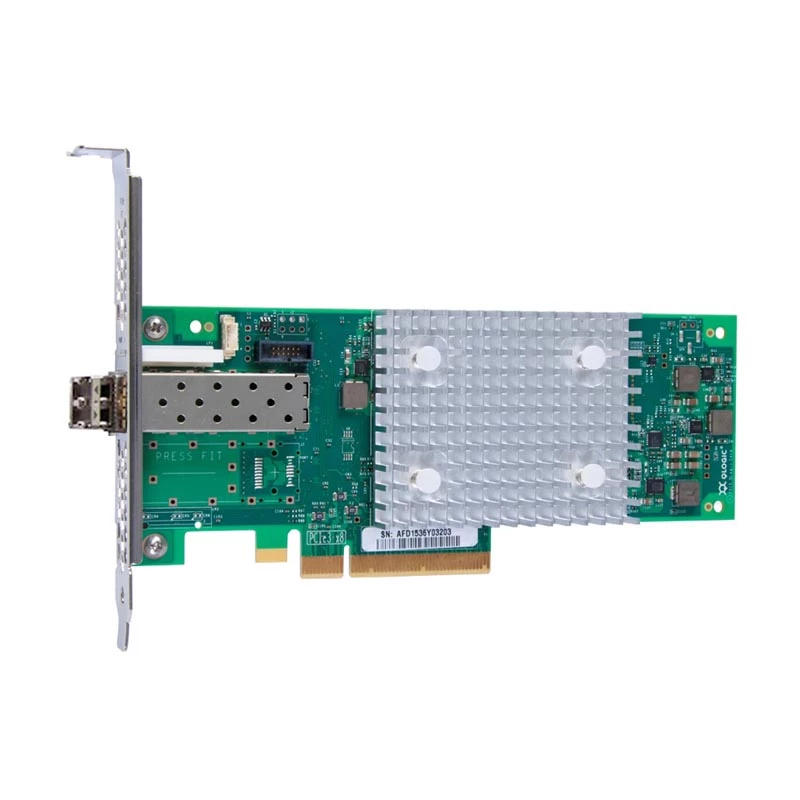

The Lenovo 01CV750 is an internal fiber network card that provides high-speed wired connectivity with a maximum data transfer rate of 16000 Mbit/s. Designed for installation in a PCI Express slot, the card uses fiber interface technology to deliver stable, low-latency connections suited for data-intensive and mission-critical environments while keeping power consumption efficient.

Advantages

The card combines fiber connectivity and a PCI Express host interface to offer reliable wired performance with high throughput and reduced CPU overhead. Its design prioritizes stability and efficient power usage, making it suitable where continuous high performance and low latency are required. The green-coloured housing allows easy visual identification within a server or workstation chassis.

Suitable for

• High-throughput server connections
• Storage area networks (SAN) and data centre links
• Virtualisation hosts and database servers
• Workstations requiring low-latency fibre links

Key specifications

• Brand: Lenovo
• Model / MPN: 01CV750
• Maximum data transfer rate: 16000 Mbit/s
• Host interface: PCI Express
• Connectivity technology: Wired (fiber)
• Product colour: Green
• EAN: 0889488417315

How to use

Install the Lenovo 01CV750 into a compatible PCI Express slot on a powered-off system according to your server or workstation manual. Connect the appropriate fiber cable to the card’s fiber interface and secure connections on both ends. After powering on, install or update drivers and management utilities provided by Lenovo to enable full functionality and monitoring. Verify link status and configure network settings through the operating system or management console.

Recommendations

Use multimode or single-mode fiber and transceivers that match your existing infrastructure and the card’s supported optics. Keep firmware and drivers up to date, and follow standard electrostatic discharge (ESD) precautions during installation.
