Lenovo 7ZT7A00537 scheda di rete interna fibra 10000 Mbit/s

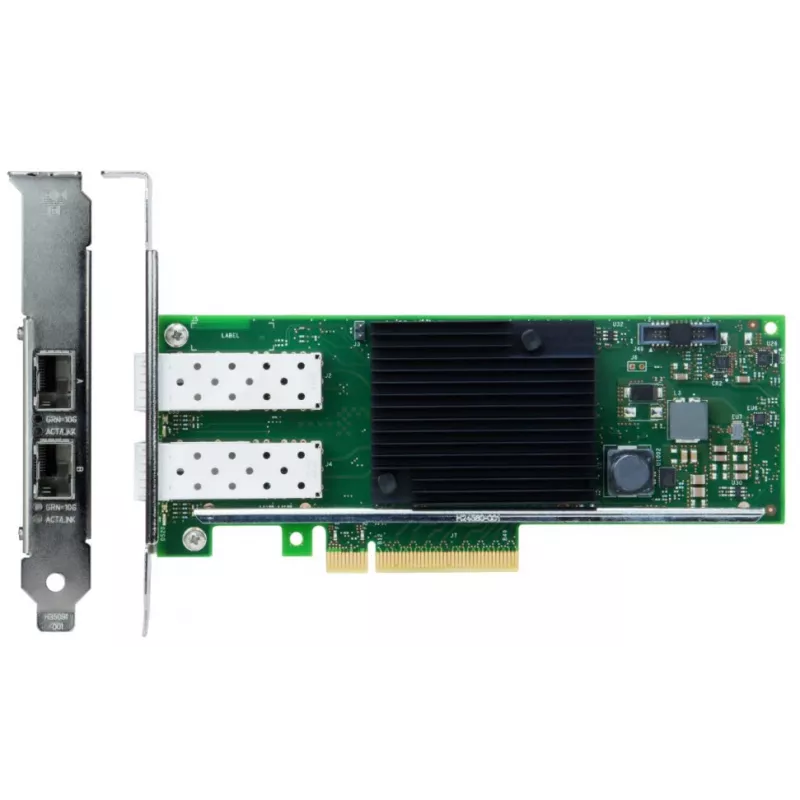

The Lenovo 7ZT7A00537 Internal Fiber 10000 Mbit/s is a wired network card designed for servers and workstations that require 10 Gigabit connectivity over fiber. It connects via a PCI Express host interface and supports established Ethernet and VLAN standards, enabling high-speed data transfer and integration into modern network environments. The card's black and green design aligns with common system aesthetics while providing a compact internal form factor for installation into available PCIe slots.

Advantages

This internal fiber network card delivers a maximum data transfer rate of 10000 Mbit/s suitable for demanding network traffic. Its PCI Express host interface ensures direct, low-latency connectivity to the host system. Support for multiple networking standards offers compatibility with QoS, VLAN tagging, link aggregation and time-sensitive networking features, and the card is engineered for integration into virtualization and data-center configurations that require reliable 10 GbE links.

Suitable for

• High-throughput server networking in data centers
• Virtualized environments and hypervisor hosts
• Storage networks and NAS systems requiring 10 GbE fiber links
• Network aggregation and uplink ports on switches

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Host interface: PCI Express
• Interface type: Fiber
• Connectivity technology: Wired
• Supported networking standards: IEEE 802.3x; IEEE 802.3ae; IEEE 802.1p; IEEE 802.1as; IEEE 802.1ad; IEEE 802.1Q
• Product colour: Black, Green

How to use

Install the card into an appropriate PCI Express slot on a powered-off system, secure it in place according to the server or workstation chassis instructions, and connect compatible fiber optics cabling to the card's fiber interface. After powering on the host, verify that the system BIOS/UEFI recognizes the PCIe device, then install or enable the vendor or operating system network drivers. Configure link settings, VLANs, or QoS through the operating system network management tools or centralized network management software as required.

Recommendations

Use multimode or singlemode fiber and transceivers that match your network topology and distance requirements; ensure transceiver and cable types are compatible with the card's fiber interface. Maintain appropriate airflow inside the chassis for thermal stability, and keep firmware and drivers updated to preserve compatibility and performance in virtualized or high-load deployments.
