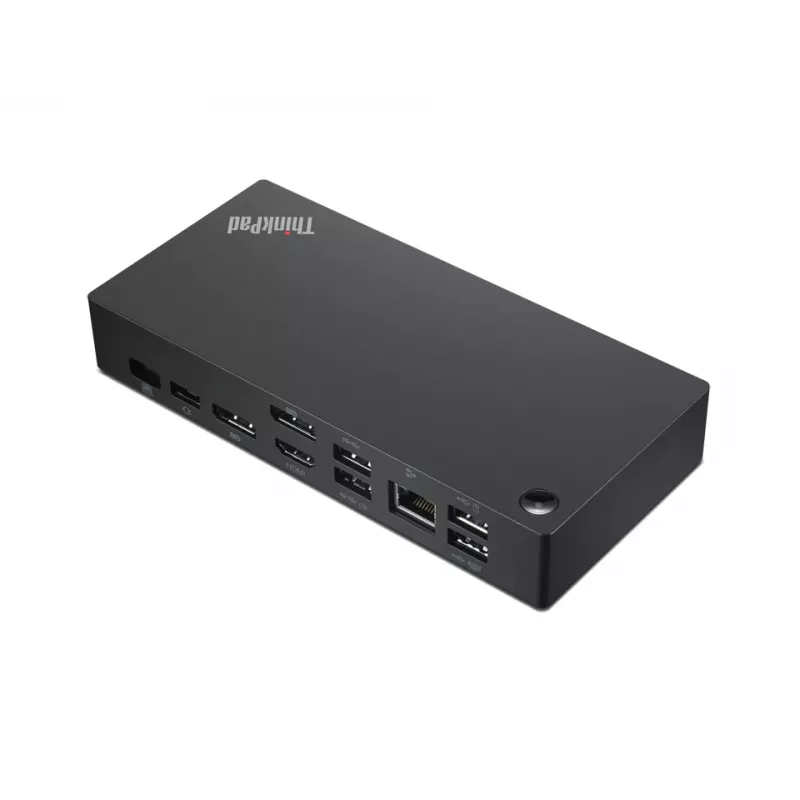

Lenovo ThinkPad Universal USB-C con filo USB 3.2 Gen 1 (3.1 Gen 1) Type-C nero

The Lenovo ThinkPad Universal USB-C Dock is a wired docking station that expands connectivity for USB Type-C notebooks and laptops. It supports dynamic power delivery up to 100 W to charge compatible notebooks, provides 4K display capability and Gigabit Ethernet connectivity, and offers automated firmware updates and plug-and-play operation. The dock is compatible with mixed PC environments and industry-standard USB-C notebooks, delivering a single-cable connection to a range of devices.

Advantages

The dock consolidates multiple ports on a single unit to reduce cable clutter while providing fast data transfer and network access via Gigabit Ethernet. It supports dynamic power charging up to 100 W, enabling charging of supported notebooks through the USB-C connection. Built-in management features such as silent firmware updates, remote device queries and support for IT tools like PXE boot, Wake-on-LAN (WOL) and MAC address pass-through simplify fleet administration.

Suitable for

• Office workstations and hot-desk environments
• Users with USB-C notebooks requiring power delivery and external displays
• IT administrators managing multiple docks and devices

Key specifications

• Manufacturer: Lenovo, model: ThinkPad Universal USB-C Dock (MPN 40AY0090SA)
• Interface: USB Type-C (wired)
• USB ports: 3 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0
• Video: HDMI port with up to 4K resolution support
• Network: Gigabit Ethernet (RJ-45)
• Power delivery: Dynamic charging to notebooks, maximum 100 W
• Compatibility: Windows 10 and Windows 7 (per product data) and industry-standard USB-C notebooks
• Colour and weight: Black, 0.34 kg

How to use

Connect the dock to a compatible USB Type-C port on your notebook using the provided cable. Plug external peripherals—monitors, keyboard, mouse, and Ethernet—into the corresponding ports on the dock. If required by your environment, allow firmware updates to install automatically or apply updates via your management tools. Use the notebook power settings and display configuration tools in your operating system to arrange external displays and confirm power delivery.

Recommendations

For reliable operation, use the dock with notebooks that support USB-C power delivery and follow your IT department’s guidelines for firmware updates and network settings. Ensure connected displays and peripherals meet the dock’s supported resolutions and standards.
