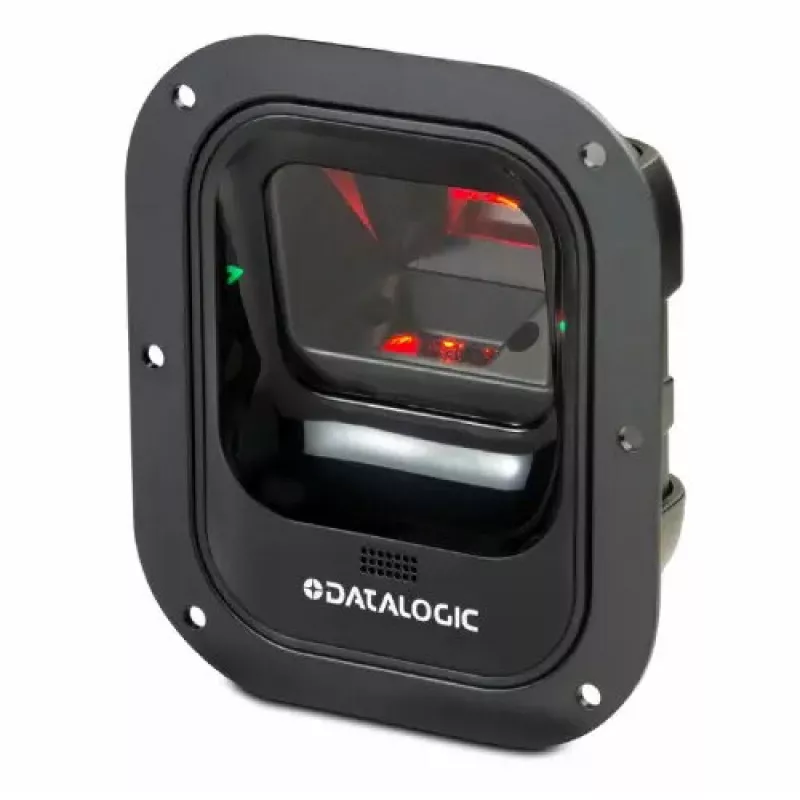

Lettore barcode fisso Datalogic Magellan 900i 1D/2D LED nero

The Datalogic Magellan 900i is a compact fixed barcode reader that reliably scans both 1D and 2D barcodes, including codes displayed on mobile phones. Built on 15 years of imaging presentation experience, this LED-equipped model combines a durable black housing with wired USB connectivity and an IP52 rating for resistance to dust and drops. Its small footprint and high sweep speed make it suitable for checkout counters, self-service kiosks, and access control stations where fast, consistent scanning is required.

Advantages

The Magellan 900i delivers fast and accurate reading of a wide range of barcode symbologies and mobile barcodes thanks to optimized imaging algorithms. Its compact design and simple installation reduce integration effort in both attended and unattended applications. With low power consumption (5V, 300 mA) and robust construction, the unit supports continuous operation in retail and kiosk environments while helping to reduce transaction times and related labor costs.

Suitable for

• Convenience store and retail checkouts
• Self-checkout and self-service kiosks
• Access control and entry points
• Any point-of-sale or station requiring fixed presentation scanning

Key specifications

• Model: Datalogic Magellan 900i (MG0902-11000-0204)
• Scan capability: 1D and 2D barcodes, including mobile phone displays
• Interface: Wired USB
• Optics: LED imaging
• Power: 5 V DC, 300 mA
• Ingress protection: IP52
• Color: Black

How to use

Mount the Magellan 900i in the desired fixed position at a checkout or kiosk and connect it to a host system via the USB interface. Position items or mobile devices in front of the scan window at the recommended working distance; the unit will automatically detect and read barcodes as they pass through the field of view. For attended counters, align the scanner so the cashier can present items quickly; for kiosks, set the housing to match user height and typical interaction angles.

Recommendations

Place the scanner on a stable surface and avoid direct, strong light on the scan window. Clean the window periodically to maintain read performance. Use the provided USB connection for reliable data transfer and configure host software to accept both 1D and 2D symbologies for full compatibility.
