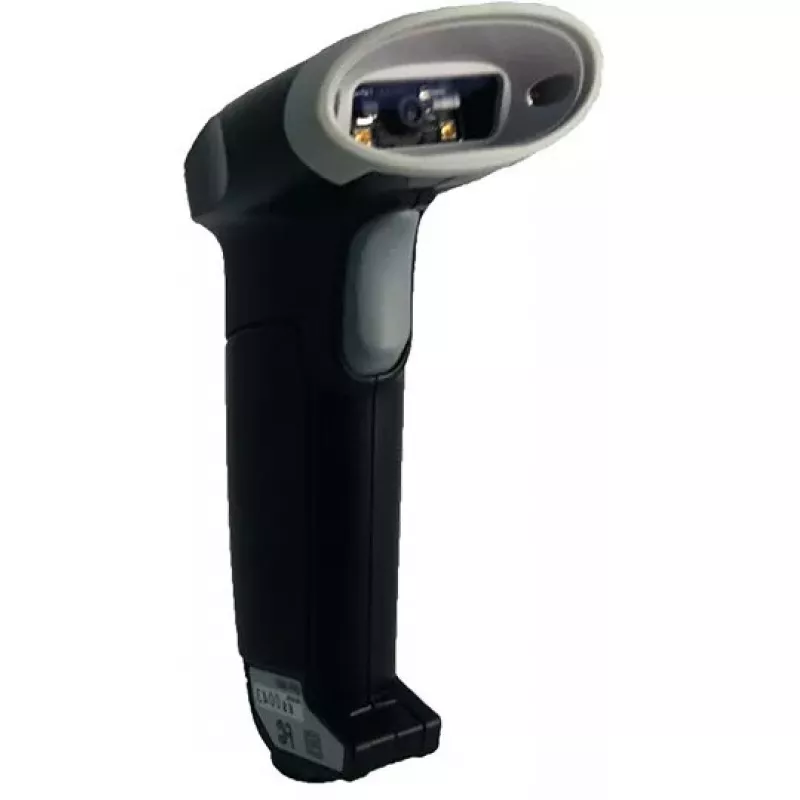

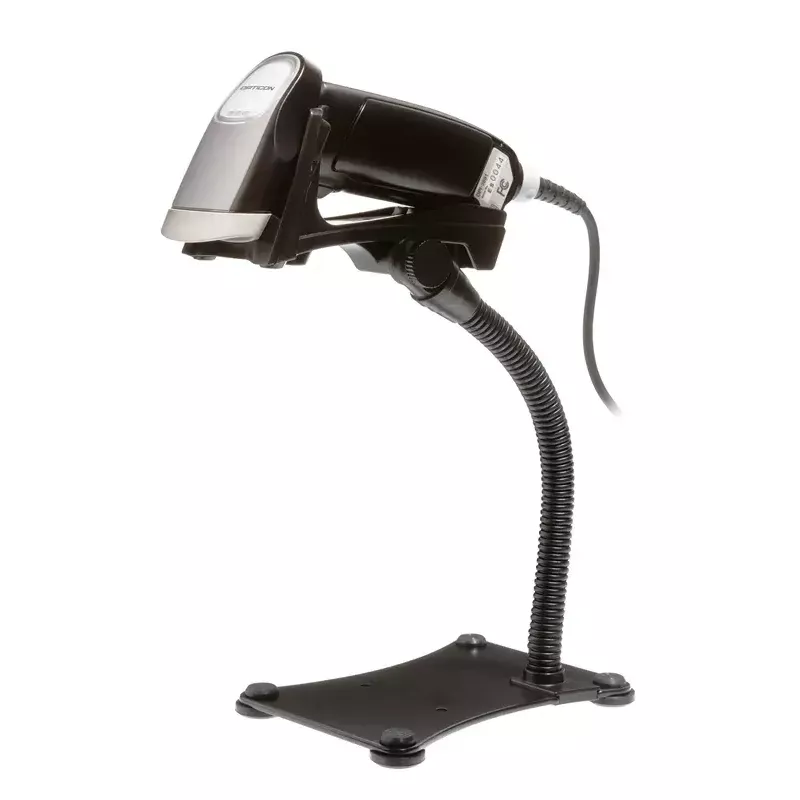

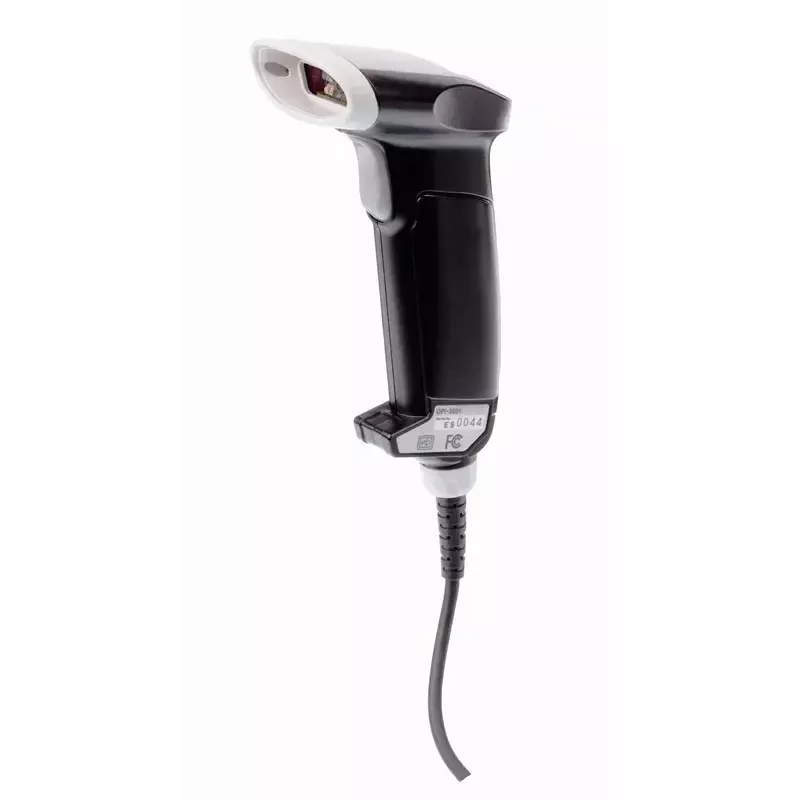

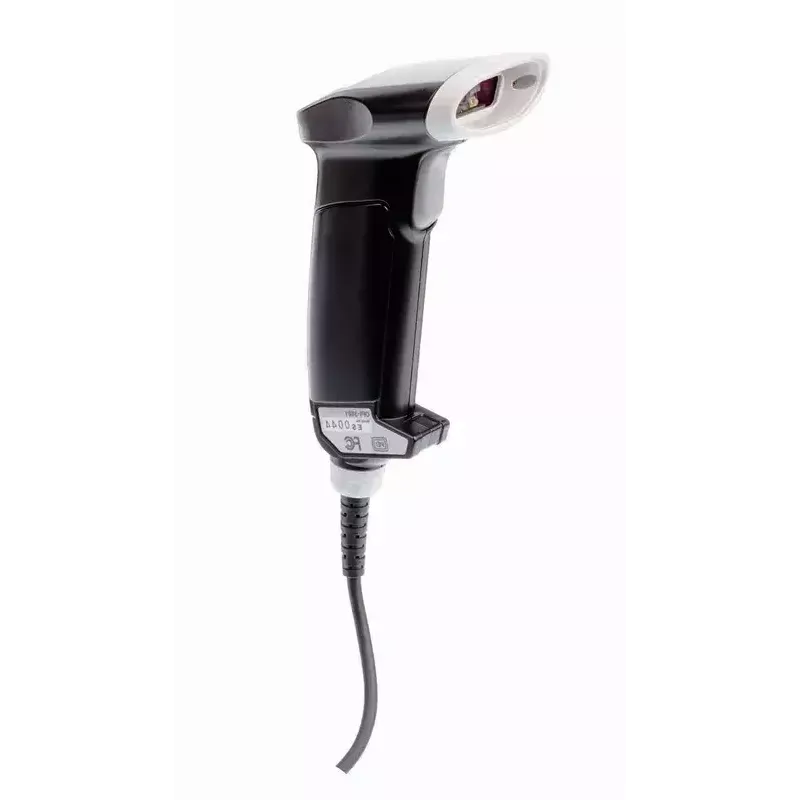

Lettore barcode portatile Opticon OPI3601

The Opticon OPI3601 is a handheld barcode reader with a 2D CMOS imager designed to read both 1D and 2D barcodes in healthcare, retail, point-of-sale (POS), inventory and logistics environments. It offers a compact ergonomic body, bright LED targeting guides, multiple trigger modes and a proprietary decode engine that accelerates capture of challenging or damaged codes. The reader connects via USB or RS-232 and supports wide input voltage operation while weighing approximately 80 g.

Advantages

The OPI3601 combines a fast decode speed and broad symbology support — including common linear codes such as Code 128 and UPC and 2D codes like QR Code and Data Matrix — in a lightweight, compact housing. Bright LED targeting improves aiming accuracy, multiple trigger modes suit different workflows, and the proprietary decoder increases read reliability for damaged or poorly printed barcodes. USB and RS-232 connectivity provide flexible integration with POS and inventory systems.

Suitable for

• Retail checkout and point-of-sale (POS)
• Inventory control and stock counting
• Logistics and warehouse scanning
• Healthcare barcode scanning for records and medication
• Mobile scanning tasks where compact size and low weight matter

Key specifications

• Sensor type: CMOS
• Supported 1D barcodes: Codabar, Code 11, Code 128, Code 39, GS1-128 (UCC/EAN-128), JAN, MSI, Telepen, U.P.C.
• Supported 2D barcodes: PDF417, MicroPDF417, Micro QR Code, MaxiCode, Data Matrix, Composite Codes, Aztec Code, QR Code
• Working distance: 130 mm
• Connectivity: USB, RS-232
• Weight: 0.08 kg (approx.)
• Product colour: Black
• MPN: 13084
• EAN: 5712505145289

How to use

Connect the handheld scanner to your host device using the supplied USB or RS-232 cable and ensure any required drivers or software are installed. Aim the unit at the barcode so the LED targeting guides center the code, then press the trigger; the decoder will read and transmit the barcode data to the connected system. For best results, hold the scanner steady at an appropriate distance (around the specified working distance) and align the code within the illumination area.

Recommendations

For reliable operation in retail, healthcare or logistics environments, verify compatibility with your POS or inventory software and test reading of your typical barcode labels (both 1D and 2D) before large-scale deployment. Keep the scanner lens clean and avoid direct exposure to strong sunlight or reflective glare during scanning.
