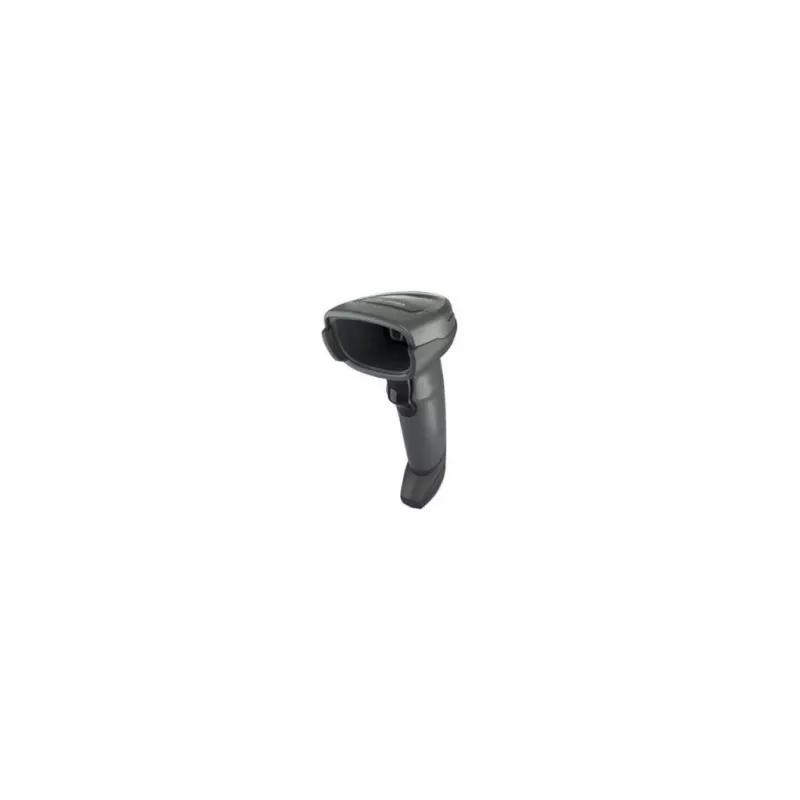

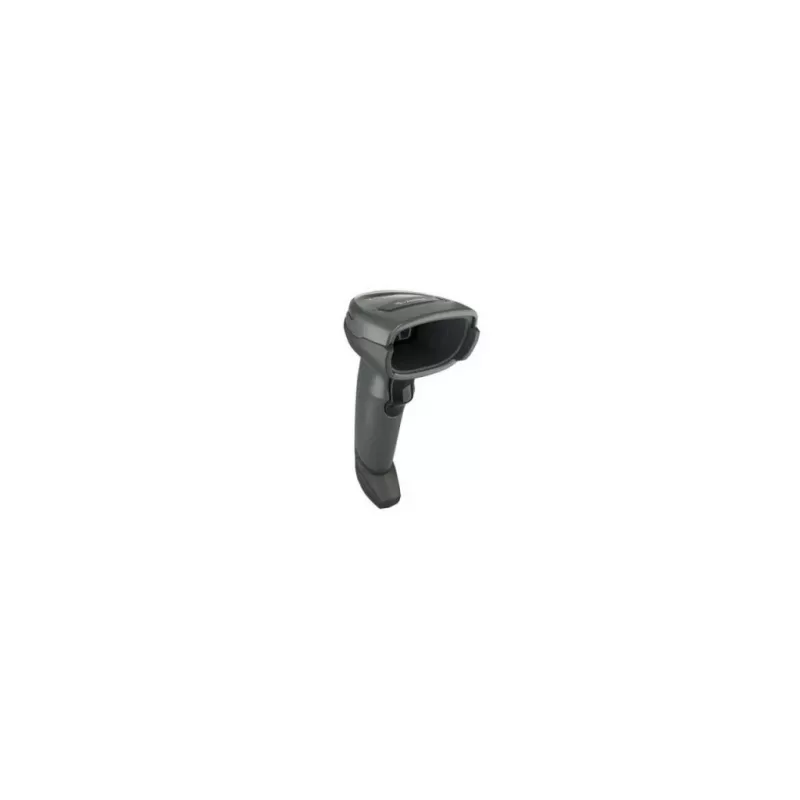

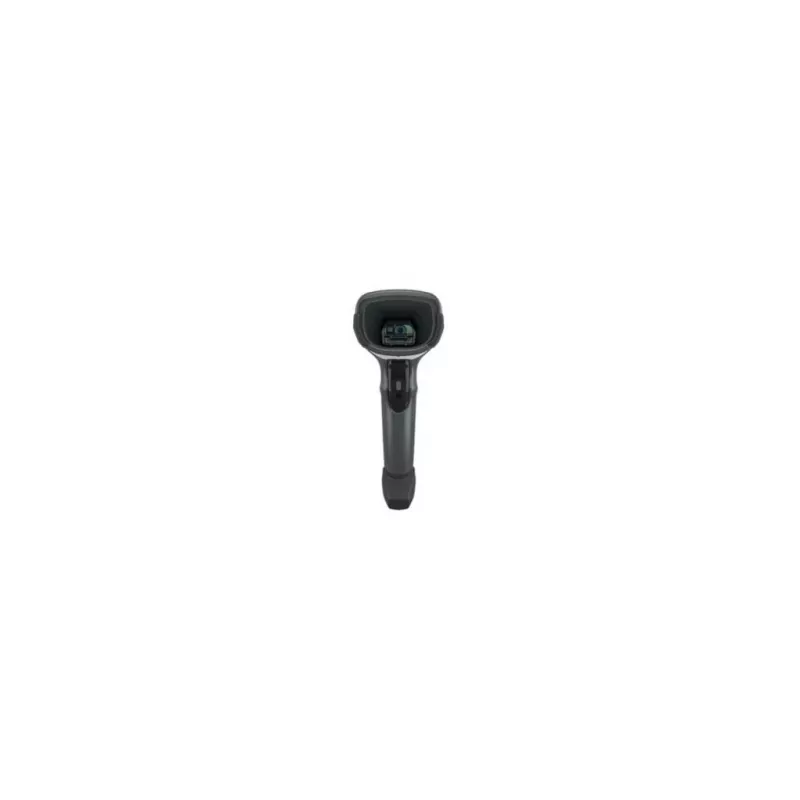

Lettore di codici a barre portatile Zebra DS4608-HD 1D/2D LED nero

The Zebra DS4608-HD handheld bar code reader combines extended-range scanning, adaptable imaging and fast performance for retail environments. Designed for 1D and 2D barcodes, the scanner reads codes on mobile screens, small labels, wide package barcodes and IDs, and supports advanced capture modes such as DotCode and dotted DataMatrix. Lightweight and durable with a LED sensor and wired RS-485 connectivity, the DS4608-HD is built to handle checkout, returns, inventory and document capture tasks across the store.

Advantages

The DS4608-HD delivers an industry-leading scan range (up to 28 inches on UPC), a bright aim dot for easy targeting and Zebra’s PRZM Intelligent Imaging for rapid capture of challenging barcodes. Its 800 MHz processor and high-resolution sensor speed up capture, while Intelligent Document Capture automatically orients, de-skews and brightens images. The reader supports a broad set of symbologies (1D and 2D), optional driver’s license parsing and EAS tag deactivation, and provides reliable wired connectivity and an IP52 rating for protection in retail settings.

Suitable for (tasks / use cases)

• Checkout scanning of bulky items and carted purchases
• Returns desk processing and ID capture
• Price and inventory verification in backroom and sales floor
• Scanning small labels in jewelry or accessory departments
• Document imaging and OCR capture for travel documents

Key specifications

• Scanner type: 1D/2D handheld
• Sensor type: LED, high-resolution megapixel
• Connectivity: Wired (RS-485)
• Scan range: up to 28 inches (UPC codes)
• Processor: 800 MHz microprocessor
• Supported 1D codes: Code 93, UPC-E, PDF417, MSI, GS1 DataBar, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Composite Codes, TLC-39, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Data Matrix, Aztec Code
• Weight: 0.1619 kg
• Ingress protection: IP52
• Product colour: Black

How to use

Connect the DS4608-HD to the host system via the wired RS-485 interface and configure the scanner using the Zebra setup guides or configuration barcodes. Aim the scanner at the barcode using the bright aim dot and pull the trigger; the PRZM imaging and high-resolution sensor capture both damaged and high-density codes instantly. For document capture, position the document within the field of view and use the capture trigger; the scanner will automatically orient and enhance the image. Enable driver’s license parsing or EAS deactivation in the scanner settings if required by your application.

Recommendations

Use the DS4608-HD for mixed retail tasks—checkout, returns and inventory—to consolidate scanning workflows. Keep the scan window clean, ensure adequate ambient lighting for optimum image capture, and follow Zebra’s calibration and firmware update procedures to maintain best performance.
