Lettore controllo accessi Hikvision DS-K1TA70MI-T

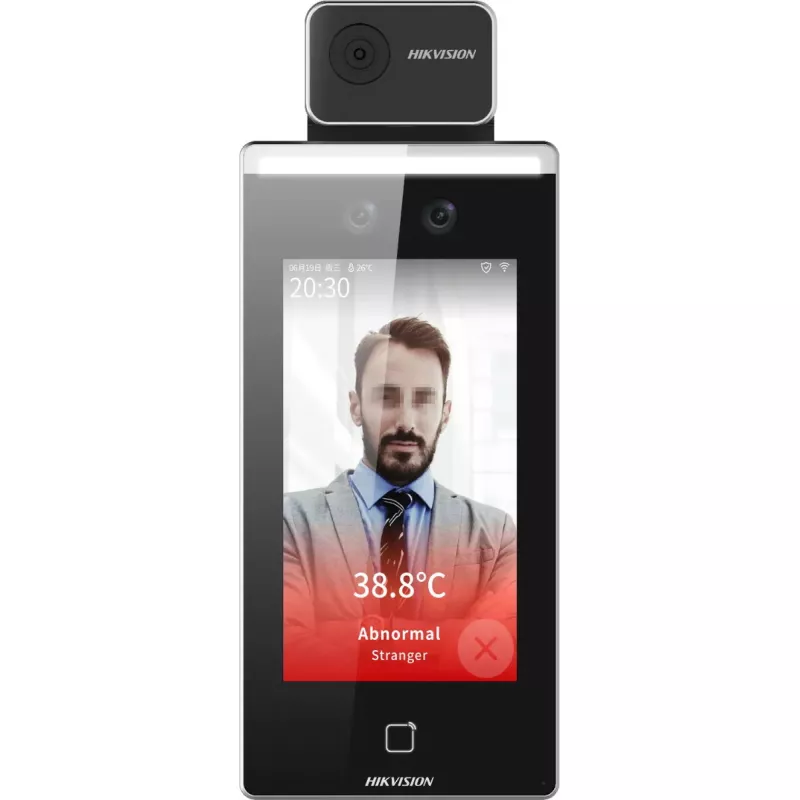

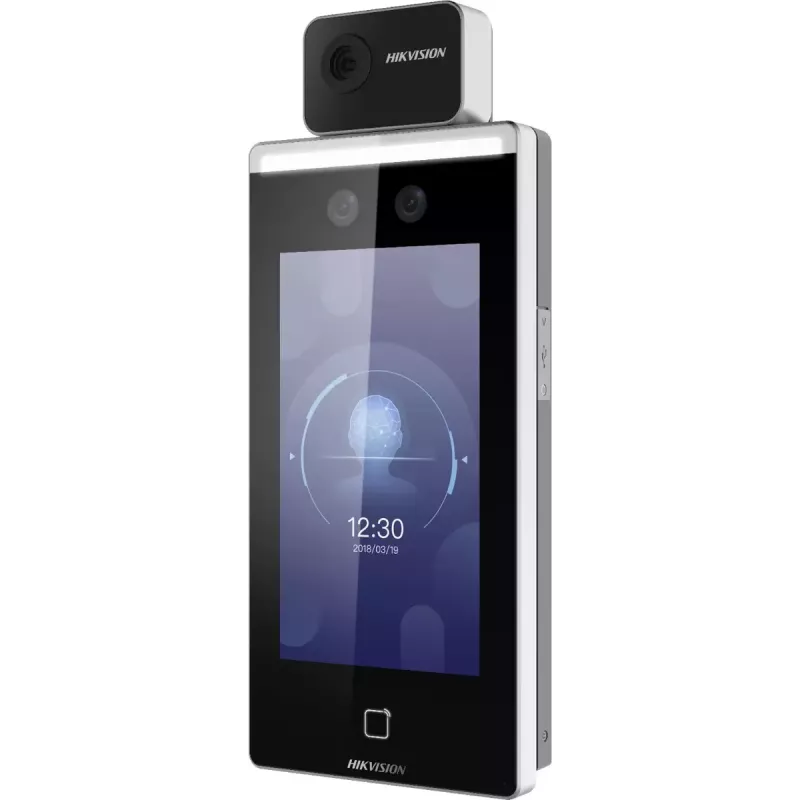

The Hikvision DS-K1TA70MI-T is a face recognition access control reader with a 7" flat display and a 2 MP imaging system. It integrates face recognition and skin-surface temperature screening to provide combined identification and temperature monitoring in a compact terminal. Designed for integration into control systems, the device supports fast face capture, on-device verification and event upload to a management center for centralized access control and abnormal-temperature alerts.

Advantages

The terminal combines biometric face recognition and temperature measurement in a single unit, reducing the need for separate equipment. Its 7" display and 2 MP camera enable clear user interaction and reliable image acquisition for accurate identification. The device supports fast temperature screening and can upload abnormal-temperature events to a central system, improving situational awareness and response. The interface and on-device processing are suitable for high-traffic entrances where quick, touchless identification is preferred.

Suitable for

• Enterprise main entrances and office access control
• Transportation hubs such as stations and terminals
• Residential complexes and gated communities
• Factories and industrial facility entry points
• Schools, university campuses and other educational institutions

Key specifications

• Display: 7-inch flat touchscreen

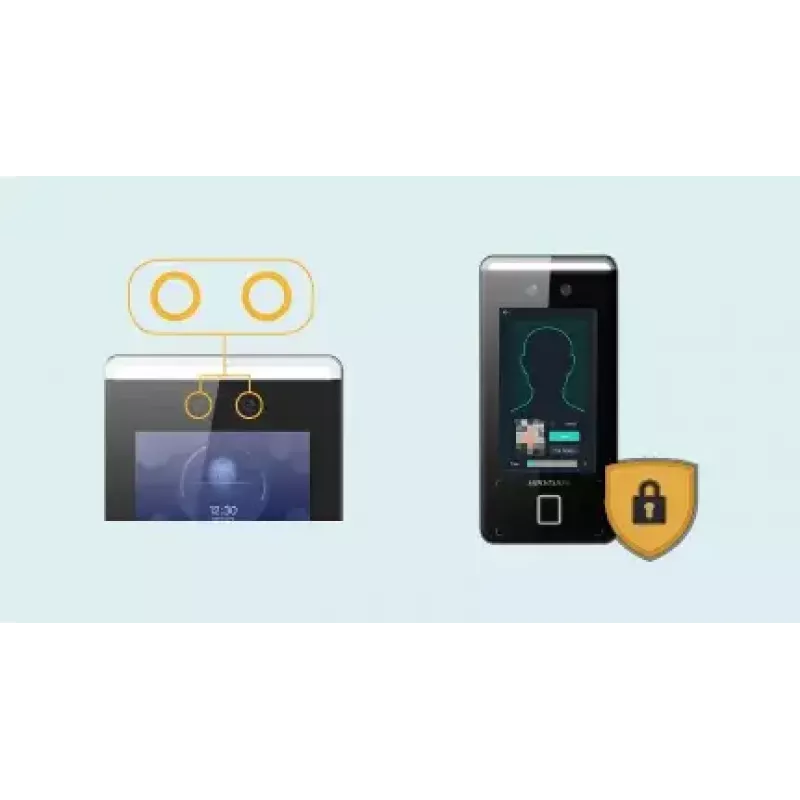

• Camera: 2 megapixel image sensor for face capture
• Biometrics: Face recognition for identity verification
• Temperature screening: Skin-surface temperature measurement with abnormal-temperature event detection

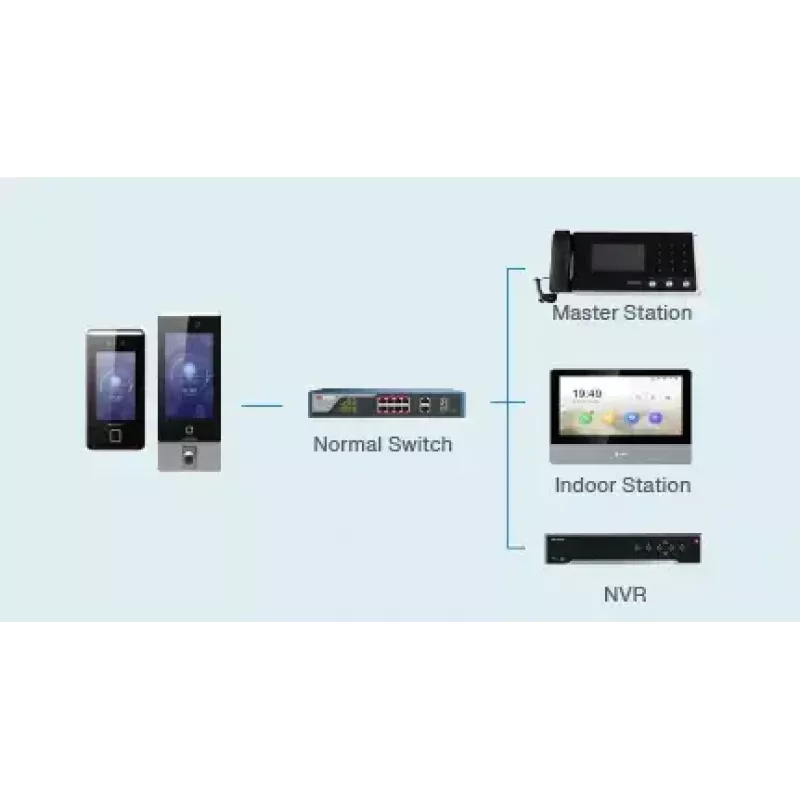

• Network: Supports connection and event upload to central management (integration with access control systems)
• Operation: On-device processing for fast verification and event reporting
• Form factor: Wall-mounted indoor terminal suitable for entryways

How to use

Install the DS-K1TA70MI-T at the intended entry point according to the mounting and network integration guidelines. Power the device and connect it to the access control management system or network for centralized event collection. For identification, present the face to the terminal camera area; the device will capture the face image, perform on-device verification and display the result on the 7" screen. For temperature screening, position the person within the recommended distance from the sensor so the terminal can take a skin-surface temperature reading; if the temperature is outside predefined thresholds, the terminal will generate an abnormal-temperature event and upload it to the management center.

Recommendations

Place the terminal at a stable height and in a location with controlled lighting to ensure reliable face capture and accurate temperature screening. Allow a clear, unobstructed view of the face (no heavy masks or face coverings) and maintain the recommended distance from the sensor. Regularly verify integration with the central access control system and update threshold settings for temperature alarms to match site-specific health and safety policies.
