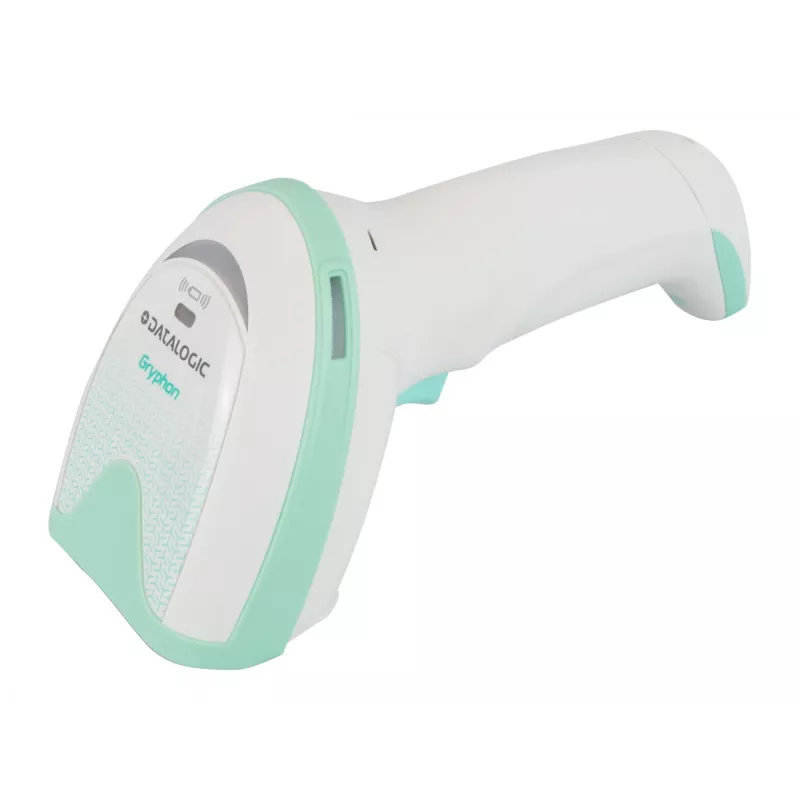

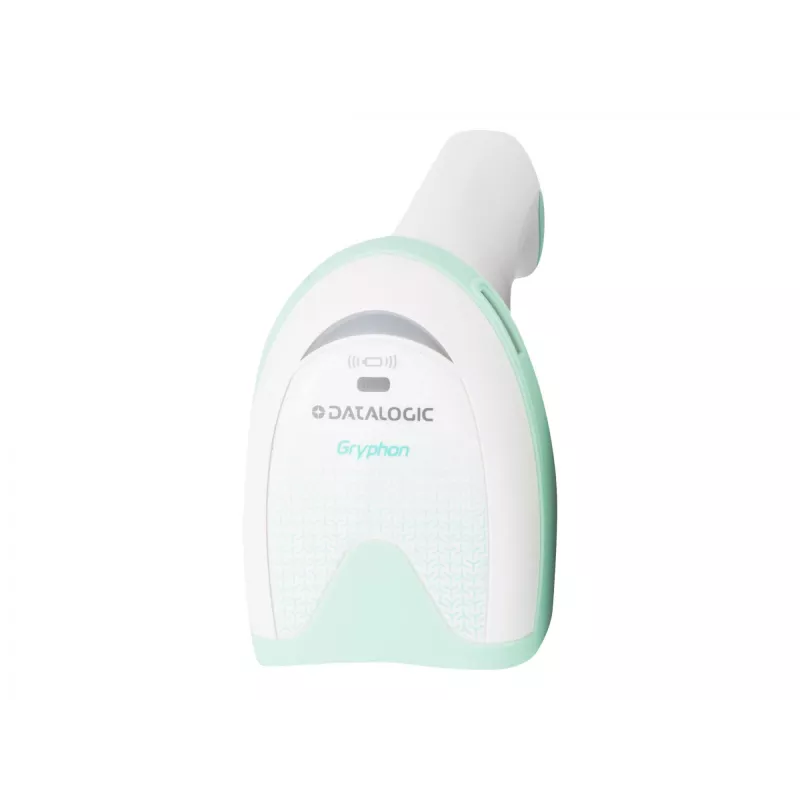

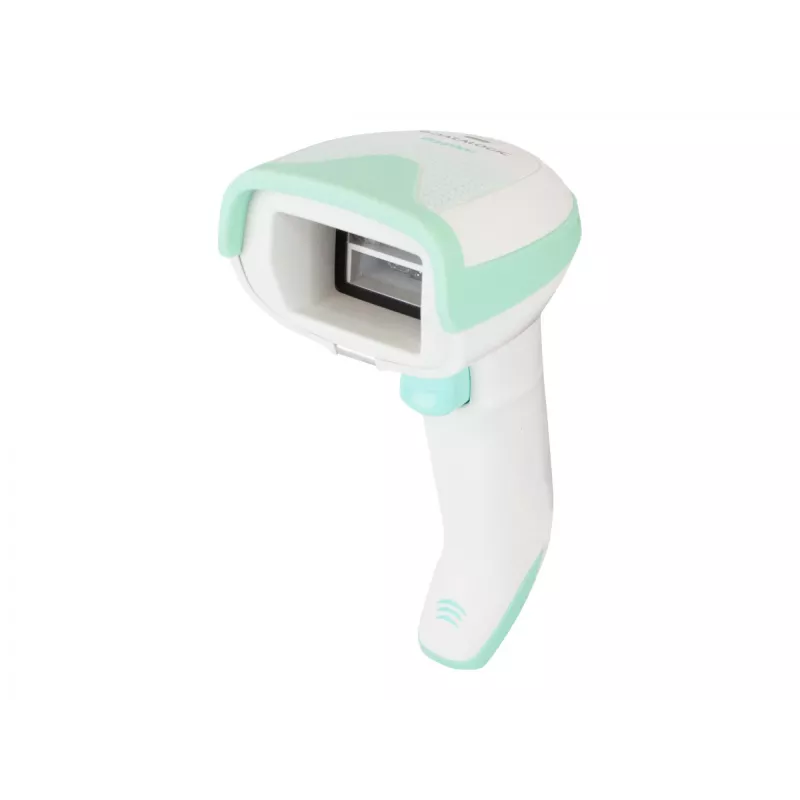

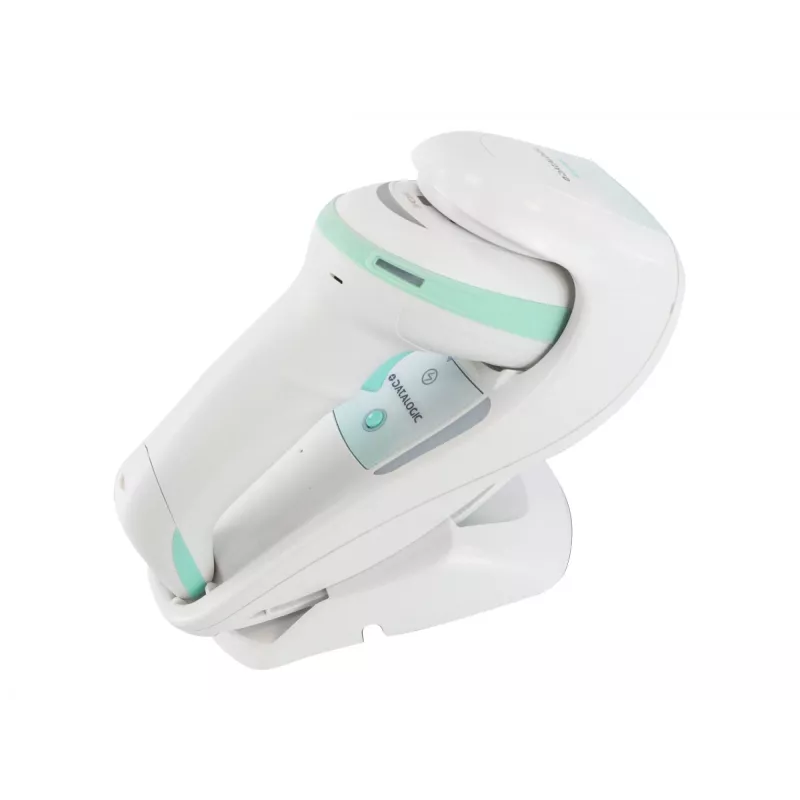

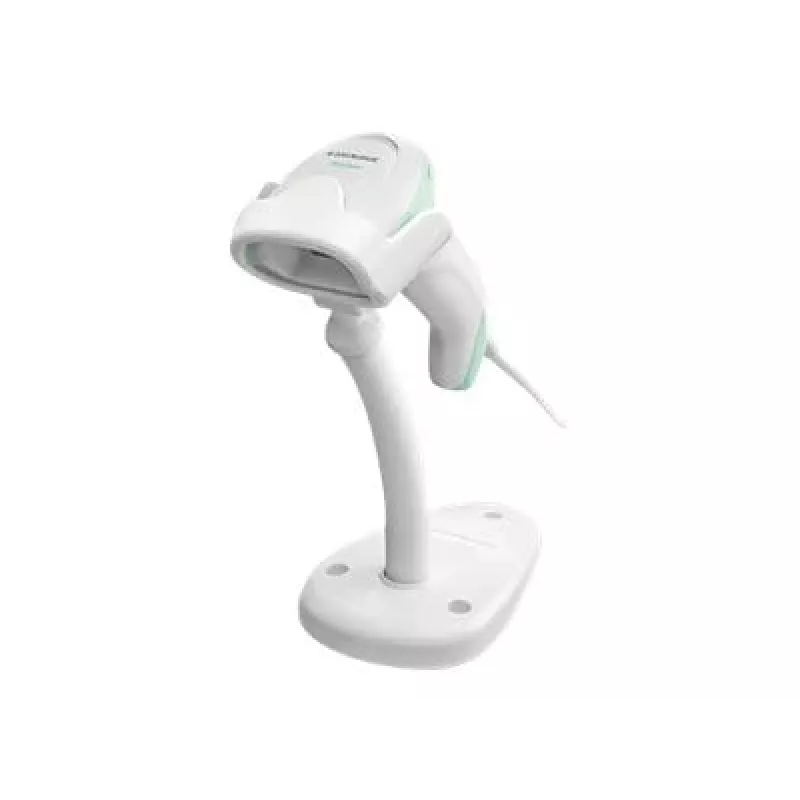

Lettore di codici a barre palmare Datalogic Gryphon I GD4520

The package includes the Gryphon 4500 GD4500 scanner and a USB cable (90A052278). The Gryphon 4500 2D series is Datalogic’s premium range of handheld scanners; the GD4500 is the corded desktop model designed for general-purpose scanning. The imager features a compact, ergonomic design and a Megapixel sensor with warm-white illumination 2D technology for reliable reading performance across printed and digital barcodes.

Advantages

The Gryphon GD4500 offers automatic mode switching via Motionix™ motion-sensing technology to support both handheld and presentation scanning without manual changes. Warm-white illumination improves comfort for operators and enhances readability of colored labels. A highly visible 4-dot aimer defines the reading zone and its center cross helps target specific barcodes in environments with multiple codes. A Healthcare version with disinfectant-ready and anti-microbial housing is available for clinical settings.

Key specifications

• Included items: Scanner and USB cable (90A052278)
• Model: Gryphon GD4500 (corded/desktop)
• 2D Megapixel imaging sensor with warm-white illumination
• Motionix™ motion-sensing for automatic scanning-mode selection
• 4-dot aimer with center cross for precise targeting
• Healthcare option: disinfectant-ready and anti-microbial enclosure (model dependent)

How to use

Connect the scanner to a host device using the supplied USB cable. When powered, the Motionix™ sensor detects operator movement and places the device into handheld or presentation mode as appropriate. Aim the 4-dot aimer at the barcode so the code is within the defined reading zone; the center cross can be used to target a specific code among several. The imager reads printed and digital 1D and 2D codes; follow on-screen or application prompts for successful data capture.

Recommendations

For reliable operation, keep the window and aimer area clean and avoid exposing the device to harsh chemicals unless using the Healthcare model with disinfectant-ready housing. Use the included USB cable (90A052278) and verify compatibility with your host system or POS software before deployment.
