Lettore di codici a barre portatile Datalogic PD9630-SRK1 1D/2D USB IP65 IP67

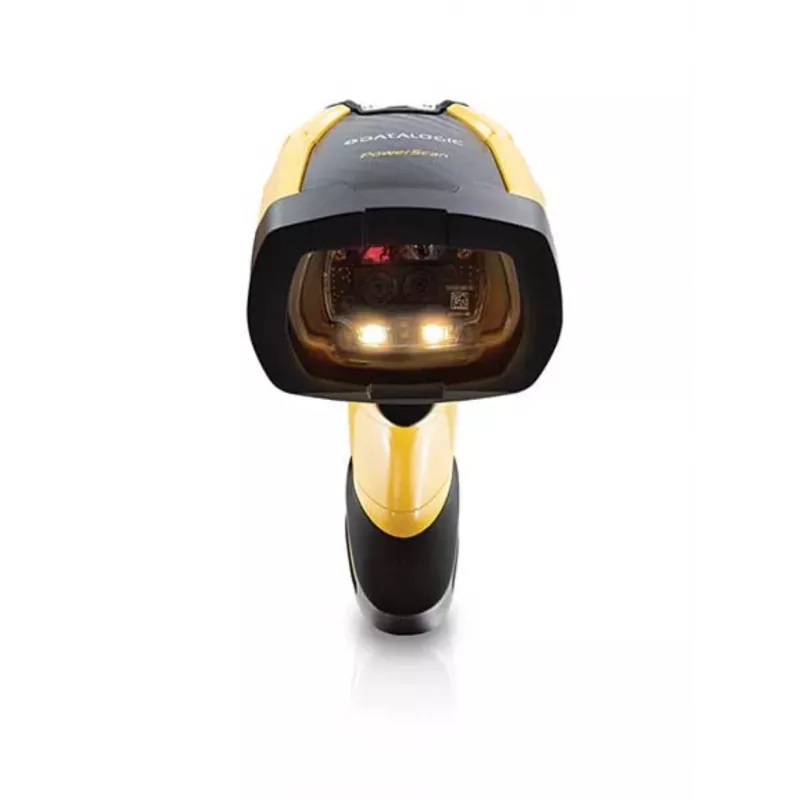

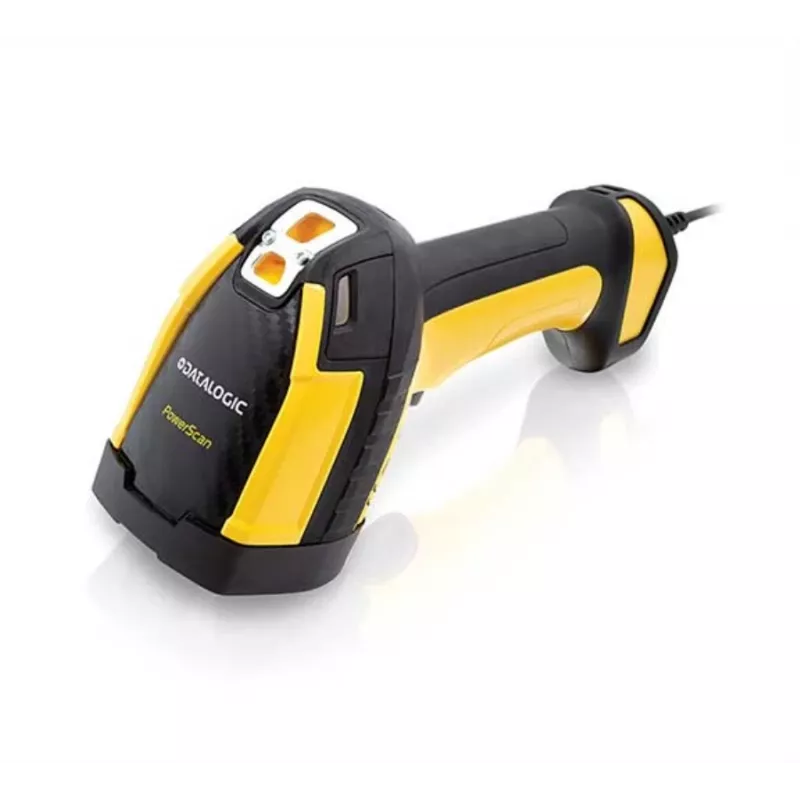

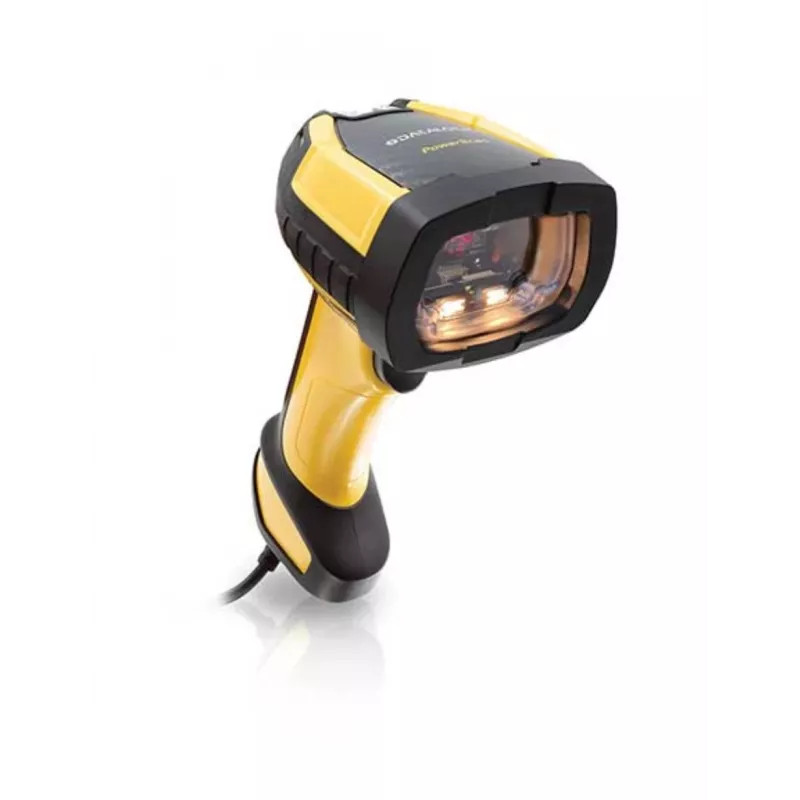

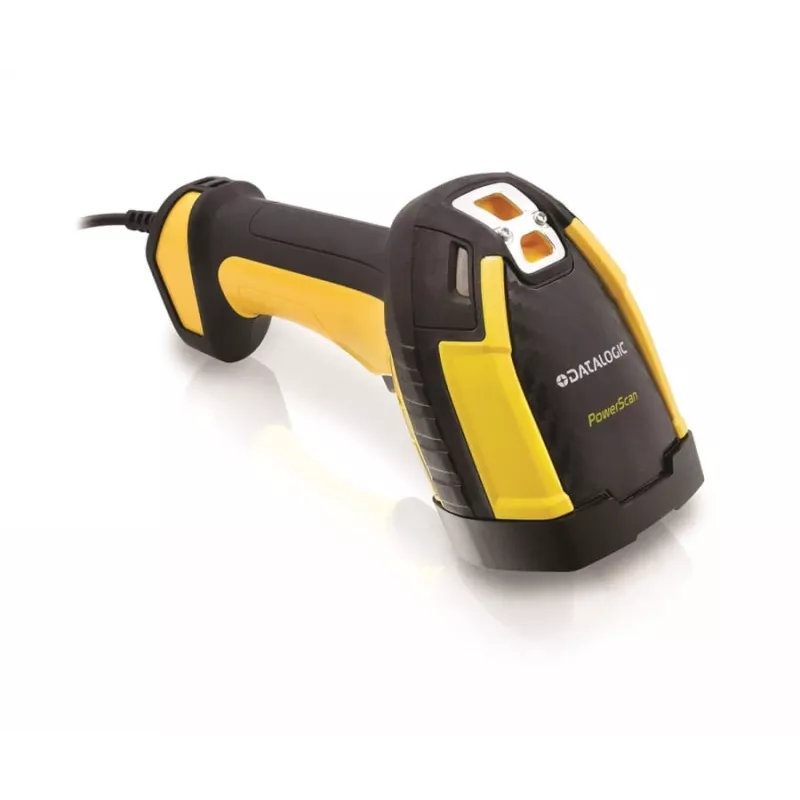

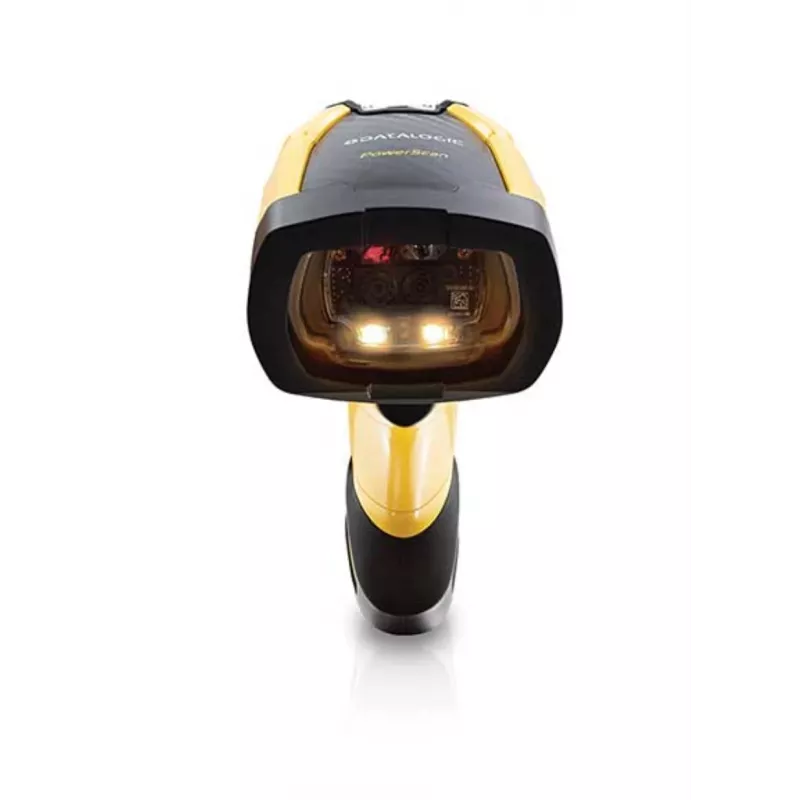

The Datalogic PowerScan PD9630-SR USB Kit includes the handheld scanner and USB cable (CAB-553). This ultra-rugged 1D/2D area imager is designed for industrial use, offering IP65/IP67 protection and balanced ergonomics to reduce operator fatigue. The Standard Range (SR) optic provides reliable barcode reading at typical working distances, while multi-interface support includes USB and RS-232, with optional Ethernet for networked deployments. Motionix™ motion-sensing automatically adapts scanning mode between handheld and presentation use.

Advantages

The PD9630-SR combines an ultra-rugged enclosure with an ergonomically balanced shape to improve comfort during long shifts. It delivers high first-pass read rates using an intuitive aiming system and includes Datalogic’s 3 Green Lights (3GL™), a loud beeper and vibration for clear good-read feedback. Dual Good Read LEDs and the Green Spot increase visibility in multiple orientations. The kit provides plug-and-play USB connectivity and supports common serial interfaces for easy integration.

Suitable for

• Warehouse inventory and logistic operations
• Manufacturing floor barcode validation
• Retail stock management and backroom scanning
• Document capture and shipping/receiving (standard-range tasks)

Key specifications

• Model: Datalogic PowerScan PD9630-SR (PD9630-SRK1)
• Barcode types: 1D and 2D area imager
• Interfaces: USB (kit includes CAB-553), RS-232; optional Ethernet
• Ingress protection: IP65 / IP67
• Weight: approximately 318 g

How to use

Connect the scanner to a host device using the supplied USB cable (CAB-553) or via RS-232 according to your system. Aim the scanner at the barcode using the aiming pattern, then press the trigger or rely on Motionix™ to switch to presentation mode. The Green Spot, LEDs, beeper and vibration will indicate a successful read. Configure interface settings or symbology options with the manufacturer’s configuration tools if required.

Recommendations

For best performance, keep the scan window clean and avoid direct scratches on the optics. Use the Standard Range optic for typical hand-held and conveyor scanning distances; choose High Performance or Document Capture variants when high-density codes or wide-angle capture are needed. Follow IP65/IP67 guidance when operating in wet or dusty environments and verify host interface settings before deployment.
