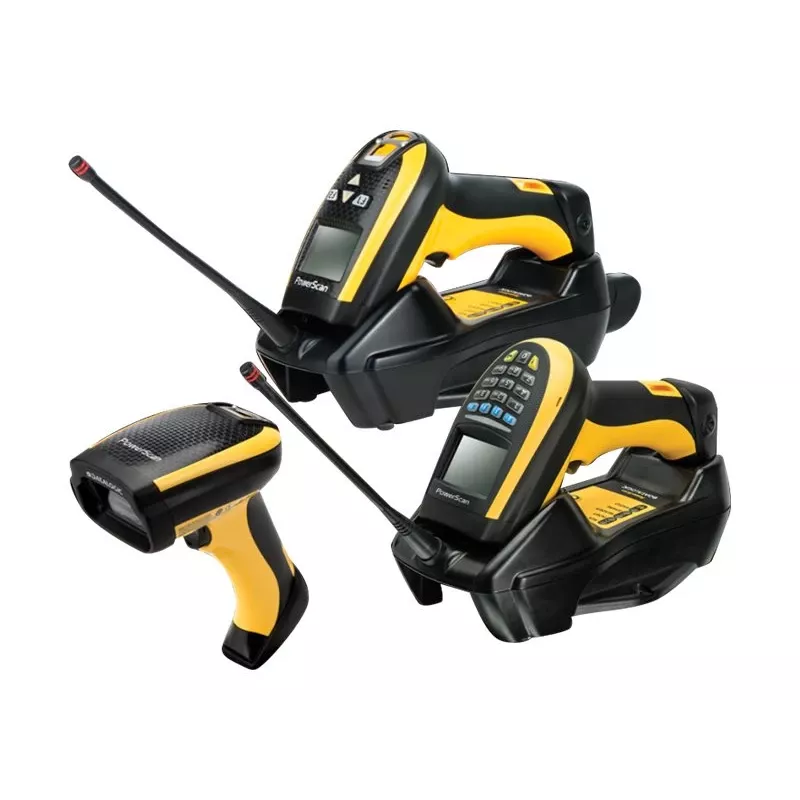

Lettore di codici a barre portatile Datalogic PowerScan PM9100

The Datalogic PowerScan PM9100 is a cordless handheld bar code reader designed for reliable 1D scanning in demanding environments. It uses a linear imager with a green scanning line that provides laser-like definition while retaining the advantages of an imager. The device integrates Datalogic's STAR Cordless System narrow band radio for wireless operation and is available in three variants: basic (no display or keypad), with display and 4-key keypad, and with display and full alphanumeric keypad.

Advantages

The PM9100 offers a robust IP65-rated housing and shock resistance suited for industrial use, an LED sensor optimized for 1D codes, and Datalogic’s 3 Green Lights (3GL) and patented Green Spot for clear good-read feedback. Multi-interface support includes RS-232, Keyboard Wedge and USB, and wireless operation uses a 433 MHz narrow band radio with an operating range suitable for typical warehouse and production-floor layouts. The scanner is powered by a 2150 mAh Lithium-Ion battery and combines durability with handheld ergonomics.

Suitable for

• Warehouse receiving and inventory control
• Manufacturing and production-line scanning
• Shipping, packing and logistics operations
• Retail back-office and stockroom use

Key specifications

• Scanner type: 1D linear imager
• Sensor type: LED
• Supported 1D symbologies: EAN-13, EAN-2, EAN-5, UPC, Code 39, Code 93, Code 32, Interleaved 2 of 5, Codabar, GS1 DataBar Omnidirectional, GS1 DataBar Expanded
• Wireless: STAR Cordless System narrow band radio, 433 MHz
• Battery: 2150 mAh Lithium-Ion
• Ingress protection: IP65
• Weight: 0.435 kg
• Available models: basic (no display/keypad), display + 4-key keypad, display + full alphanumeric keypad
• Interfaces: RS-232, Keyboard Wedge, USB
• Colour: Black, Yellow

How to use

Charge the scanner battery before first use and register the handset with its base or receiver according to the supplied STAR Cordless System instructions. Aim the green scanning line at the 1D barcode and pull the trigger; the Green Spot and dual top LEDs provide immediate confirmation of a valid read. Use the model with the suitable keypad/display if on-screen entry or feedback is required. Connect to host systems via RS-232, Keyboard Wedge or USB when using a wired interface or communicate wirelessly through the 433 MHz receiver.

Recommendations

Use the PM9100 in environments consistent with its IP65 rating and avoid exposing the device to prolonged immersion. For best read performance, keep the scan window clean and ensure barcodes are within the supported 1D symbology types. Select the model variant that matches your workflow needs (keypad/display or basic) and follow Datalogic’s instructions for battery care and radio registration.
