Lettore di codici a barre portatile Zebra DS4608-SR 1D/2D LED nero

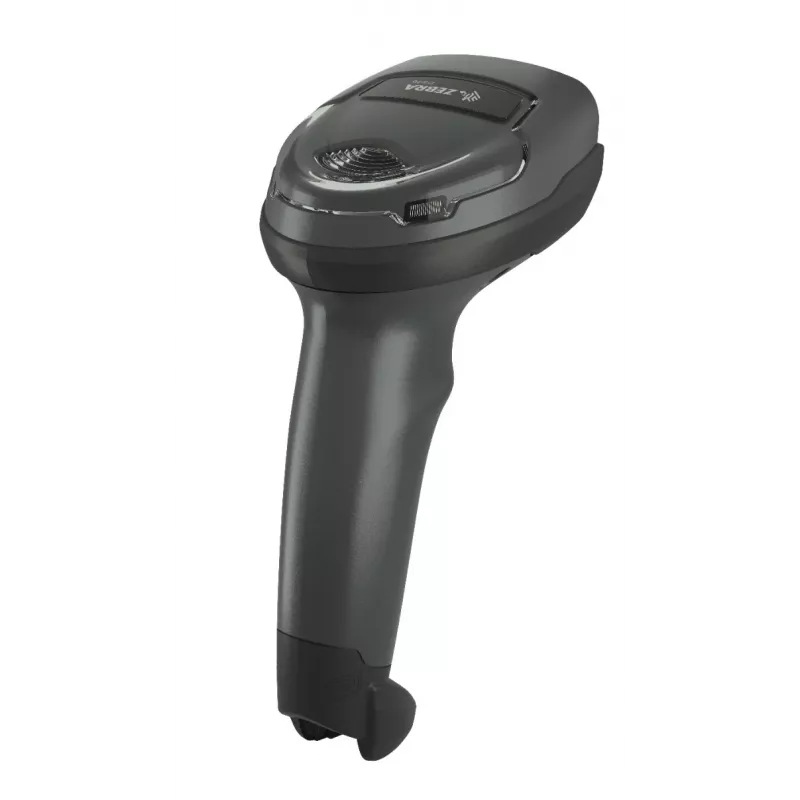

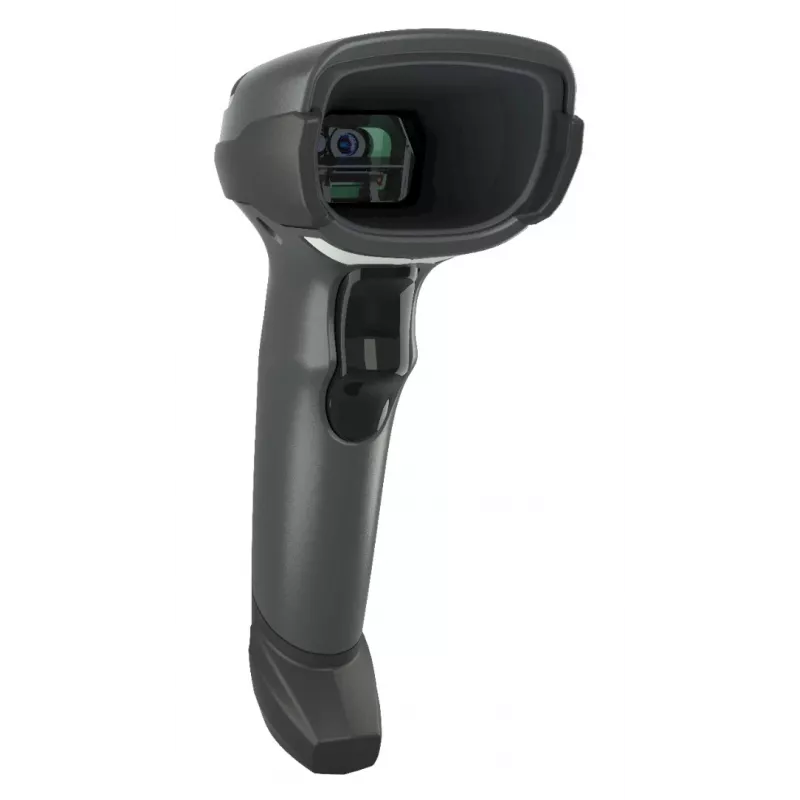

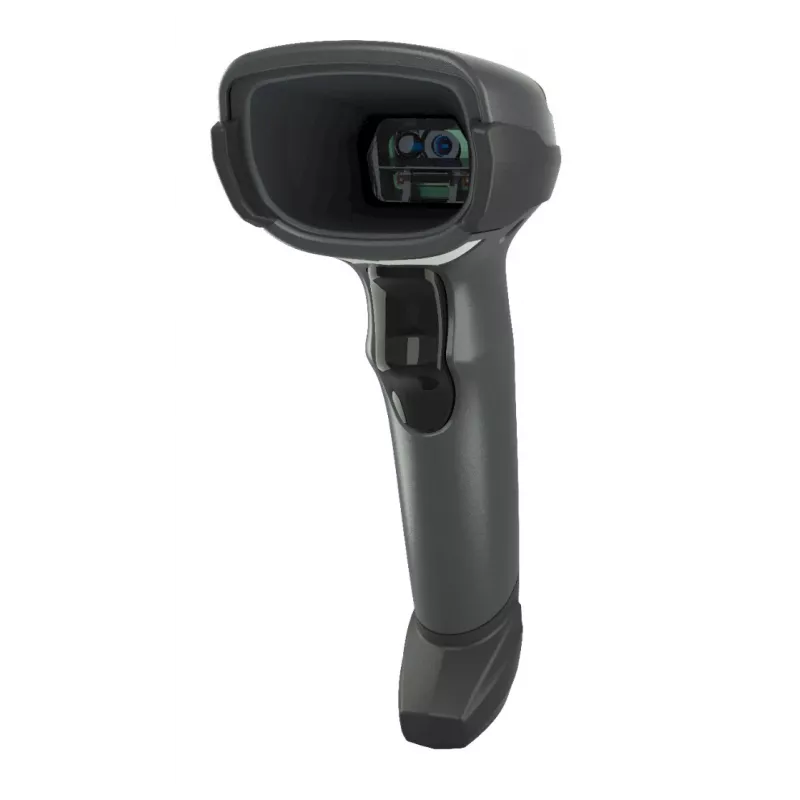

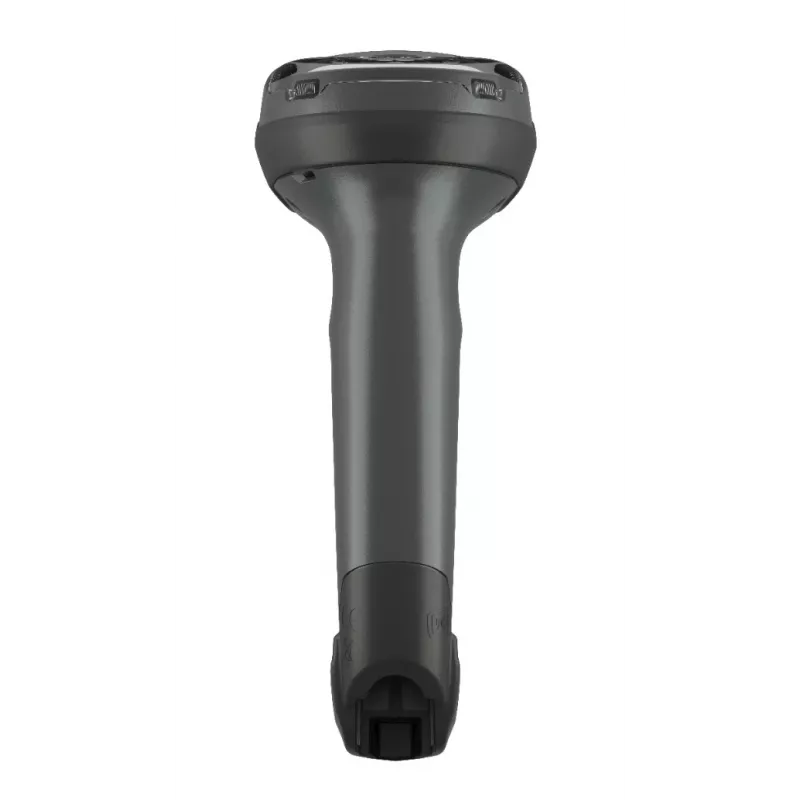

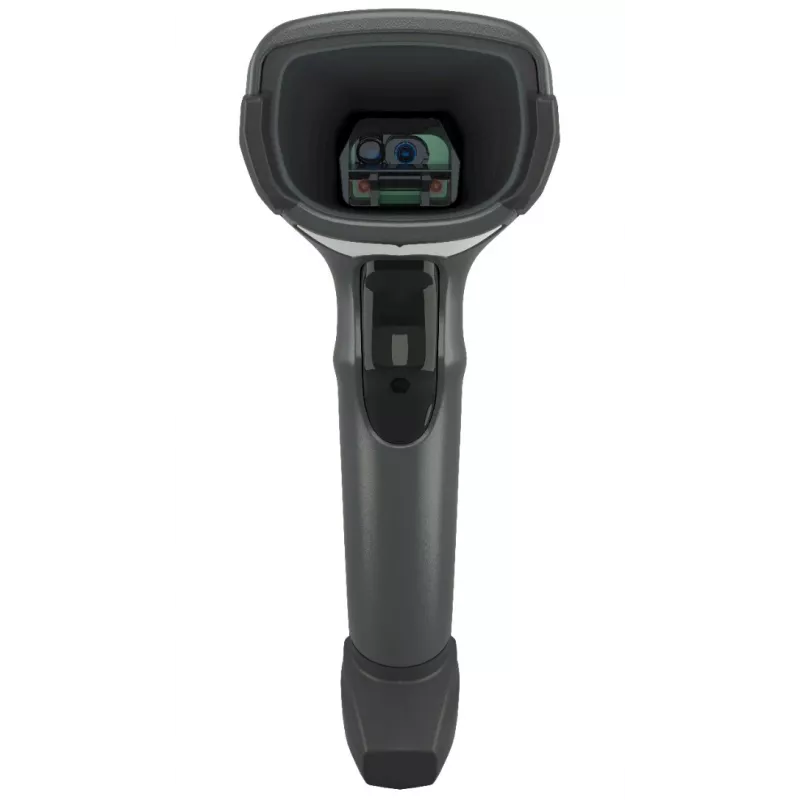

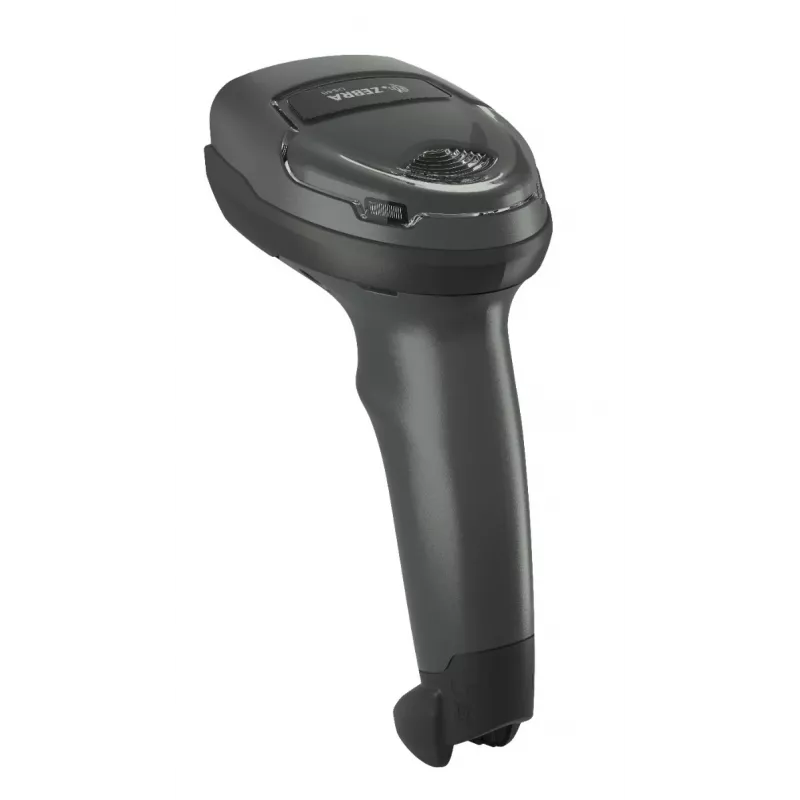

The Zebra DS4608-SR handheld bar code reader is a versatile 1D/2D scanner designed for retail environments. It combines a compact, ergonomic design with durable construction (IP52 rating) to support frequent scanning across the store. The device reads barcodes on packages, mobile screens, ID documents and small tags, and connects via a wired USB interface for reliable operation.

Advantages

The DS4608-SR delivers an extended scanning range—up to 28 inches on UPC codes—so associates can scan bulky items without leaving the checkout counter. It uses an 800 MHz processor, a high-resolution sensor and PRZM Intelligent Imaging technology for fast, accurate capture of damaged, tiny or poorly printed barcodes. Additional features include Intelligent Document Capture for auto-orientation and image enhancement, multi-barcode capture and optional driver’s license parsing and EAS tag deactivation support.

Suitable for

• Retail checkout and point-of-sale scanning
• Returns desk and ID verification
• Inventory and stockroom scanning of bulky or distant items
• Jewellery and small-item barcode scanning
• Capturing mobile coupons and digital barcodes

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED high-resolution megapixel sensor
• Connectivity: Wired (USB)
• Power consumption: 340 mA
• Weight: 0.1619 kg
• Dimensions (approx.): 98 mm width × 165 mm depth
• Product colour: Black
• Durability rating: IP52 (dust and moisture protection)
• Supported linear (1D) codes: Code 93, UPC-E, PDF417, MSI, GS1 DataBar, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Data Matrix, TLC-39, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Composite Codes, Aztec Code

How to use

Connect the DS4608-SR to a POS terminal or PC via the supplied USB cable. Point the scanner at the barcode and pull the trigger to activate the aiming dot; position the dot over the barcode and release the trigger when the read confirmation is heard or indicated. For mobile screens or reflective surfaces, adjust distance until the aiming dot stabilizes. Use the scanner’s configuration utility to enable features such as multi-barcode capture, document capture or driver’s license parsing as required by your workflow.

Recommendations

For optimal performance in retail, mount or position workstations so associates can scan carted items within the 28-inch effective UPC range. Keep the scan window clean and periodically verify firmware and configuration settings with Zebra tools to maintain accurate reads of small or damaged barcodes.
