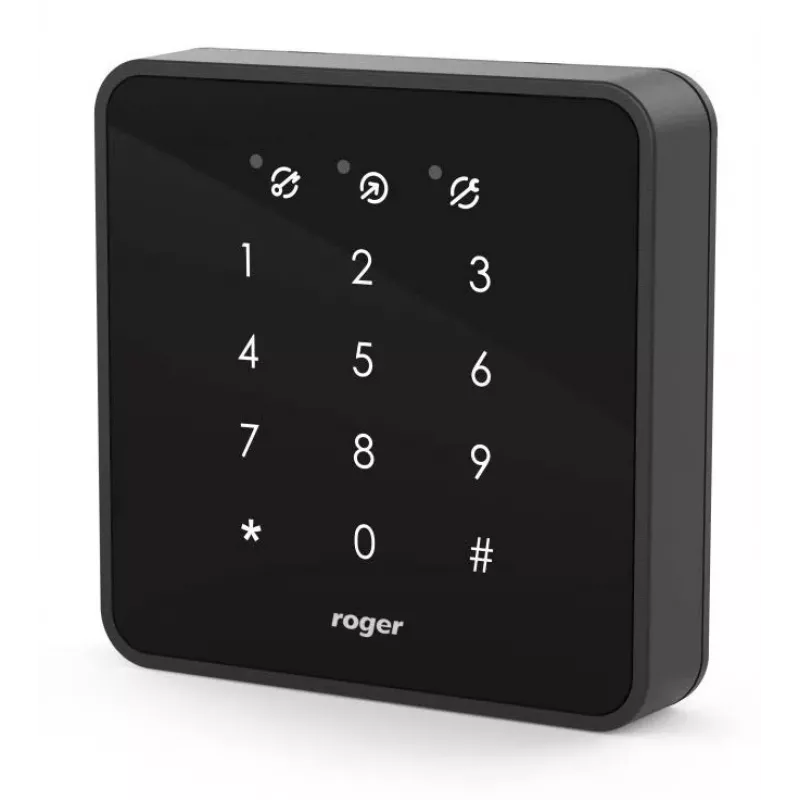

Lettore di prossimità ROGER MCT82M-IO

The ROGER MCT82M-IO is a compact proximity reader designed for the RACS 5 access control system. It supports EM 125 kHz transponders and communicates via RS485 bus, offering a reading range of up to 10 cm. The device features one relay output, one open collector output, and two NO/NC inputs, making it suitable for various access control applications. Its robust ABS plastic housing and IP20 rating ensure reliable indoor operation in temperatures from -25°C to +55°C.

Advantages

This reader provides reliable and secure access control with tamper protection and clear LED/buzzer indicators. The RS485 interface allows for long-distance communication up to 1200 m, and firmware updates can be performed remotely via the bus. Its compact surface-mount design simplifies installation.

Suitable for

• Indoor access control systems
• Office buildings, warehouses, and industrial facilities
• Integration with RACS 5 access control systems

Key specifications

• Reading Technology: Proximity RFID (125 kHz)
• Communication Interface: RS485
• Output: 1 x Relay (NO/NC), 1 x Open Collector
• Input: 2 x NO/NC
• Power Supply: 10-15 VDC, max 100 mA
• Reading Range: Up to 10 cm
• Operating Temperature: -25°C to +55°C
• IP Rating: IP20
• Housing Material: ABS Plastic
• Color: Black
• Tamper Protection: Built-in tamper switch
• Indicators: LED (Red/Green), Buzzer

Recommendations

For optimal performance, use with ROGER RACS 5 controllers and ensure proper power supply within 10-15 VDC. The reader is intended for indoor use only.
