Lettore di schede interno DeLOCK 91680

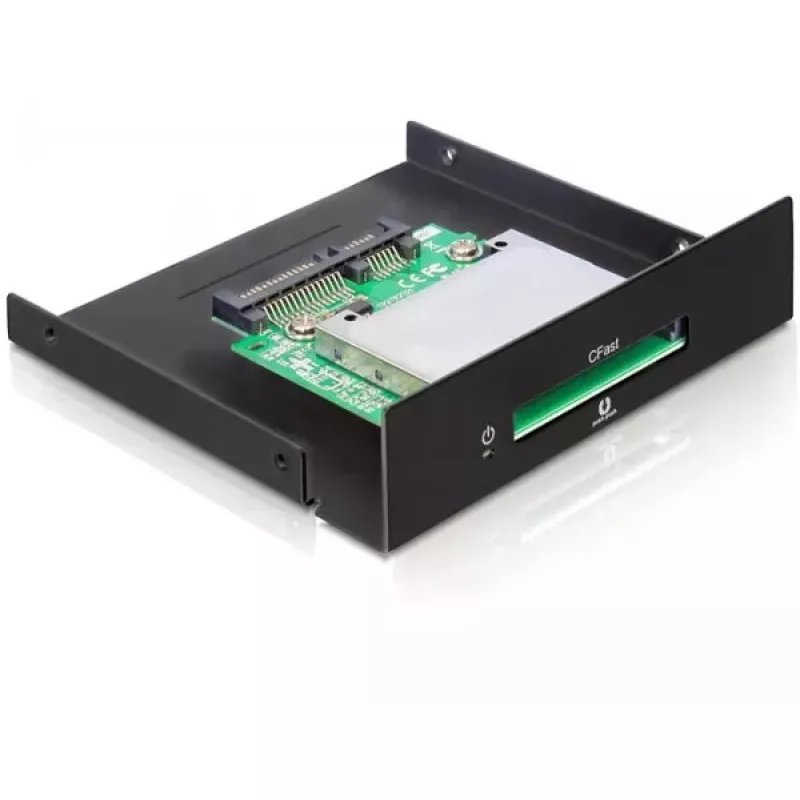

The DeLOCK 91680 internal card reader accepts CFast Type I and II memory cards and installs into a 3.5" bay or a standard/low-profile PCI slot in your PC. It connects to a free 22-pin SATA port on the motherboard and provides the CFast card as additional storage that can be used like a hard drive, including for booting an operating system.

Advantages

The card reader supports CFast Type I and II cards up to 64 GB and exposes a 22-pin SATA data and power connector for direct motherboard connection. Its form factor allows installation in a 3.5" bay or in full-height or low-profile PCI slots, offering flexible mounting options while enabling bootable use of the inserted CFast card.

Suitable for

Key specifications

How to use

Mount the DeLOCK 91680 into a free 3.5" bay or secure it in a PCI/low-profile PCI slot according to your case and bracket configuration. Connect the on-board 22-pin SATA male connector to an available SATA port on the motherboard for data and power. Insert a compatible CFast Type I or II card into the reader; the card will be recognized by the operating system as removable storage and can be accessed through the file manager. To use the card as a boot device, install the operating system on the CFast card following your OS installation procedure and select the card as the boot device in BIOS/UEFI.

Recommendations

Ensure your motherboard has an available 22-pin SATA port and verify operating system support for CFast cards. Back up important data before formatting or installing an OS on the CFast card. Use a compatible CFast card within the supported maximum capacity (up to 64 GB) for reliable operation.
