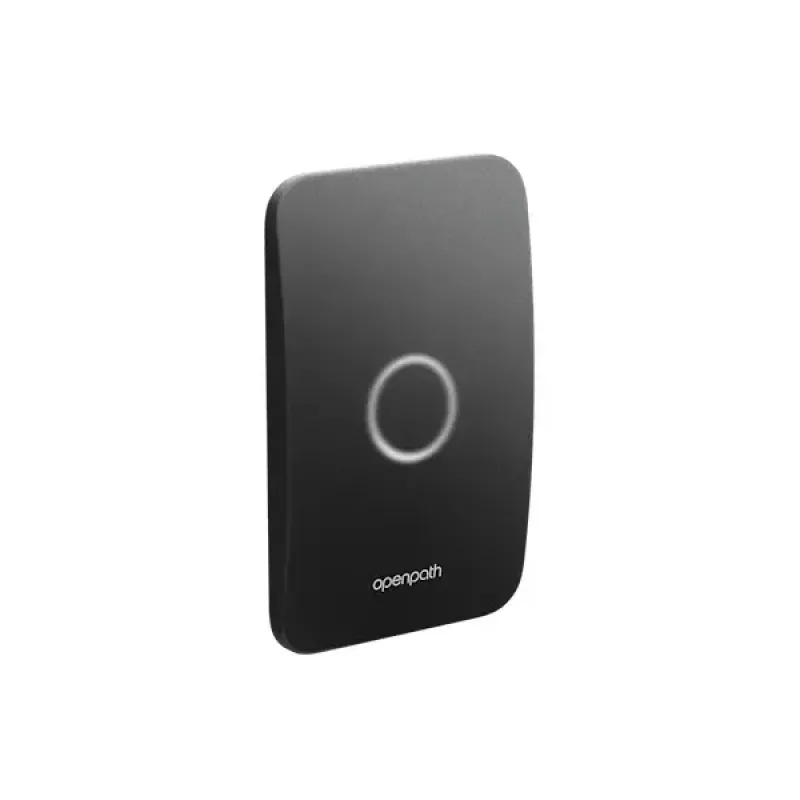

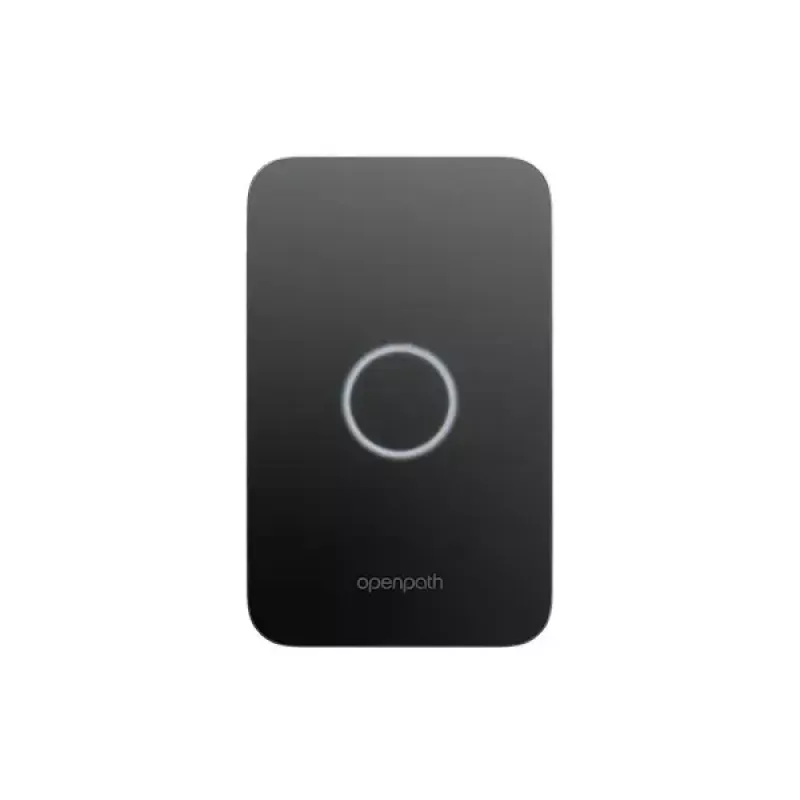

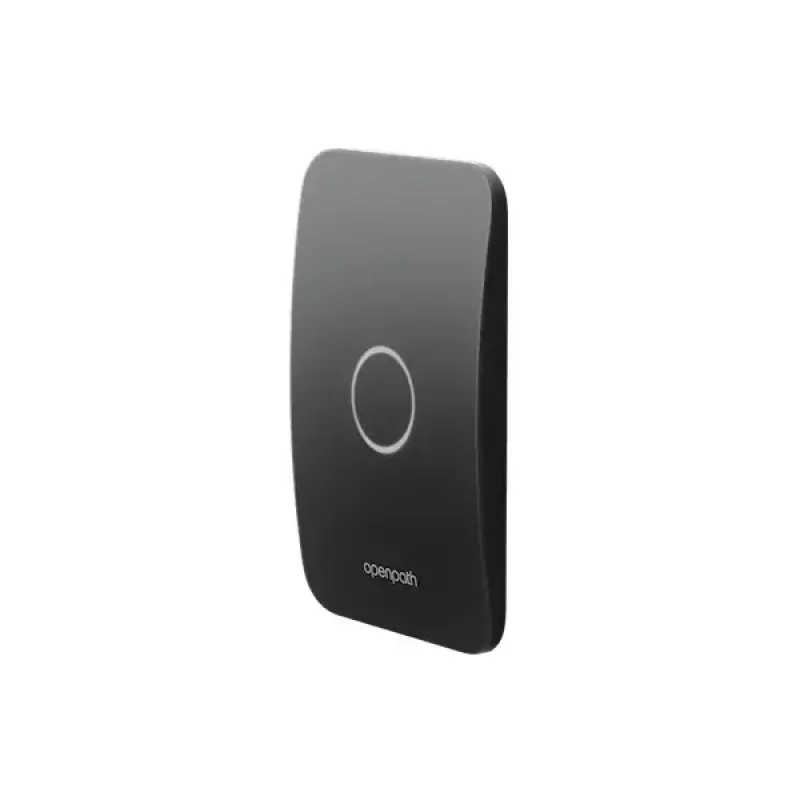

Lettore per controllo accessi Avigilon OP-R2X-STND nero 12-24V 74mm 22mm 119mm

The Avigilon OP-R2X-STND is a compact black proximity reader for door access control that accepts multiple credential types. Designed for 12–24V input and measuring 74 mm × 22 mm × 119 mm, this reader integrates with existing access systems to provide reliable credential verification via cards, fobs, mobile devices, NFC, Wi‑Fi and Bluetooth.

Advantages

The reader combines a small footprint with broad credential compatibility to support different deployment scenarios. Its support for mobile credentials, NFC and Bluetooth enables contactless operation while retaining compatibility with traditional cards and fobs. The design and voltage range (12–24V) simplify integration into standard access control installations.

Suitable for

• Office and commercial building doors
• Secure entry points that require multi-credential support
• Retrofit projects where compact readers are needed

Key specifications

• Brand: Avigilon
• Model / MPN: OP-R2X-STND
• Colour: Black
• Input voltage: 12–24 V
• Dimensions (W × D × H): 74 mm × 22 mm × 119 mm
• Supported credentials: mobile devices, cards, fobs, NFC, Wi‑Fi, Bluetooth
• EAN: 5715063714942

How to use

Mount the reader at the required door location following local installation guidelines and connect it to the access control panel using the specified 12–24V supply. Configure the access control system to recognise the reader and enrol credentials (cards, fobs or mobile identifiers) according to the system software instructions. Test credential presentation and door release to confirm correct operation.

Recommendations

Install the reader in a sheltered position to minimise exposure to extreme weather, and follow Avigilon’s wiring and grounding instructions to ensure reliable operation. Use system firmware and configuration tools recommended by the access control platform for best compatibility.
