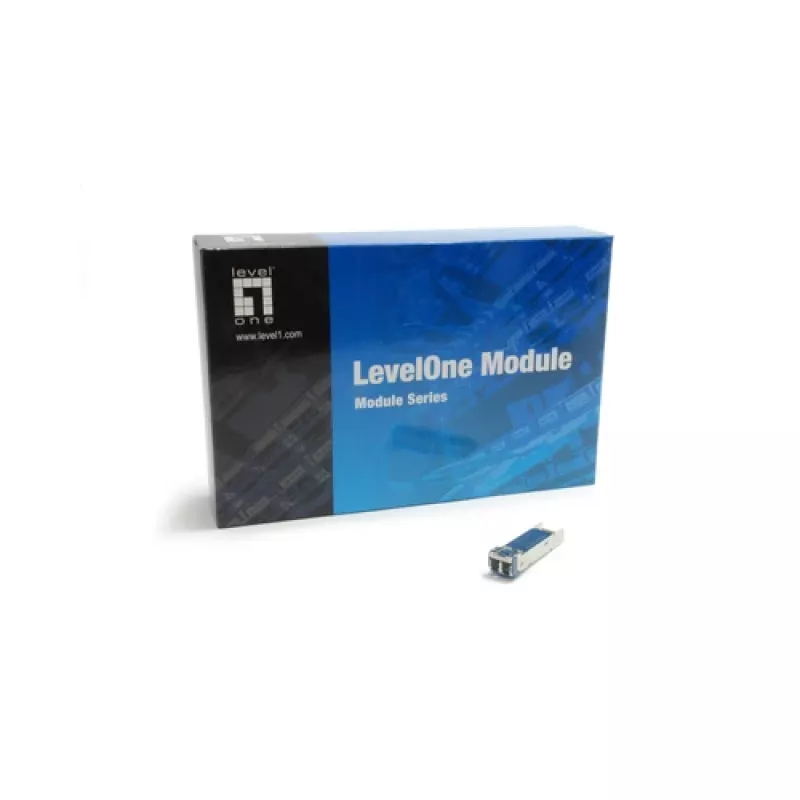

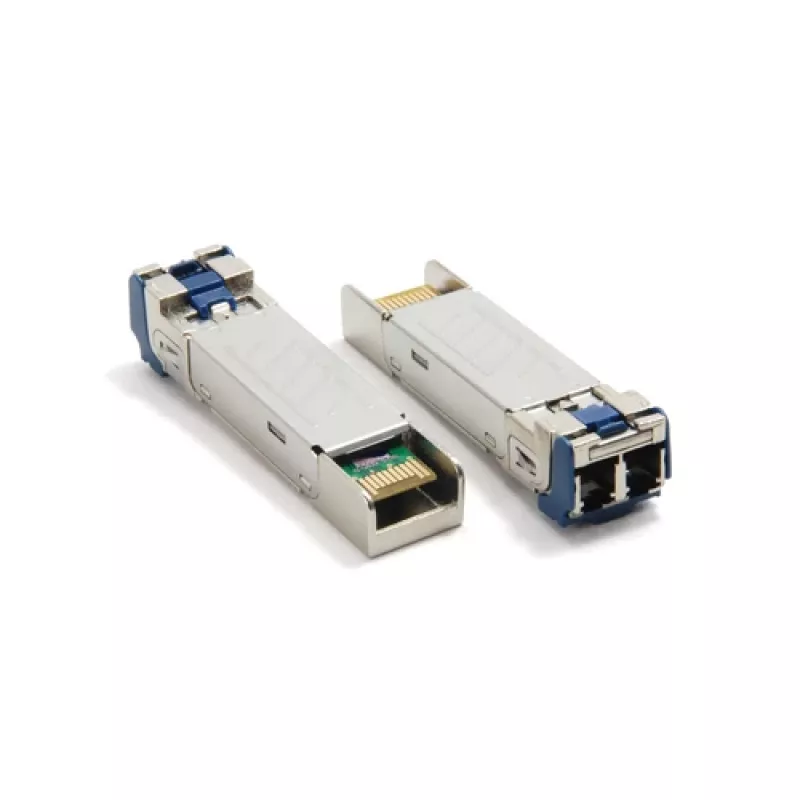

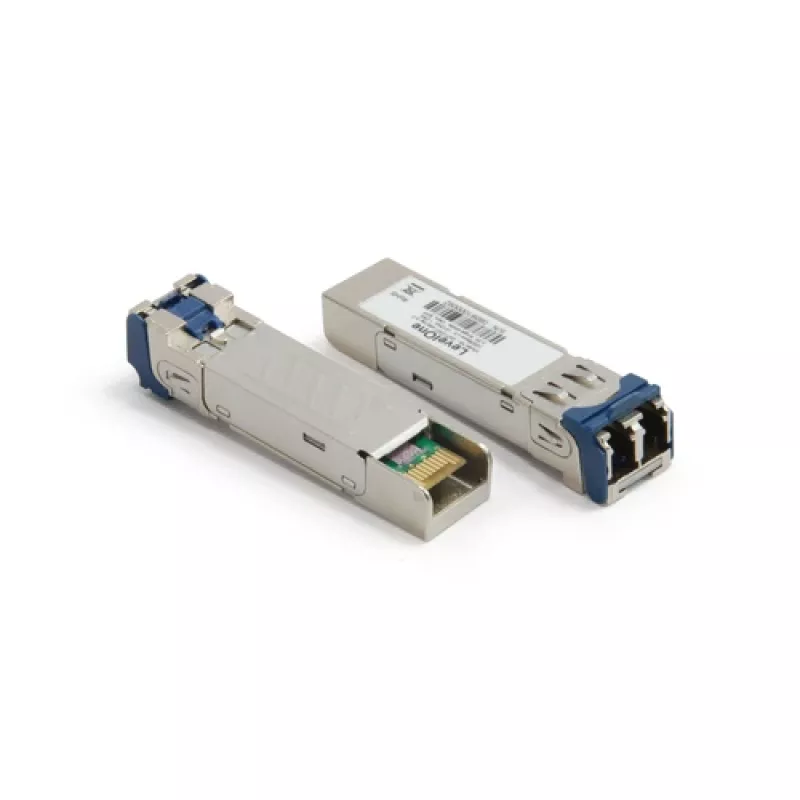

LevelOne ricetrasmettitore SFP 1.25Gbps SM Duplex LC 1310nm 10km

The LevelOne SFP Transceiver is a high-performance, hot-pluggable Small Form-Factor Pluggable (SFP) module designed for Gigabit Ethernet and 1G Fibre Channel applications. It operates on single-mode fiber (SMF) at a wavelength of 1310 nm, providing reliable data transmission up to 10 km. With a data rate of 1.25 Gbps and Duplex LC connector, this transceiver is ideal for enterprise networks, data centers, and telecommunications infrastructure.

Advantages

This SFP transceiver offers exceptional reliability and performance, featuring Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Its hot-swappable design allows for easy installation and maintenance without disrupting network operations. Compliant with MSA and RoHS standards, it ensures interoperability and environmental safety.

Suitable for

• Gigabit Ethernet networks
• 1G Fibre Channel storage area networks
• Enterprise and campus backbone connections
• Data center interconnects
• Telecommunications and ISP infrastructure

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max Transmission Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: Duplex LC
• DDM/DOM Support: Yes
• Transmitter Type: FP Laser
• Receiver Type: PIN Photodiode
• Power Supply Voltage: 3.3 V
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Hot-Swappable: Yes
• Compliance: MSA, RoHS

Recommendations

For optimal performance, pair this transceiver with OS1 or OS2 single-mode fiber cables. Ensure compatibility with your network equipment's SFP slot. This module is a cost-effective solution for extending network reach up to 10 km.
