LevelOne ricetrasmettitore SFP 1.25Gbps SM duplex LC 1310nm 20km

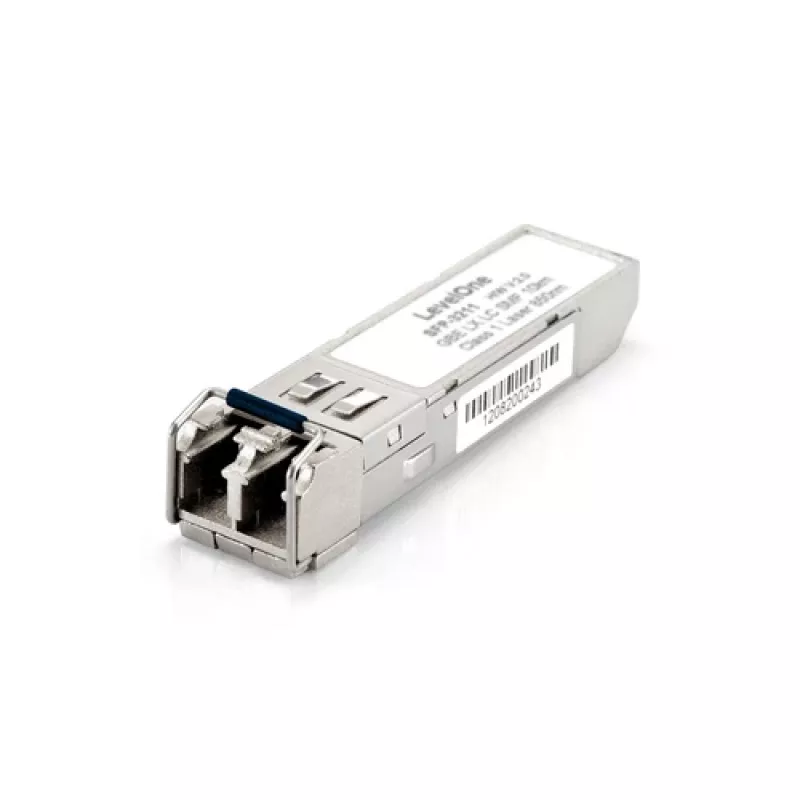

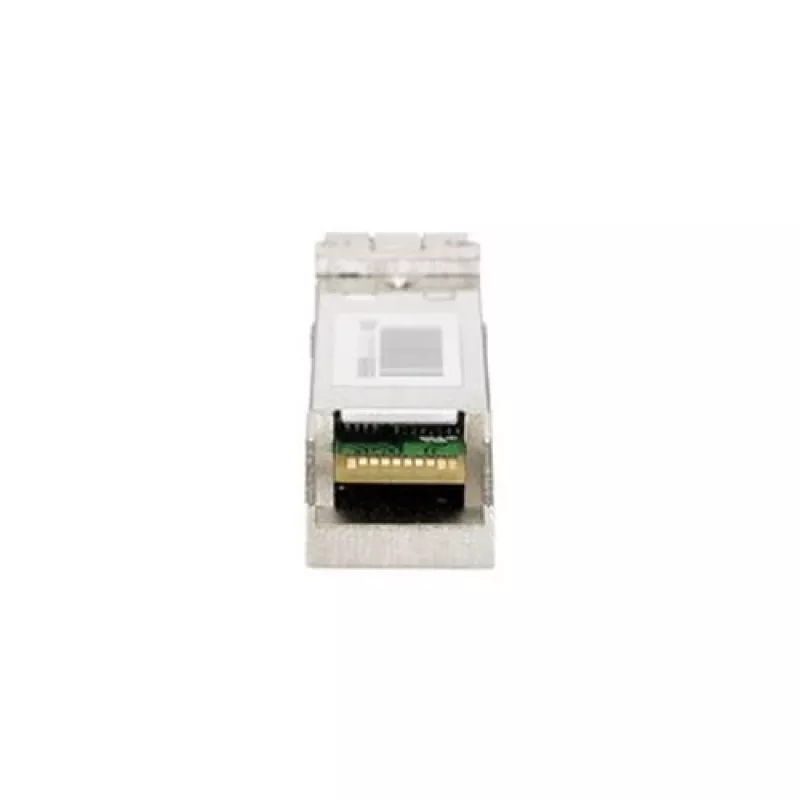

The LevelOne SFP Transceiver (Model 85176200) is a high-performance, hot-pluggable Small Form-Factor Pluggable (SFP) module designed for Gigabit Ethernet and Fiber Channel applications. It operates at a data rate of 1.25 Gbps over single-mode fiber (SMF) with a duplex LC connector, supporting transmission distances up to 20 km at a wavelength of 1310 nm. This transceiver complies with IEEE 802.3z and SFP MSA standards, ensuring broad compatibility with networking equipment.

Advantages

Reliable and cost-effective solution for long-distance fiber optic connections. Features Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. Low power consumption (<1 W) and wide operating temperature range (0°C to 70°C) make it suitable for various environments.

Suitable for

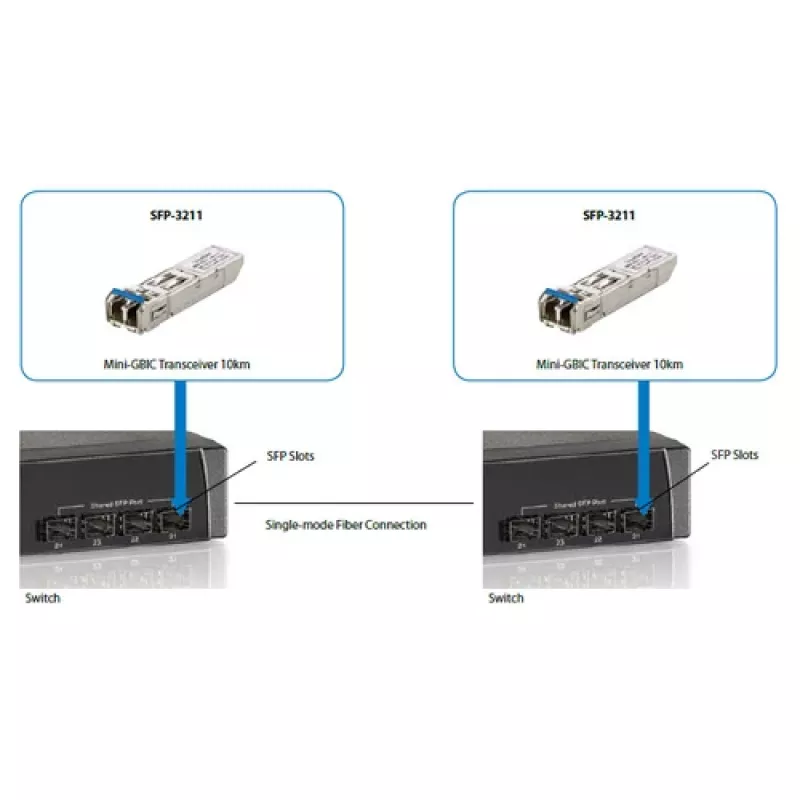

• Gigabit Ethernet networks requiring single-mode fiber connections
• Fiber Channel storage area networks
• Telecommunications and data center uplinks
• Metropolitan area network (MAN) applications

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-LX
• Fiber Type: Single-Mode Fiber (SMF)
• Wavelength: 1310 nm
• Max Transmission Distance: 20 km

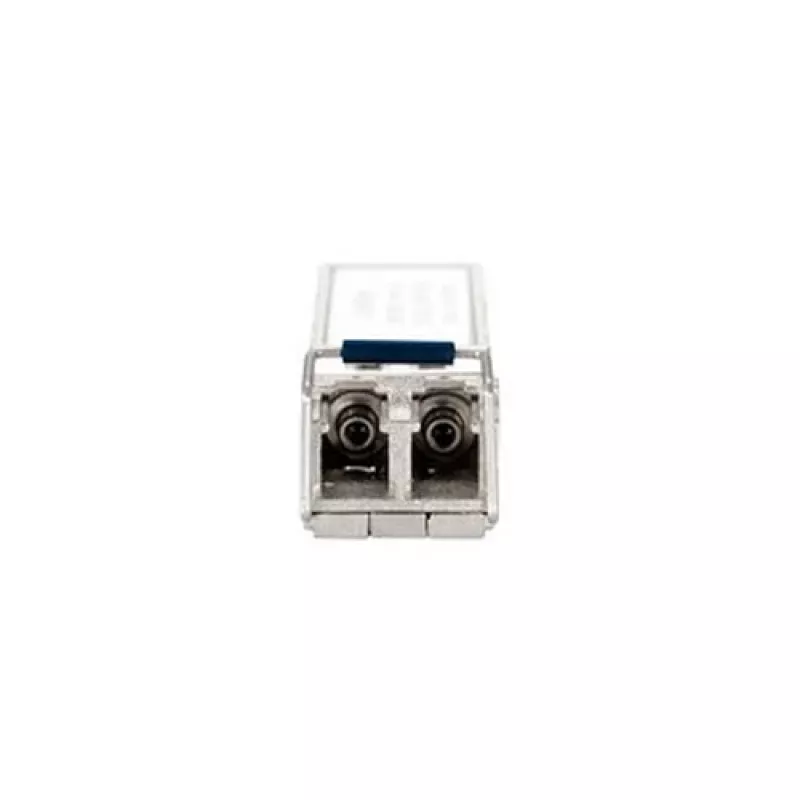

• Connector Type: Duplex LC
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Transmitter Type: FP Laser
• Receiver Type: PIN Photodiode
• Power Supply Voltage: 3.3 V
• Power Consumption: < 1 W
• Operating Temperature Range: 0°C to 70°C
• Storage Temperature Range: -40°C to 85°C
• Compliance: IEEE 802.3z, SFP MSA, RoHS
• Optical Power (Tx): -9.5 to -3 dBm
• Receiver Sensitivity (Rx): -22 dBm
• Link Budget: 12.5 dB

Recommendations

For optimal performance, use with compatible LevelOne switches and media converters. Ensure proper fiber cable cleaning before installation.
