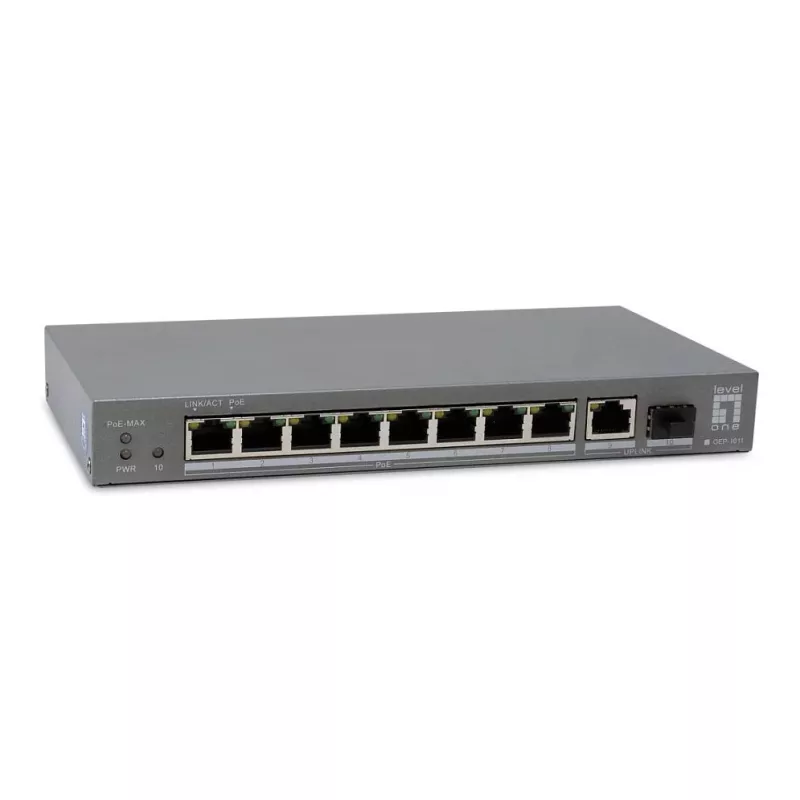

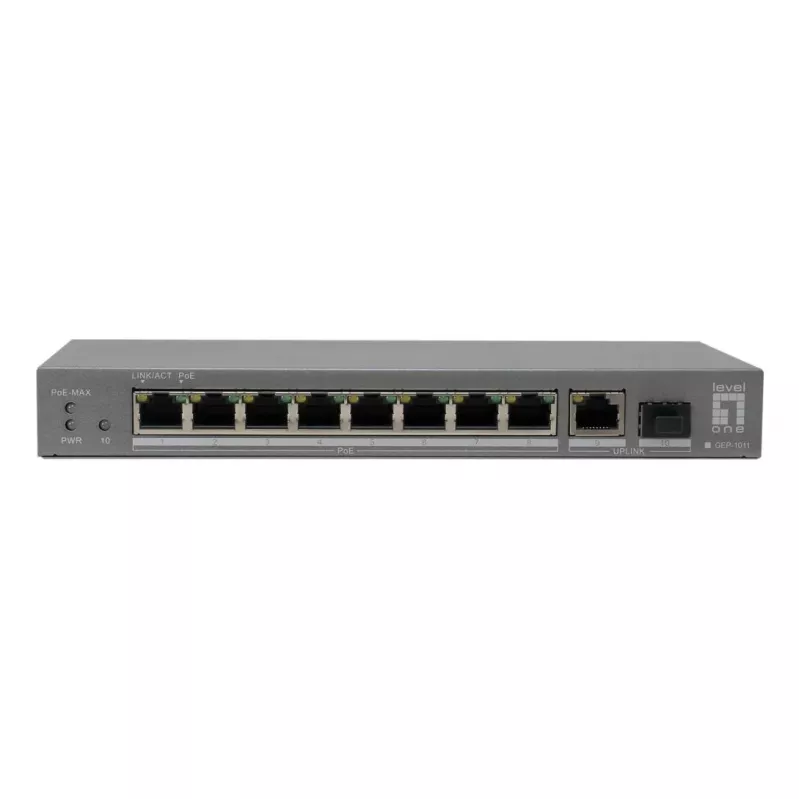

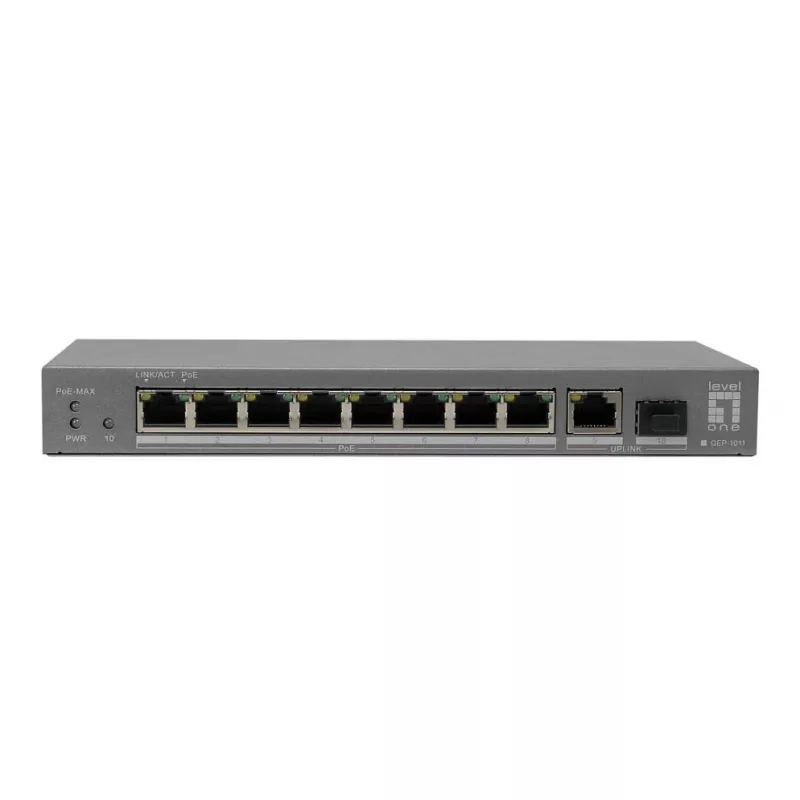

LevelOne switch PoE+ 8xGE PoE/1xGE/1xSFP 120W unmanaged plastica

The LevelOne PoE+ Switch GEP-1011 is an unmanaged switch designed for small to medium-sized businesses and home offices. It provides 8 Gigabit PoE+ ports and 1 Gigabit uplink port plus 1 SFP slot, delivering a total PoE power budget of 120W. The plastic housing and fanless design ensure silent operation and easy desktop or wall-mount installation.

Advantages

This switch simplifies network expansion by powering PoE devices such as IP cameras, VoIP phones, and wireless access points directly through the Ethernet cable, eliminating the need for separate power supplies. Its plug-and-play unmanaged design requires no configuration, making it ideal for quick deployment. The fanless operation ensures zero noise, perfect for noise-sensitive environments.

Suitable for

• Small offices and home offices needing reliable network connectivity
• Surveillance systems with PoE IP cameras
• VoIP phone deployments
• Wireless access point installations

Key specifications

• 8x Gigabit PoE+ ports (IEEE 802.3af/at) with up to 30W per port
• 1x Gigabit RJ45 uplink port + 1x Gigabit SFP slot
• Total PoE budget: 120W
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9 KB
• Housing: Plastic, fanless
• Power: External adapter (53V DC)
• Mounting: Desktop or wall-mount

Recommendations

For optimal performance, use Category 5e or higher Ethernet cables. Ensure total PoE power consumption does not exceed 120W. This switch is not rack-mountable; consider a metal rackmount model if required.
