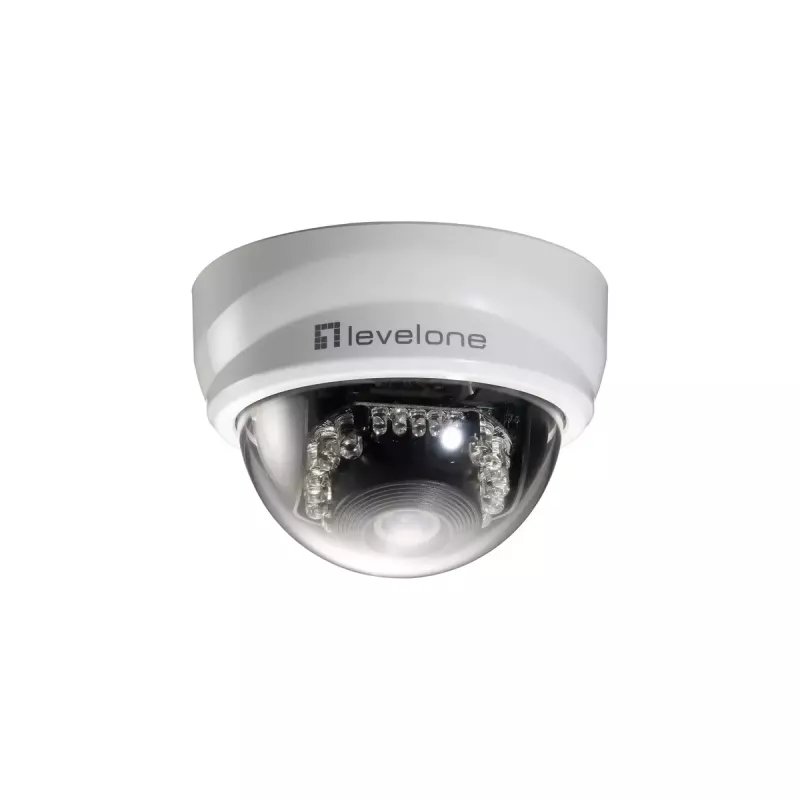

LevelOne Telecamera IP Fixed Dome, 2 megapixel, 802.3af PoE, LED IR

The LevelOne FCS-3101 is a compact 2-Megapixel IP security camera designed for flexible installation in homes and offices. It features a fixed 4 mm lens, CMOS sensor and an IR-cut filter with built-in infrared illuminators to deliver clear 1920 x 1080 images both day and night. The camera supports wired Ethernet with PoE (IEEE 802.3af) and offers on-board storage via a micro SD/SDHC slot and USB interface, plus integrated audio through a built-in microphone.

Advantages

The FCS-3101 provides high-definition 2-Megapixel video with H.264/MPEG-4/MJPEG compression and dual simultaneous streams for versatile recording and remote viewing. Removable IR-cut filter and infrared LEDs enable night monitoring up to 10 m. Additional features include Level1DNS™ service, motion auto-tracking, alarm and sensor support, event-triggered email and FTP upload, plus free 64-channel monitoring software and mobile app support.

Suitable for

• Indoor surveillance of homes and small offices
• Desk or ceiling mounting in retail or reception areas
• Areas requiring day/night monitoring with audio
• Networked PoE installations where wired connectivity is preferred

Key specifications

• Resolution: 2-Megapixel (1920 x 1080)
• Lens: 4 mm fixed focal length
• Sensor: CMOS, minimum illumination 1 lx
• Compression formats: H.264 / MPEG-4 / MJPEG
• Frame rate: up to 30 fps
• Night vision: removable IR-cut filter, built-in IR LEDs up to 10 m
• Storage: micro SD/SDHC card slot and USB interface
• Audio: built-in microphone
• Connectivity: Ethernet (Wired), PoE (IEEE 802.3af)
• Mounting: desk or ceiling
• Colours: black, white
• Power: 12 V DC or PoE

How to use

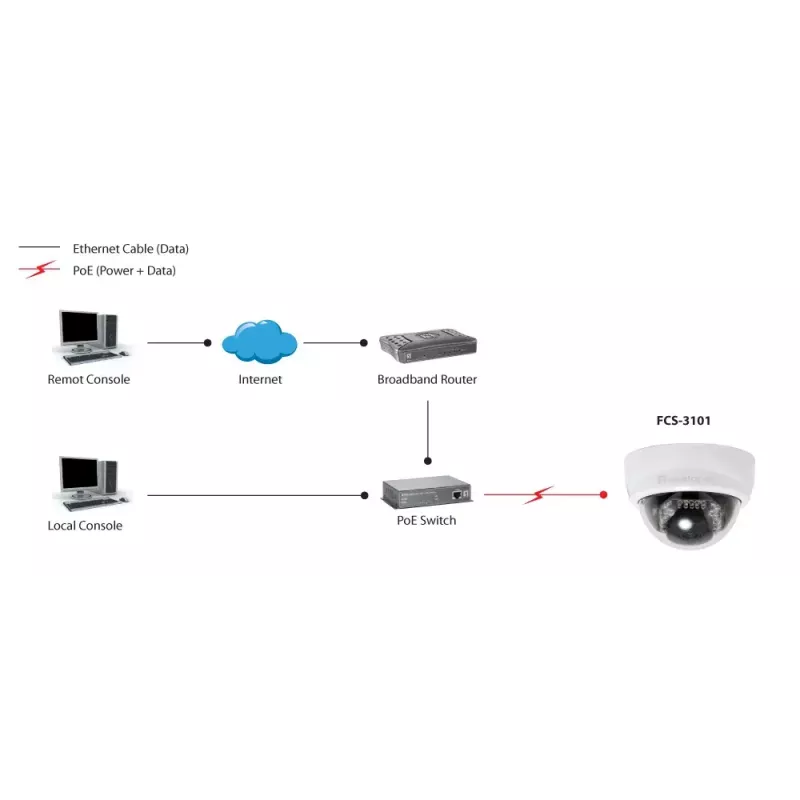

Mount the camera on a desk or ceiling using the appropriate hardware, connect it to the network via Ethernet and power it using PoE or a 12 V DC adapter. Insert a micro SD/SDHC card for local recording if required. Configure the camera through its web interface or using the supplied monitoring software, set desired compression, frame rate and motion detection parameters, and enable email or FTP alerts for event notifications.

Recommendations

Place the camera at a height and angle that provides an unobstructed field of view; ensure IR LEDs are not blocked for optimal night performance. Use PoE for simplified installation and reliable power, and keep firmware up to date for security and feature improvements.
