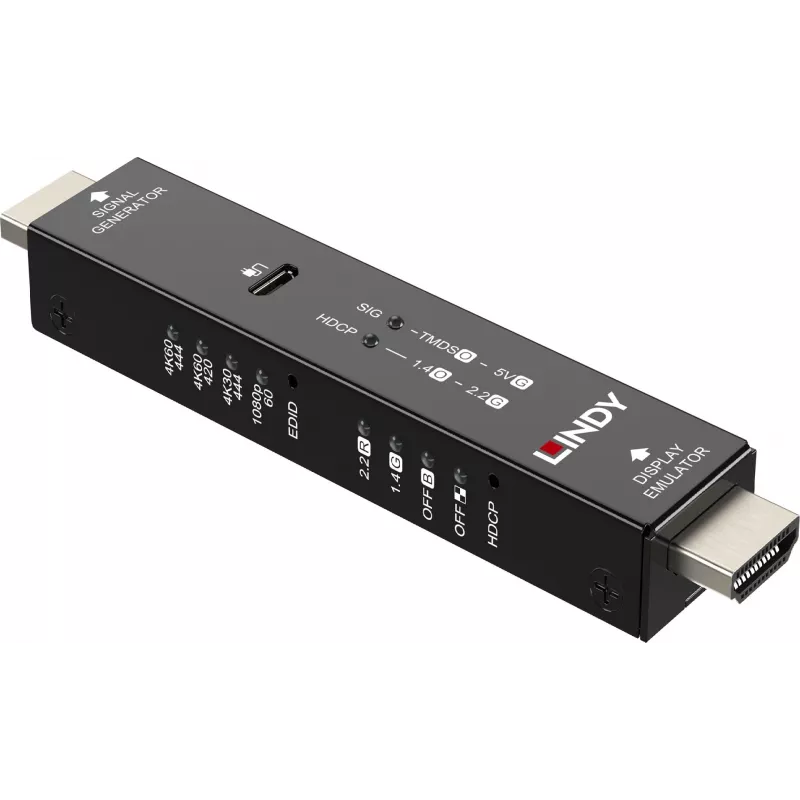

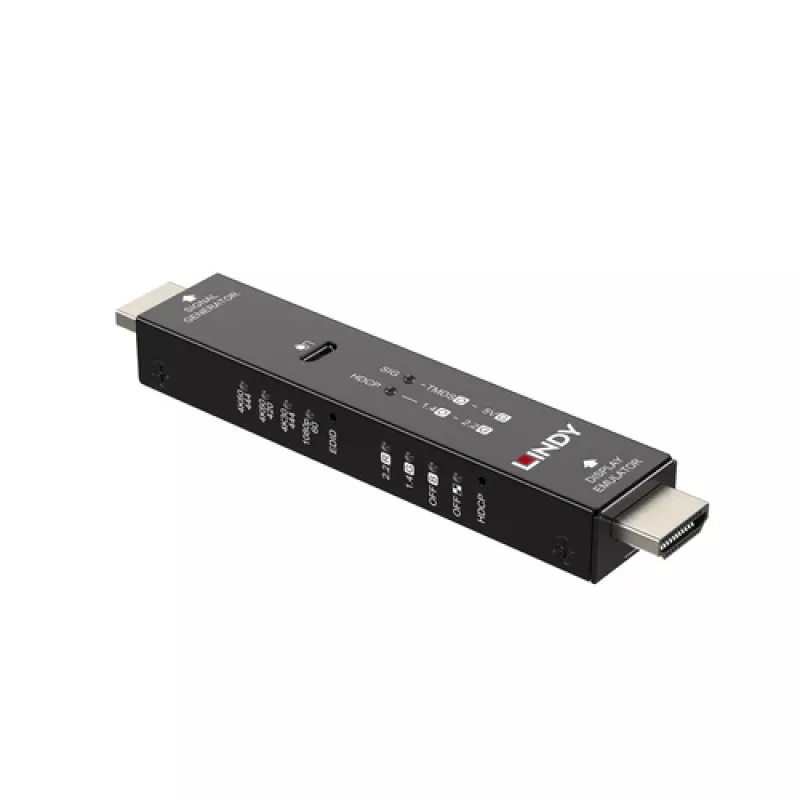

LINDY HDMI 4K60 generatore di segnale ed emulatore display 32683

When installing or troubleshooting HDMI-based AV systems, the lack of a reliable video source or display can bring a project to a standstill. The LINDY HDMI 4K60 Signal Generator & Display Emulator solves this by combining two essential tools in one compact device. It generates high-resolution test patterns to verify signal integrity and emulates a display to read and manage EDID data, ensuring seamless compatibility between sources and displays.

Who is it for

This device is ideal for AV installers, integrators, and technicians who need to test HDMI signal paths, diagnose EDID issues, or benchmark displays without carrying bulky equipment. It is equally useful for home theatre enthusiasts and IT professionals managing digital signage or conference room setups.

Main features

• Generates 14 built-in test patterns including solid colours, crosshatch, and checkerboard for comprehensive display testing.
• Supports HDMI 2.0 with up to 4K UHD (3840x2160) @60Hz and 4K DCI (4096x2160) @60Hz, 18Gbps bandwidth, and HDCP 2.2.
• Functions as a display emulator with 15 pre-set EDID modes and 1 user-defined mode for precise EDID management.
• Supports HDR10 and a wide range of audio formats including LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.
• Compact metal housing with push-button control and LED indicators for easy operation in the field.
• Powered via Micro-USB (5V DC), making it convenient to use with a USB power bank or laptop.

Specifications

• HDMI Standard: HDMI 2.0
• Maximum Resolution: 4K UHD (3840x2160) @60Hz 4:4:4 8bit, 4K DCI (4096x2160) @60Hz 4:4:4 8bit
• Maximum Bandwidth: 18Gbps
• HDCP Support: HDCP 2.2
• HDR Support: HDR10
• Audio Support: Up to 7.1 channel LPCM, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
• Test Patterns: 14 (solid colours, crosshatch, checkerboard, etc.)
• EDID Modes: 15 pre-set, 1 user-defined
• Connectors: 1 x HDMI Type A Female, 1 x Micro-USB Female (power/control)
• Power Input: 5V DC / 1A via Micro-USB
• Housing Material: Metal
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20-90% RH (non-condensing)
• Compliance: CE, FCC, RoHS, REACH

Tips

Use the signal generator mode to quickly verify that every link in your HDMI chain supports the required resolution and bandwidth. When facing compatibility issues, switch to display emulator mode to read the source's EDID and adjust settings accordingly. For portable testing, power the unit from a USB power bank to eliminate the need for a wall outlet.
