Livella laser a linee/punti Einhell TC-LL 1

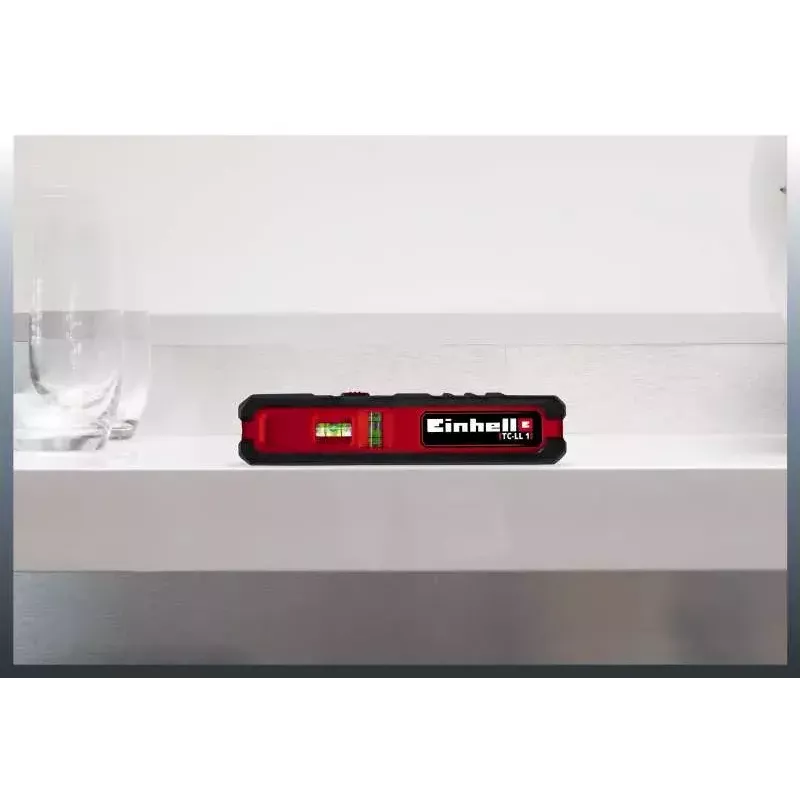

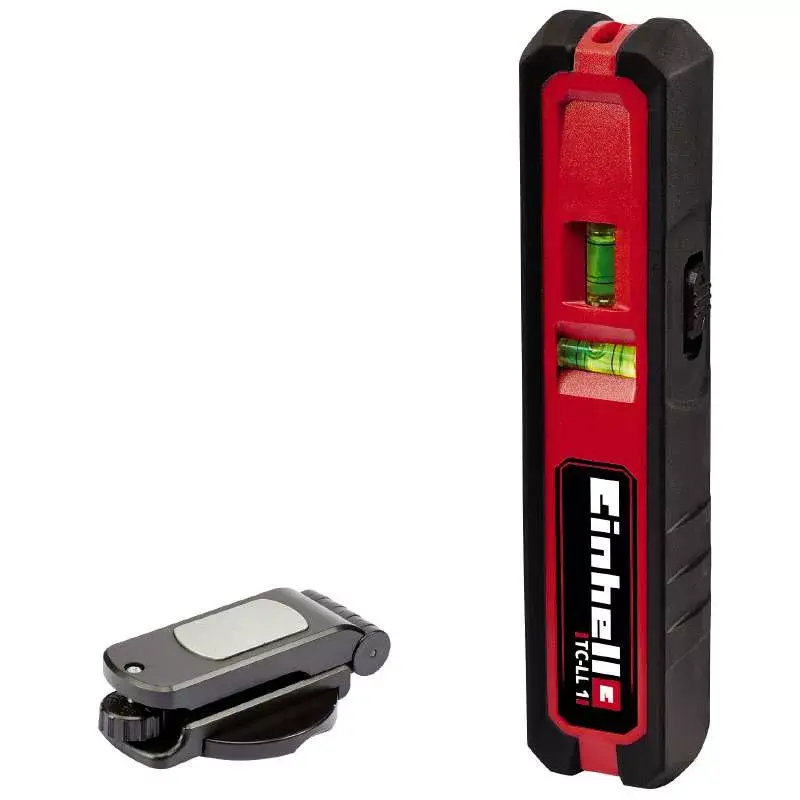

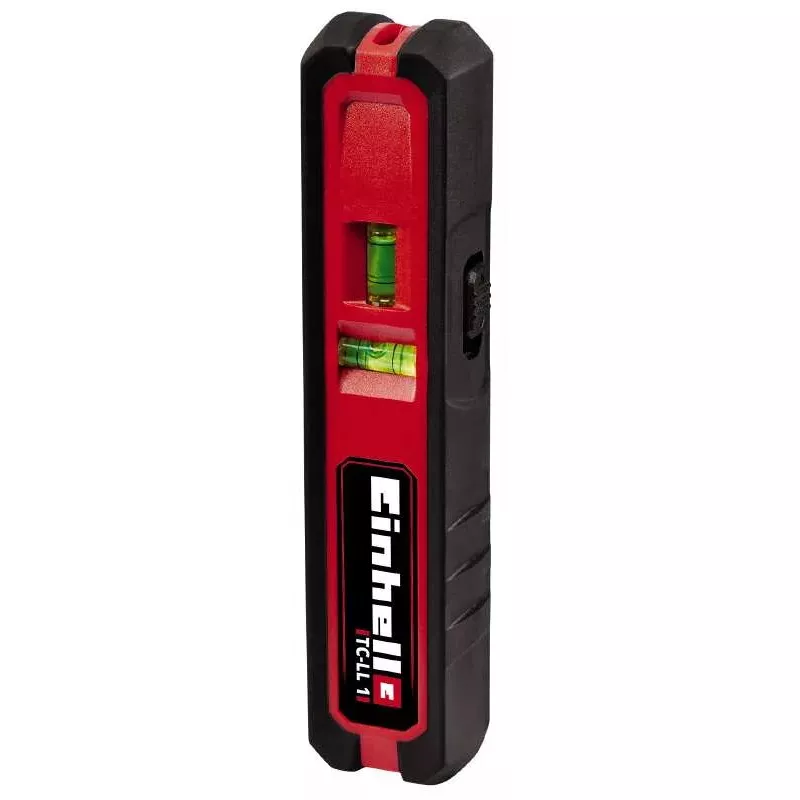

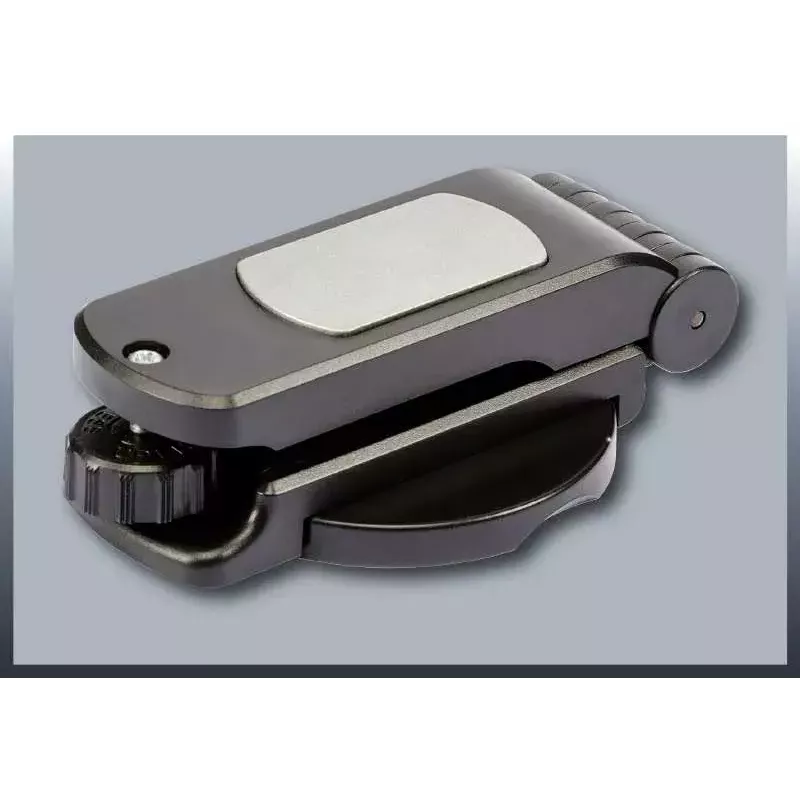

The Einhell TC-LL 1 line/point level laser is a compact measuring tool designed for accurate alignment tasks in the home, on site or during renovations. It projects horizontal, vertical and diagonal lines as well as a spot laser for height transfer, and can also be used as a conventional spirit level. The device features integrated spirit levels and a flexible wall bracket to support a range of installation and marking jobs.

Advantages

The TC-LL 1 provides high levelling accuracy of ±0.5 mm/m and a practical working range up to five meters in typical indoor use. It combines line and point laser functions with the option to operate as a classic spirit level, and includes a soft-grip housing and wall bracket for comfortable, stable handling. The unit runs on 2×1.5 V AAA batteries (not included).

Suitable for

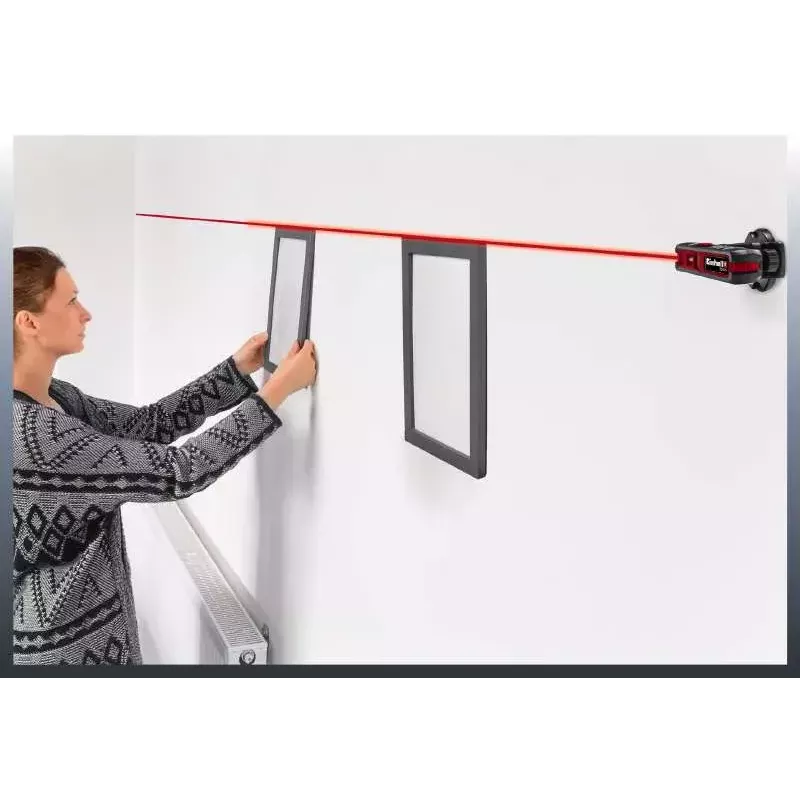

• Aligning shelves, cabinets and furniture
• Marking installation lines for wall fittings and switches
• Transferring heights between floors or walls
• General indoor levelling and layout work in renovation and construction

Key specifications

• Brand: EINHELL
• Model: TC-LL 1 (MPN 2270095)
• EAN: 4006825616217
• Laser type: Line and point laser, 650 nm laser diode
• Accuracy: ±0.5 mm/m
• Typical working range (indoor): up to 5 m
• Power supply: 2 × 1.5 V AAA batteries (not included)

How to use

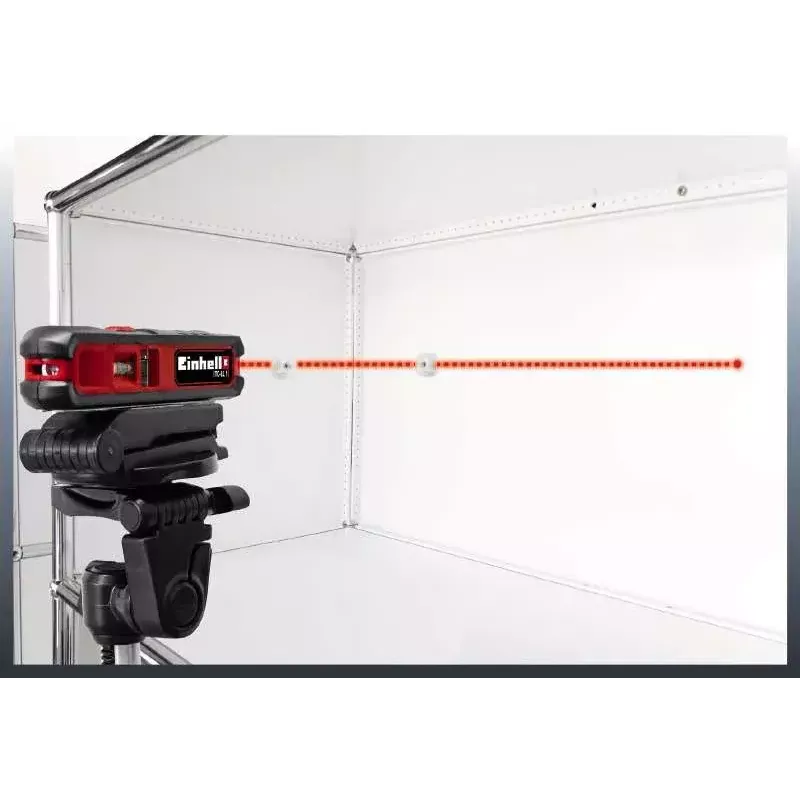

Place the TC-LL 1 on a flat surface or mount it on the included wall bracket. Switch on the desired laser function — line, diagonal or spot — and position the device so the integrated spirit levels indicate correct alignment. Use the spot laser to transfer precise heights and the line laser to mark continuous guide lines. Adjust the placement until the projected lines or point match the required reference points, then secure fixtures or make markings as needed.

Recommendations

For best indoor results keep the working distance within the specified range and avoid direct sunlight on the laser beam. Use fresh AAA batteries and check the integrated spirit levels before beginning precision work.
