EINHELL TE-LL 360 G laser a linee incrociate con linee laser verdi e rosse, nero — modello 2270119

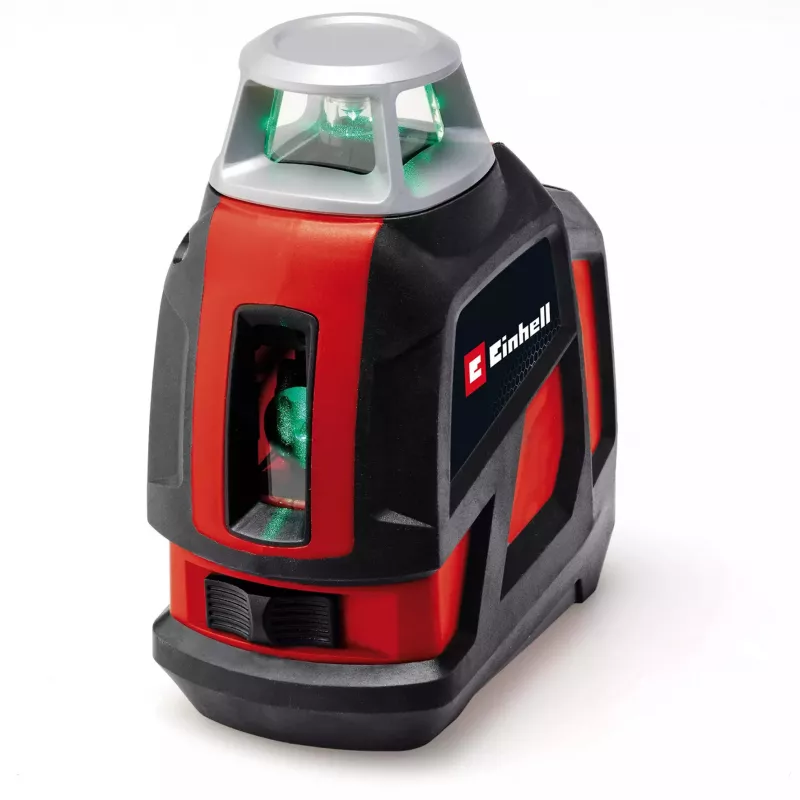

The Einhell TE-LL 360 G line level is a compact cross-line laser for interior alignment, tiling and light construction layout tasks. It projects a full 360° horizontal line plus a vertical line with green laser diodes (wavelength 510–530 nm, output ≤ 1 mW) and offers a maximum working range of up to 40 m. The device features self-levelling with a ±4° range and a levelling accuracy of ±0.5 mm/m. Supplied with a 1/4" tripod thread and powered by four AA batteries, the unit includes a height-adjustable wall bracket and a storage pouch for transport and protection.

Advantages

The TE-LL 360 G provides clearly visible green laser lines for improved visibility in indoor environments and fast alignment across an entire room thanks to its 360° horizontal projection. Automatic self-levelling completes alignment in under 5 seconds and signals when the inclination exceeds the permitted ±4° range. The integrated digital spirit level supports precise setup while the 1/4" tripod thread and included height-adjustable wall mount increase mounting flexibility. The compact design and soft-grip surface simplify handling on-site.

Suitable for

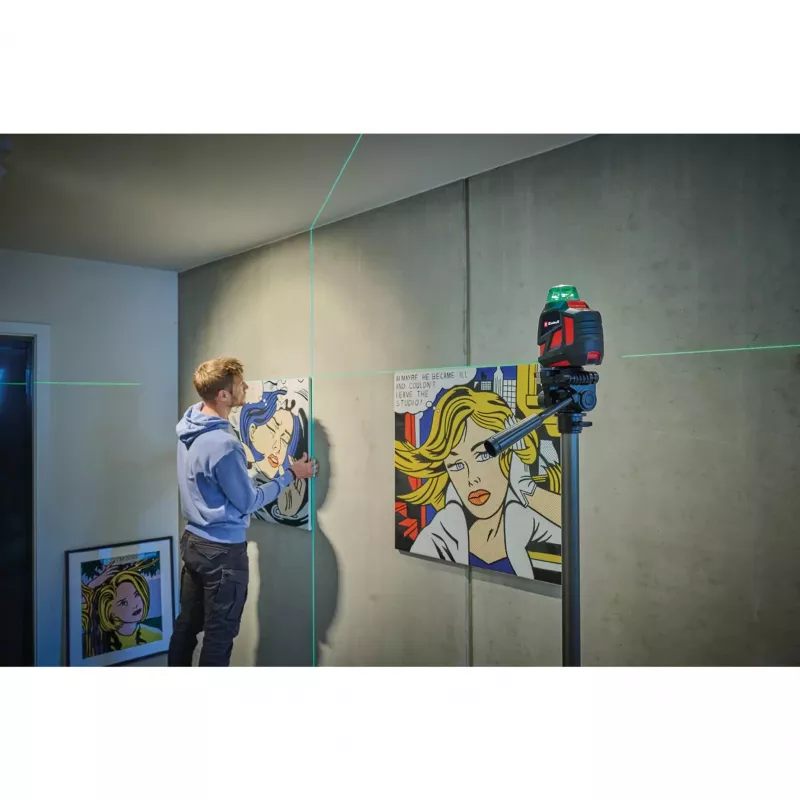

• Interior wall and ceiling alignment
• Tiling and bathroom fittings alignment
• Installing shelves, cabinets and picture rails
• Light renovation and restoration layout
• Mounting and positioning of fixtures and fittings

Key specifications

• Laser type: green cross-line laser (wavelength 510–530 nm)
• Maximum working range: 40 m
• Output class: Class II (≤ 1 mW)
• Levelling accuracy: ±0.5 mm/m

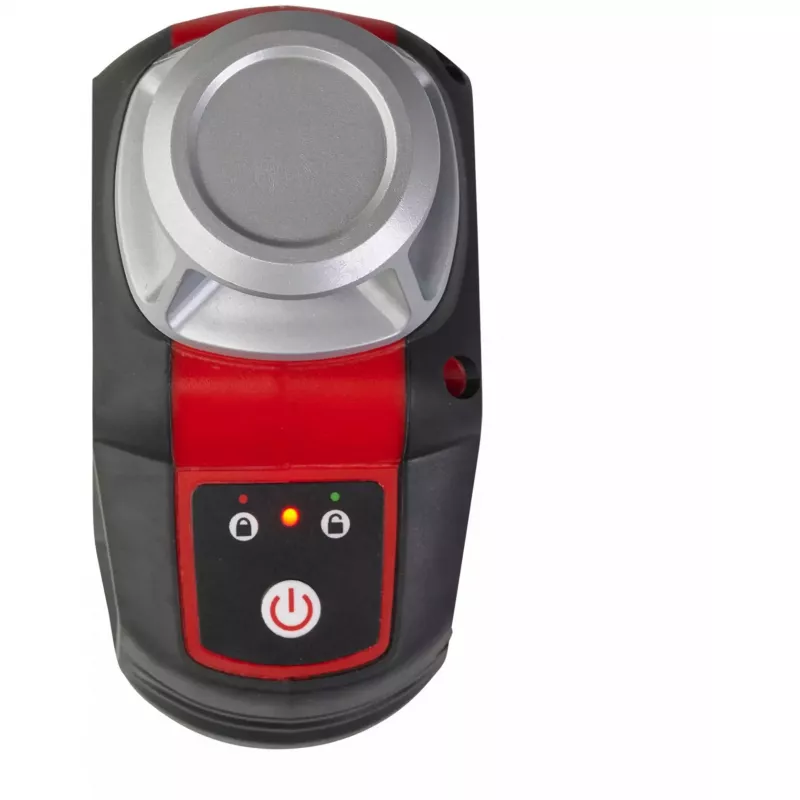

• Self-levelling range: ±4° (automatic, with LED warning beyond range)
• Levelling time: typically under 5 seconds
• Power supply: four AA batteries (1.5 V)

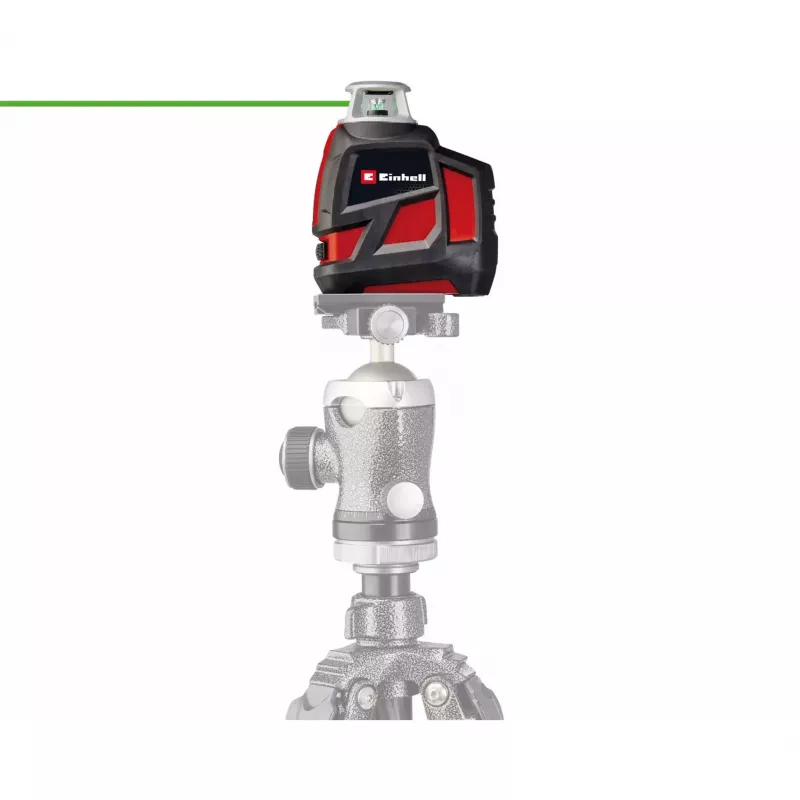

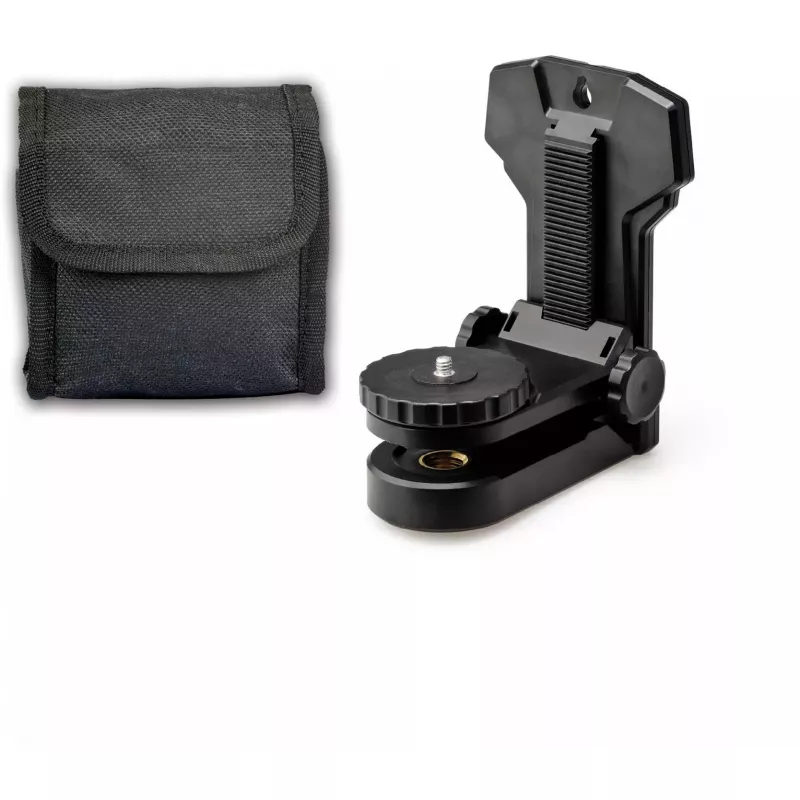

• Mounting: 1/4" tripod thread and height-adjustable wall bracket
• Weight (approx.): 310 g

How to use

Place the TE-LL 360 G on a flat surface, mount it on a tripod via the 1/4" thread, or attach it to the included height-adjustable wall bracket. Insert four AA batteries, switch on the unit and select horizontal, vertical or cross line projection using the control buttons. The device will self-level automatically; wait for the levelling process to complete (under 5 seconds). If the device detects an inclination beyond ±4°, the LED indicator will warn and lines will not be accurate until the unit is within the self-levelling range. Use the integrated digital spirit level to fine-tune orientation before marking or fixing fixtures.

Recommendations

For best visibility and accuracy, use the Einhell TE-LL 360 G indoors or in shaded conditions and keep the laser emitter and target surfaces free of dust and debris. Always check battery level before starting longer tasks and use a stable tripod or the supplied wall bracket for repeatable reference points. Observe laser safety precautions for Class II devices and avoid direct eye exposure to the beam.
