LogiLink Adattatore fibra ottica multimodale SC Duplex OM4 con flangia, viola

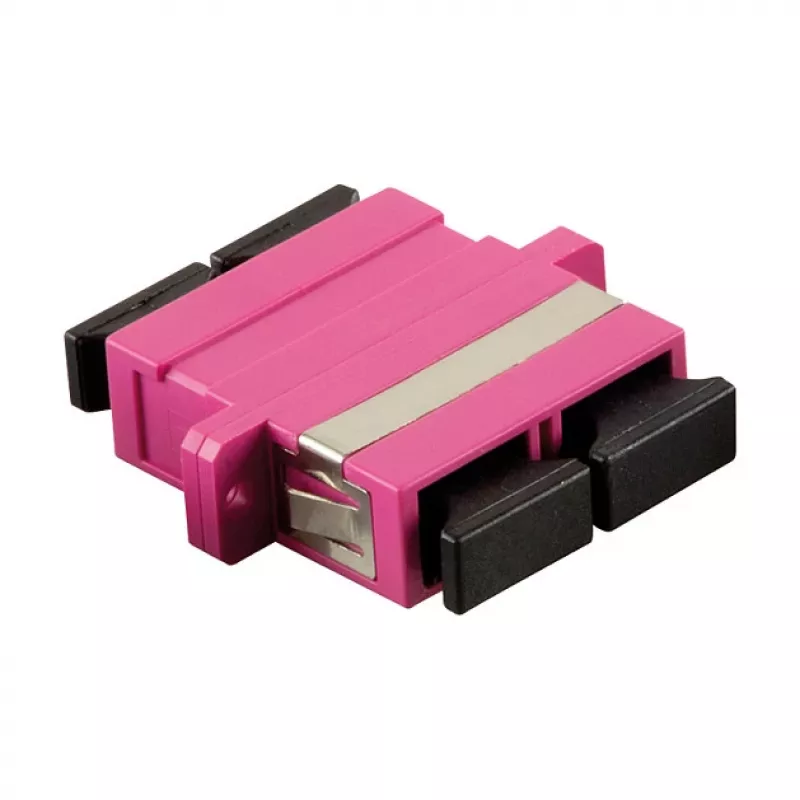

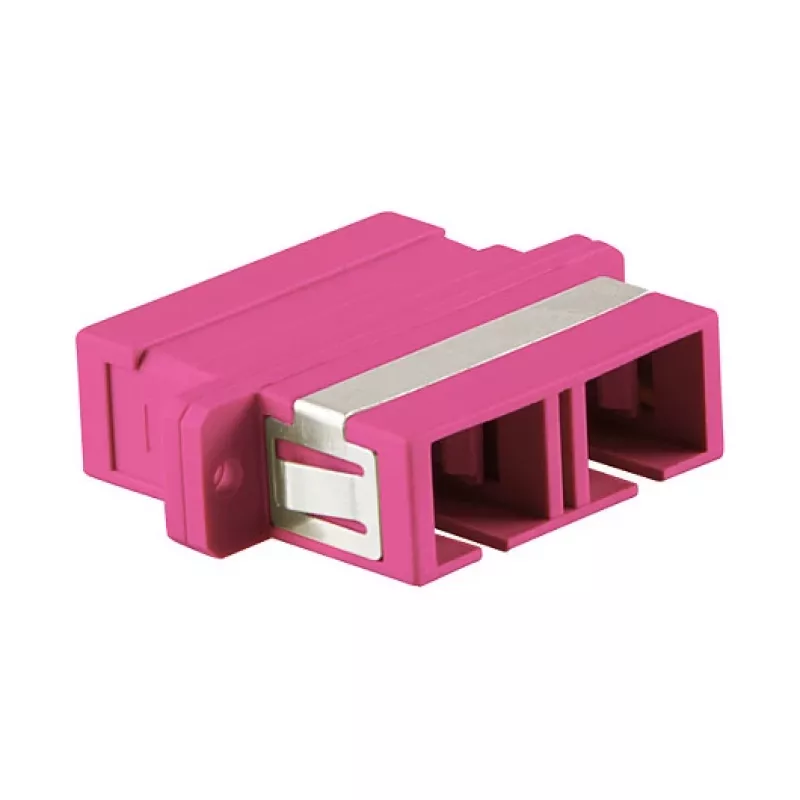

In fiber optic networks, a reliable connection point is essential to maintain signal integrity and minimize downtime. The LogiLink SC Duplex OM4 Multimode Fiber Optic Adapter with Flange, Violet, provides a precise and stable interface for joining SC connectors in patch panels, distribution boxes, and wall outlets. Its zirconia ceramic sleeve ensures low insertion loss and high durability, making it suitable for high-speed multimode applications.

Who is it for

This adapter is ideal for network installers, data center technicians, and IT professionals who need a dependable panel-mount solution for OM4 multimode fiber links. It is also suitable for enterprise and industrial environments where consistent performance and easy installation are priorities.

Main features

• SC duplex adapter with flange for secure panel mounting
• Compatible with OM4 multimode fiber, identified by violet housing
• Zirconia ceramic split sleeve for precise alignment and low insertion loss (< 0.2 dB typical)
• High durability: over 500 mating cycles
• Dust caps included to protect connectors when not in use
• RoHS and REACH compliant

Specifications

• Adapter type: SC Duplex
• Fiber mode: Multimode (OM4)
• Connector color: Violet
• Sleeve material: Zirconia ceramic
• Mounting type: Flange / Panel mount
• Insertion loss: < 0.2 dB typical
• Durability: > 500 mating cycles
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Housing material: Plastic
• Compliance: RoHS, REACH
• Application: Fiber optic patch panels, distribution boxes

Tips

For best performance, clean the adapter sleeve and connector end faces before mating. Use the included dust caps when ports are not in use to prevent contamination. This adapter is color-coded violet for OM4, so it is easy to identify in high-density installations.
