LogiLink AH0005A Adattatore HDMI 8K 90° connettore maschio a femmina 48 Gbps nero

In tight AV racks and wall-mounted displays, a standard HDMI cable often sticks out too far, causing strain or preventing the panel from sitting flush. The LogiLink AH0005A solves this by turning the connection 90 degrees, routing the cable downward or sideways for a clean, low-profile fit. It’s a simple adapter that makes a big difference in cramped installations.

Key specifications

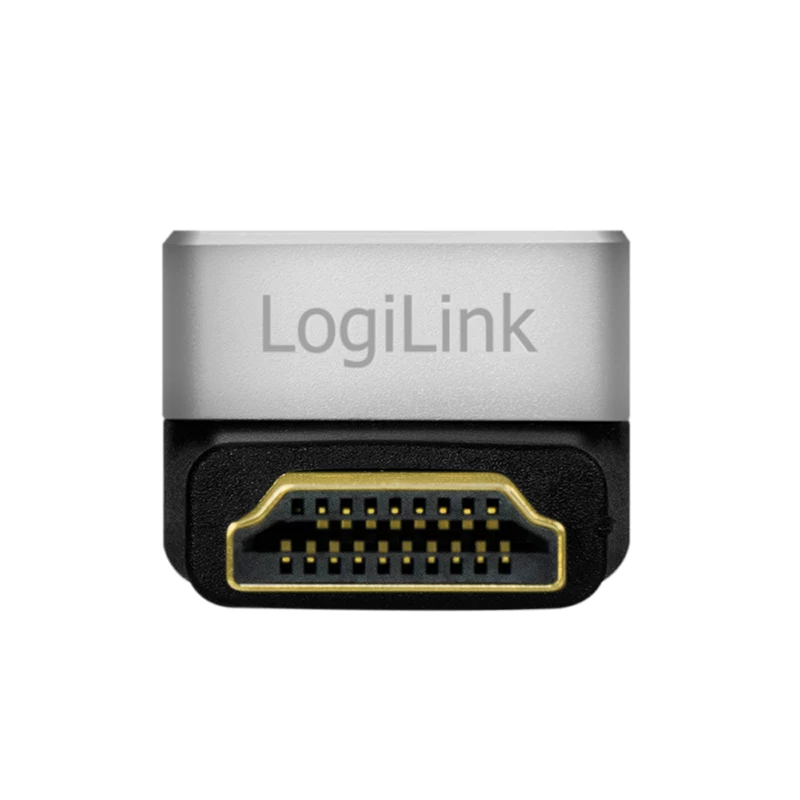

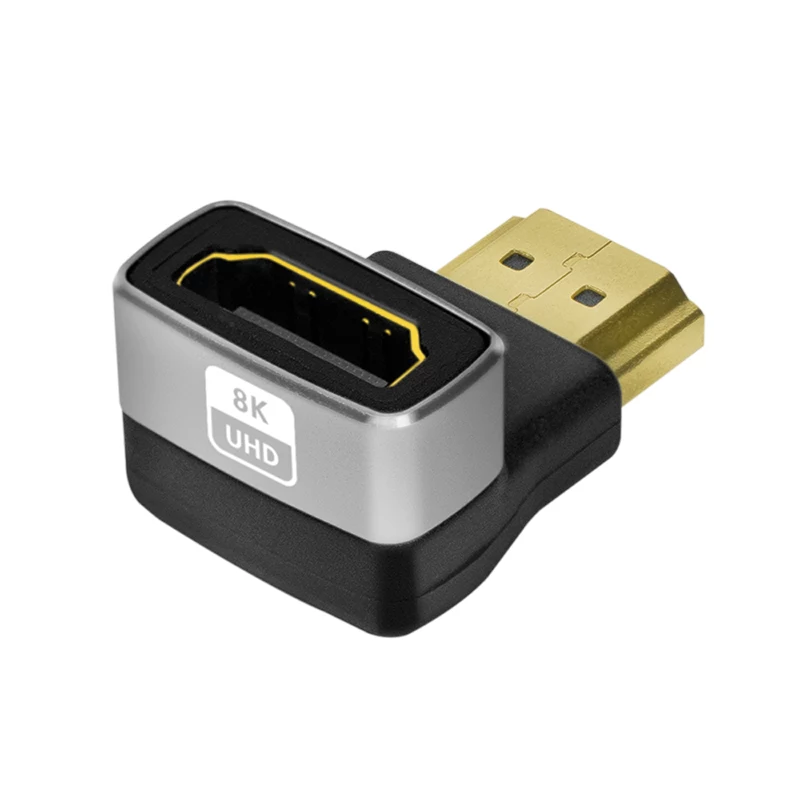

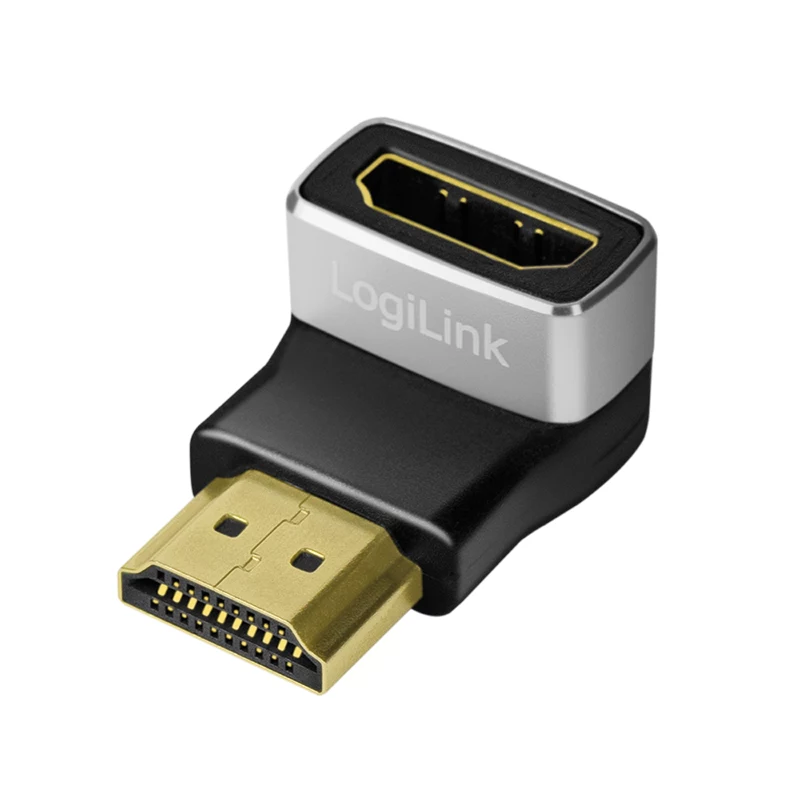

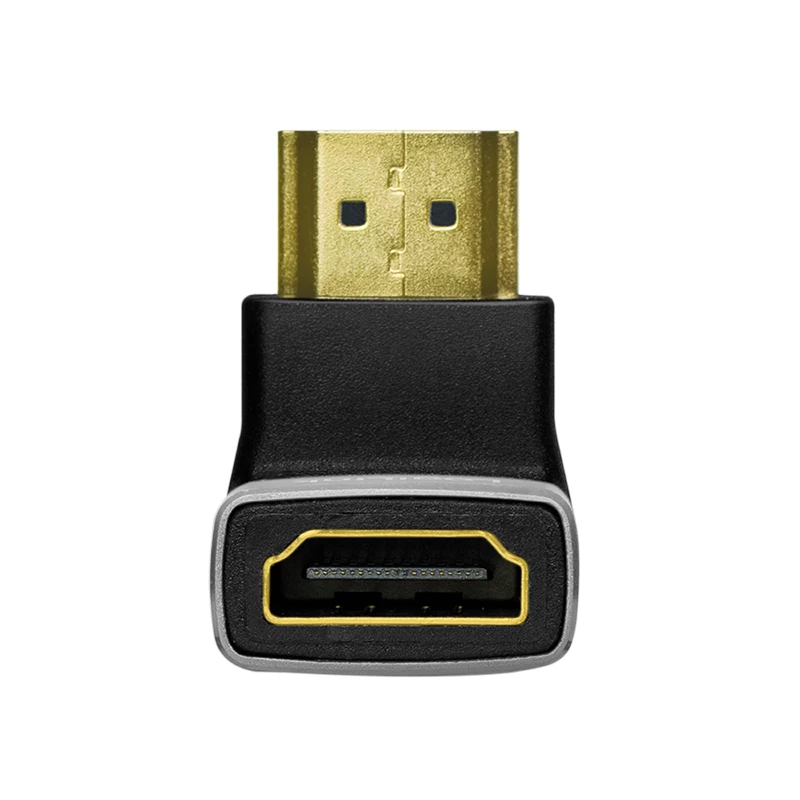

• HDMI Type A male to HDMI Type A female, right-angle (90°) orientation
• Supports HDMI 2.1 with up to 8K @ 60 Hz and 4K @ 120 Hz
• 48 Gbps bandwidth, Dynamic HDR, eARC, VRR, ALLM, QFT, QMS
• HDCP 2.3 compliant, gold-plated connectors, black housing
• Backward compatible with all previous HDMI versions

Why choose it

This adapter preserves the full HDMI 2.1 feature set while solving a physical space problem. The right-angle design reduces cable bend radius and stress on ports, extending the life of your equipment. Gold-plated contacts resist corrosion and maintain signal integrity, ensuring reliable 8K performance even in demanding setups.

Ideal use cases

• Wall-mounted TVs where the HDMI port faces the wall
• AV receivers and media players in shallow cabinets
• Gaming consoles connected to monitors with limited rear clearance
• Digital signage and video walls with tight spacing

Good to know

The adapter is passive and requires no external power. Its compact size and durable construction make it suitable for both permanent installations and portable kits. It works with any standard HDMI cable, so you can keep your existing cabling and simply add the angle where needed.
