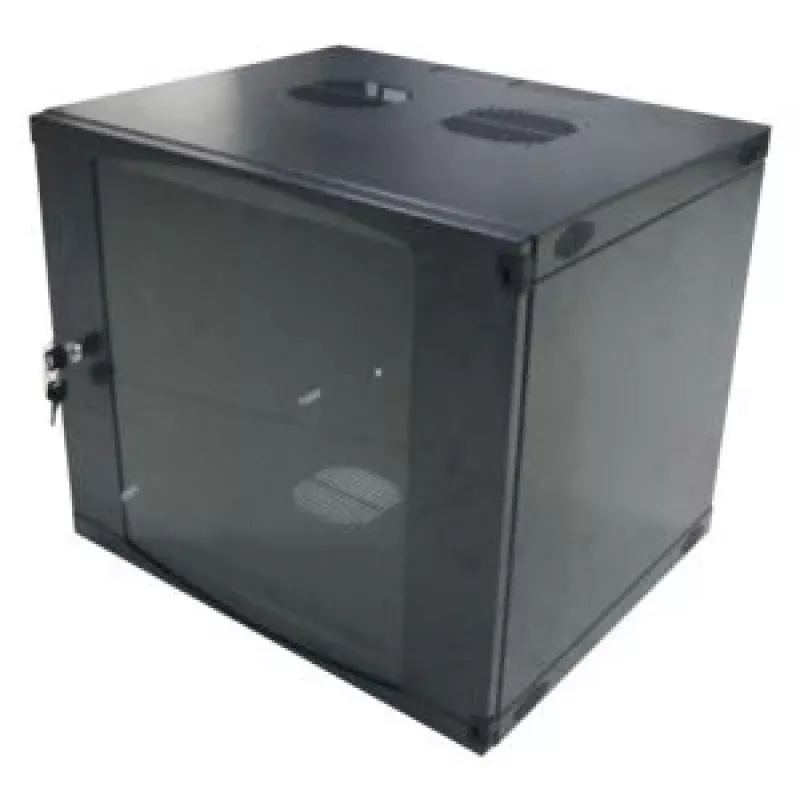

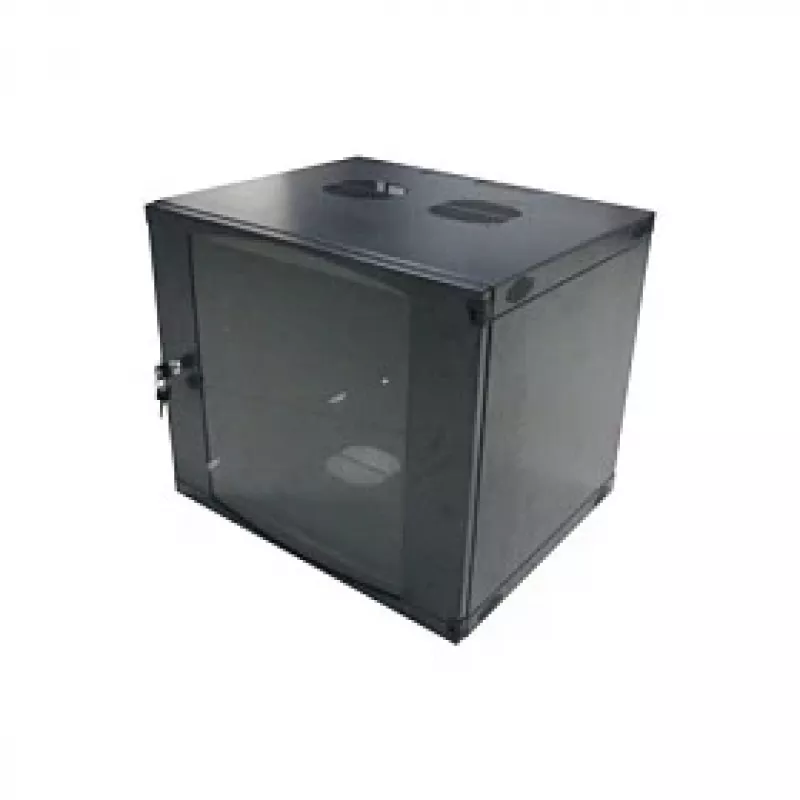

LogiLink Armadio a parete singolo 19" 6U, flat pack, nero (RAL 9005)

With a static load capacity of 60 kg and a tempered glass front door, this 6U wall-mount cabinet secures your 19-inch equipment in a sleek black enclosure. The flat-pack design allows for efficient shipping and straightforward self-assembly, making it ideal for small offices, retail spaces, or home networks where floor space is at a premium.

Overview

The LogiLink 6U wall-mount cabinet is a single-section enclosure constructed from SPCC cold rolled steel with a durable powder-coated finish in black (RAL 9005). It accommodates standard 19-inch rack equipment with adjustable mounting rails, providing flexibility for various device depths. The cabinet includes a lockable tempered glass front door that opens 180 degrees for easy access, while fixed side panels and top/bottom cable entry points with brush strips ensure a clean and organized installation. Passive ventilation through perforated top and bottom panels helps maintain optimal operating temperatures.

What stands out

• 60 kg static load capacity for heavy equipment
• Lockable tempered glass door with 180° opening
• Flat-pack design reduces shipping cost and storage space
• Adjustable 19" mounting rails for flexible installation
• Top and bottom cable entry with brush strips for tidy cabling
• Passive ventilation via perforated panels

Technical details

• Rack units: 6U
• Type: Wall-mount enclosure, single section
• Material: SPCC cold rolled steel, powder coated
• Colour: Black (RAL 9005)
• Front door: Tempered glass, lockable, 180° opening
• Side panels: Fixed
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive (perforated top/bottom)
• Mounting rails: 19" standard, adjustable depth
• Static load capacity: 60 kg
• Protection rating: IP20
• Compliance: RoHS, CE
• Included accessories: Mounting hardware, 2 keys

Our verdict

A robust and practical wall-mount cabinet that delivers secure equipment housing with convenient access and clean cable management. Its flat-pack construction and high load rating make it a smart choice for space-constrained installations.
