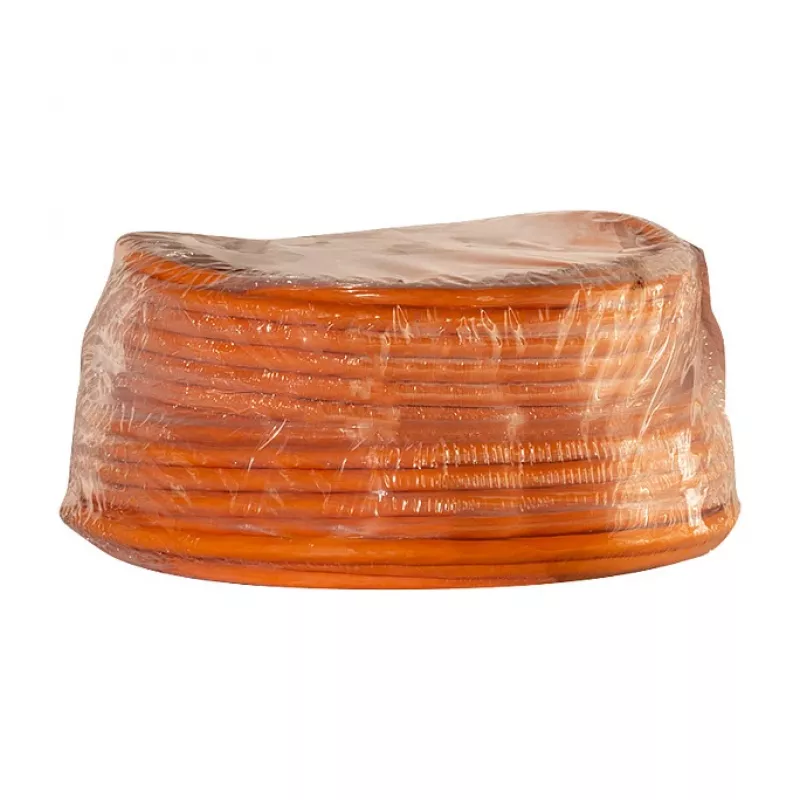

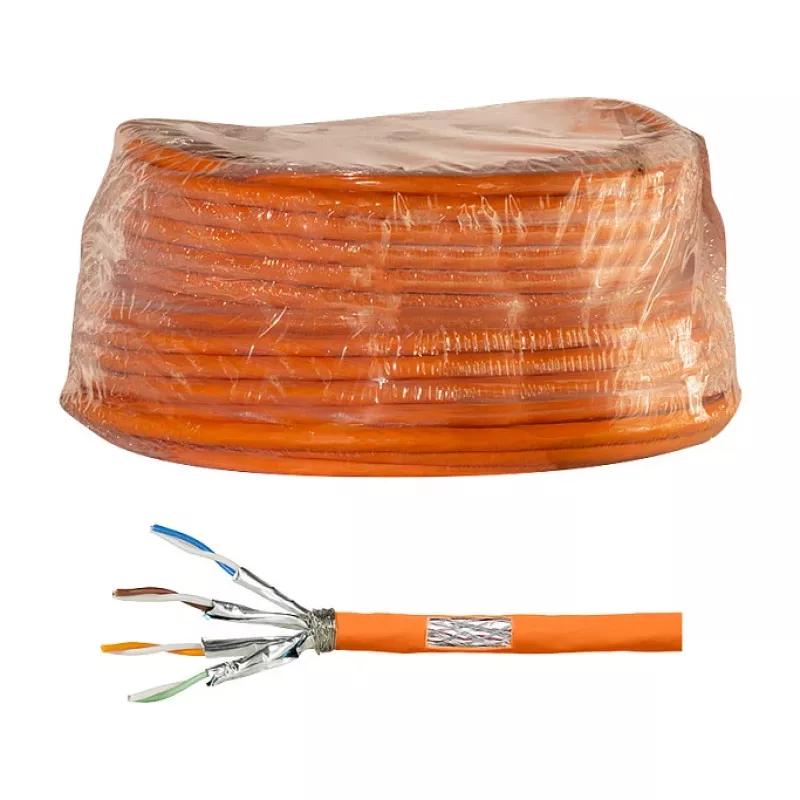

LogiLink cavo da installazione Cat.7 1000 MHz 23 AWG S/FTP 50m, arancione

Running a 10 Gigabit Ethernet backbone through an office building or industrial facility demands a cable that can maintain signal integrity over long distances and in challenging environments. The LogiLink Cat.7 installation cable delivers exactly that: a robust 50-meter run of solid bare copper conductors, individually shielded pairs, and a low-smoke zero-halogen jacket, all in a high-visibility orange. Whether you're wiring a server room, connecting floors in a campus network, or setting up a high-speed link between buildings, this cable ensures your data moves at 1000 MHz without compromise.

Key specifications

• Cable category: Cat.7
• Frequency bandwidth: 1000 MHz

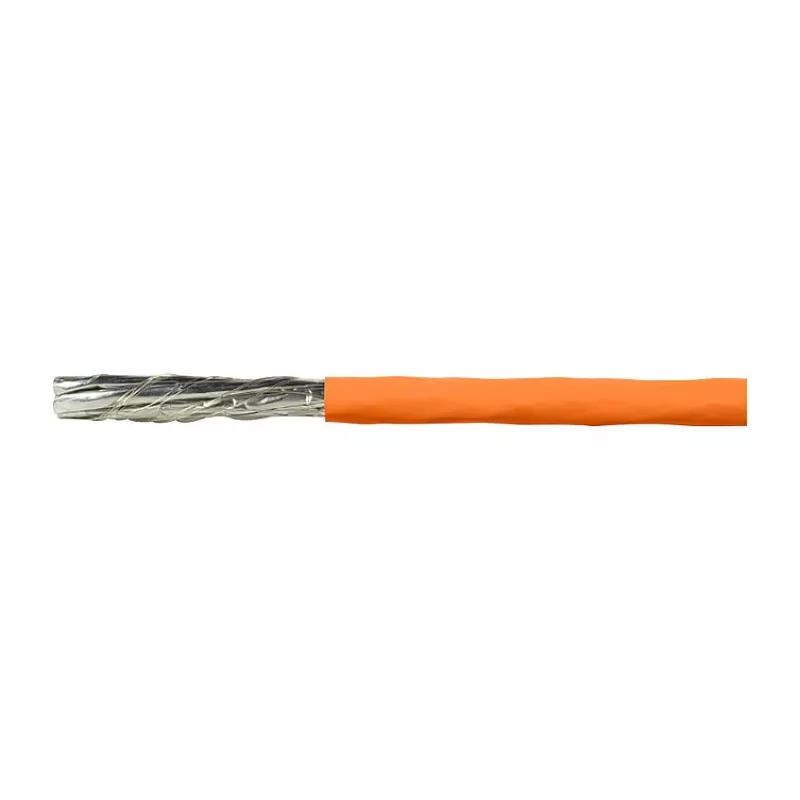

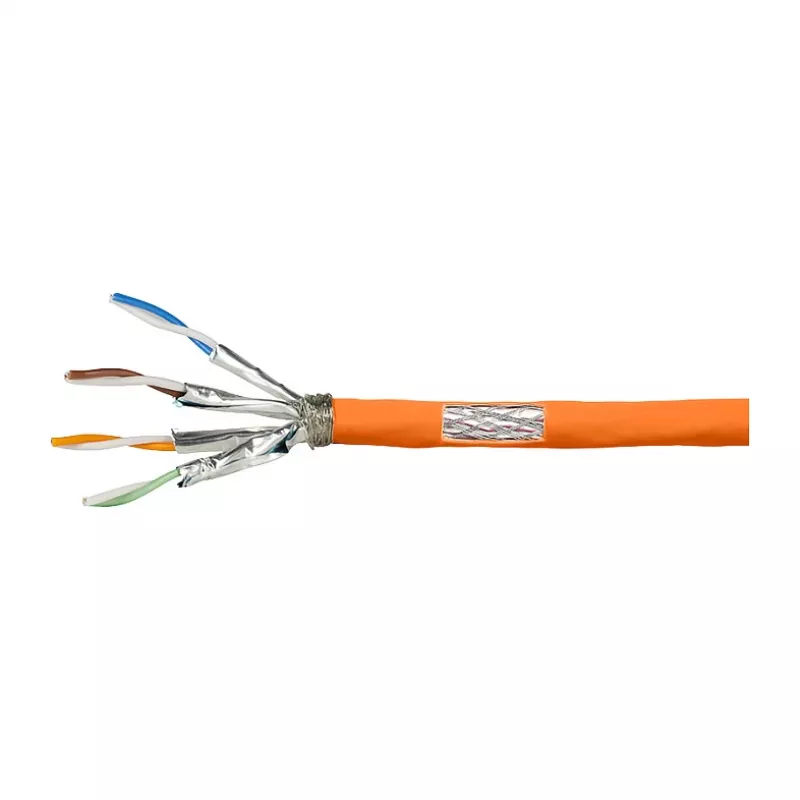

• Shielding: S/FTP (PiMF) – individual pair foil plus overall braid
• Conductor: 23 AWG solid bare copper
• Length: 50 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Orange
• Impedance: 100 Ohm
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Halogen-free and flame-retardant

Why choose it

Cat.7 S/FTP construction virtually eliminates alien crosstalk, making it ideal for dense cable bundles where interference is a concern. The solid 23 AWG conductors provide lower attenuation over distance compared to stranded cables, ensuring stable 10GBase-T performance up to the full 50-meter length. The LSZH jacket is a safety advantage: in the event of fire, it emits very little smoke and no corrosive halogens, protecting both people and equipment. The orange jacket stands out in cable trays and conduits, simplifying identification and maintenance.

Ideal use cases

• 10 Gigabit Ethernet backbone installations in office buildings
• Industrial facility networking where electromagnetic interference is present
• Server room and data center cabling
• Long-distance horizontal runs between floors or buildings
• High-density cable bundles where crosstalk is a concern

Good to know

This cable is compliant with RoHS and meets the latest international standards for structured cabling. It is designed for permanent installation and is not intended for frequent flexing or patch cord use. The LSZH jacket is particularly suitable for public buildings, hospitals, and schools where fire safety regulations require low smoke and zero halogen emissions.
