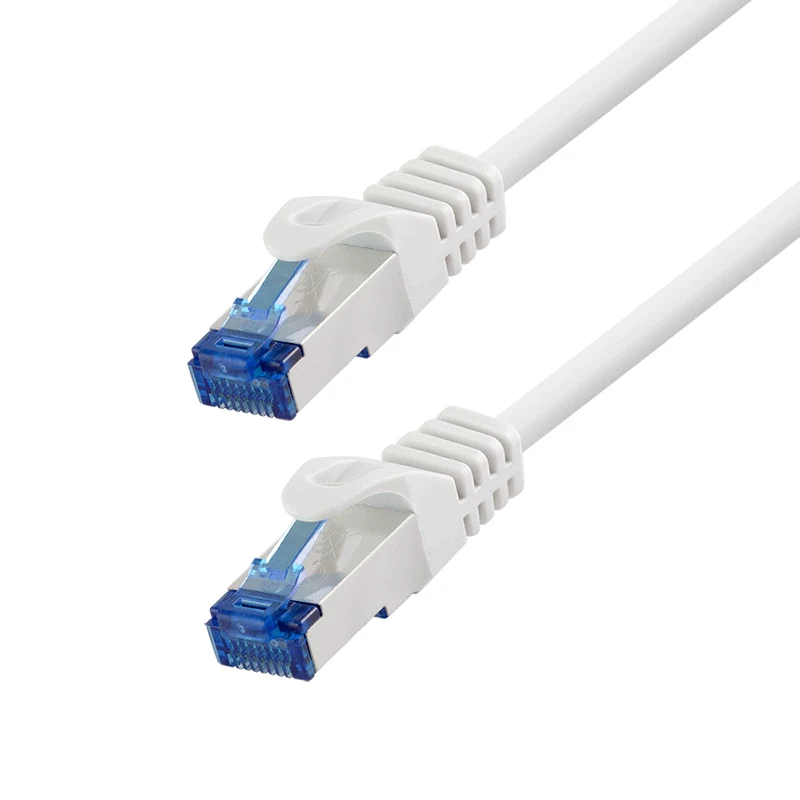

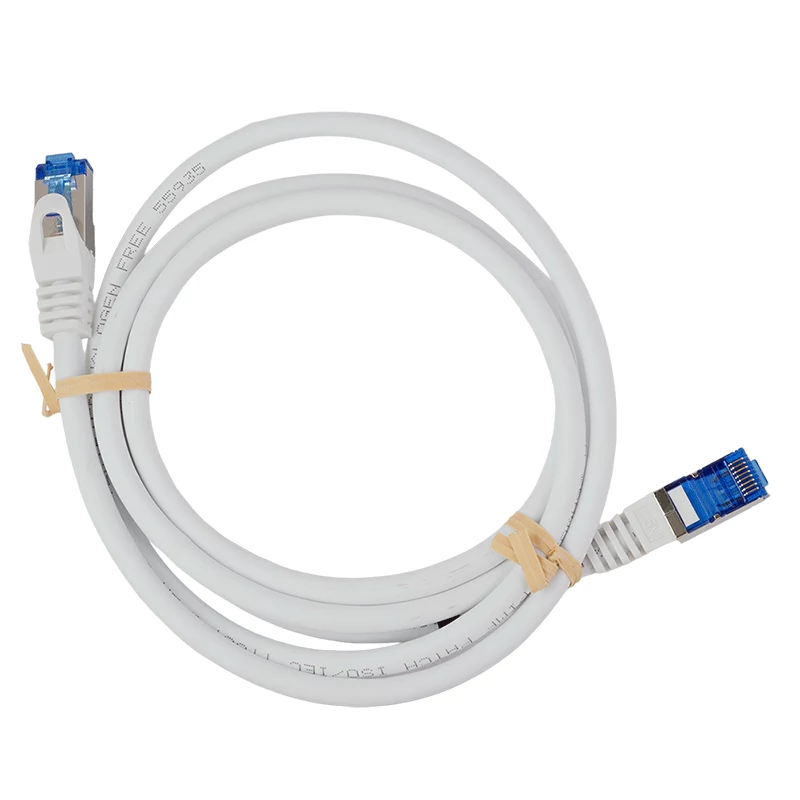

LogiLink Cavo patch Cat.6A S/FTP LSZH, bianco, 5 m, EconLine

Cat.6A patch cable that pushes 10 Gigabit Ethernet over 500 MHz with S/FTP shielding, keeping crosstalk and EMI out of high-density racks. The white LSZH jacket adds fire safety for offices and public spaces, while CCA conductors keep the cost down for short to medium runs.

Advantages

Supports 10GBASE-T for high-speed data transfer. S/FTP shielding (screened foil twisted pairs) provides superior protection against interference. LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire. Gold-plated contacts ensure reliable connectivity and corrosion resistance. Snagless molded boots protect the locking tab during installation. CCA (Copper Clad Aluminum) conductors reduce cost without sacrificing performance for short to medium runs.

Suitable for

• 10 Gigabit Ethernet networks in data centers and server rooms
• Office workstations requiring high-speed, interference-free connections
• Public buildings, schools, and hospitals where LSZH is mandatory
• Connecting switches, routers, and patch panels in structured cabling
• Home networks with high bandwidth demands (streaming, gaming, NAS)

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Copper Clad Aluminum (CCA), AWG 26/7 stranded
• Length: 5.0 meters
• Colour: White
• Connectors: RJ45 male to RJ45 male, gold-plated 50µm
• Wiring: TIA/EIA 568B
• Bandwidth: 500 MHz
• Jacket: LSZH, flame retardant IEC 60332-1
• Outer diameter: approx. 6.2 mm

Recommendations

For 10G links up to 5 meters in structured cabling, this EconLine cable delivers the shielding and safety you need without the premium price of solid copper.
