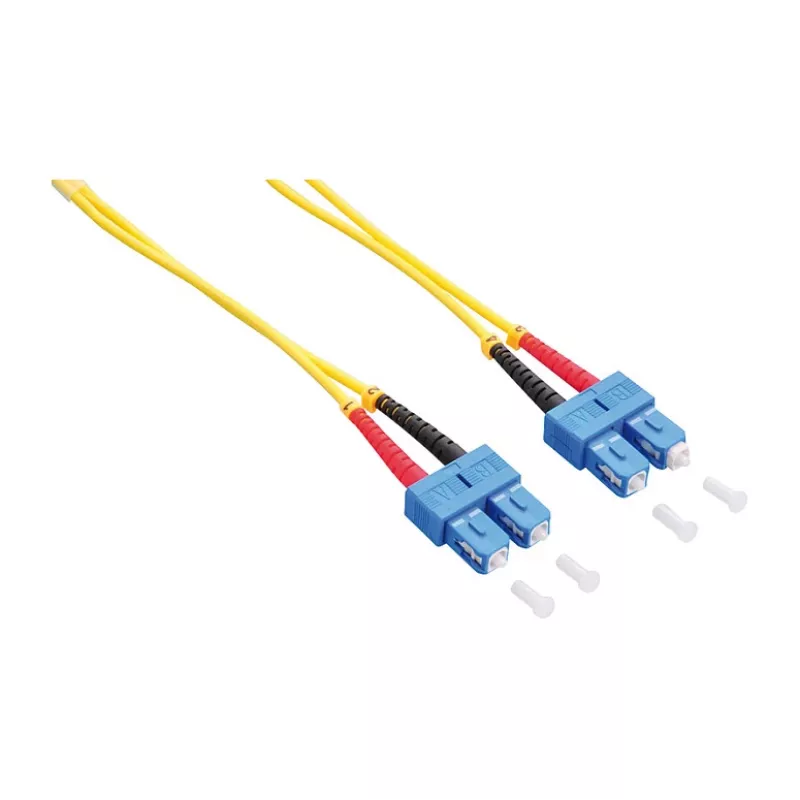

LogiLink cavo patch in fibra ottica OS2 SC/SC duplex single-mode, 3 m, 9/125 µm, LSZH, giallo

For installations where signal purity cannot be compromised, this LogiLink OS2 patch cable stands apart from generic fiber jumpers by pairing ceramic ferrule SC connectors with a tightly buffered 9/125µm single-mode core. The duplex A-B polarity and LSZH jacket make it a dependable link for high-speed backbone connections, while the 3-meter length keeps server rooms and patch panels tidy without excess slack.

Highlights

• OS2 single-mode fiber with 9/125µm core/cladding for long-haul clarity
• Duplex SC to SC connectors with ceramic ferrules for repeatable mating
• Low insertion loss (< 0.3 dB) and high return loss (> 50 dB) preserve signal budget
• LSZH (Low Smoke Zero Halogen) yellow jacket for safety in enclosed spaces
• Supports Gigabit Ethernet, 10 Gigabit Ethernet, and Fibre Channel up to 10 km

In daily use

Terminating a backbone link or patching between switches and media converters, this cable’s crossed A-B polarity eliminates the need for crossover adapters. The 3-meter length is ideal for intra-rack connections, while the bend-insensitive design (minimum bend radius 7.5 mm dynamic) tolerates tight routing without micro-bending losses. Attenuation stays at 0.35 dB/km at 1310 nm and 0.25 dB/km at 1550 nm, ensuring headroom for future upgrades.

Full specifications

• Cable type: Fiber optic patch cable, single-mode OS2
• Connector A: SC duplex (male)
• Connector B: SC duplex (male)
• Fiber core/cladding diameter: 9/125 µm
• Cable length: 3.0 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable colour: Yellow
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 50 dB
• Minimum bend radius: 7.5 mm (dynamic)
• Attenuation @ 1310 nm: 0.35 dB/km
• Attenuation @ 1550 nm: 0.25 dB/km
• Operating temperature: -20°C to 70°C
• Ferrule material: Ceramic
• Polarity: A-B (crossed)
• Compliance: RoHS, CE

Final note

When every decibel matters, this LogiLink OS2 patch cable delivers the low-loss, high-return performance that modern data centers demand—without the premium price tag.
