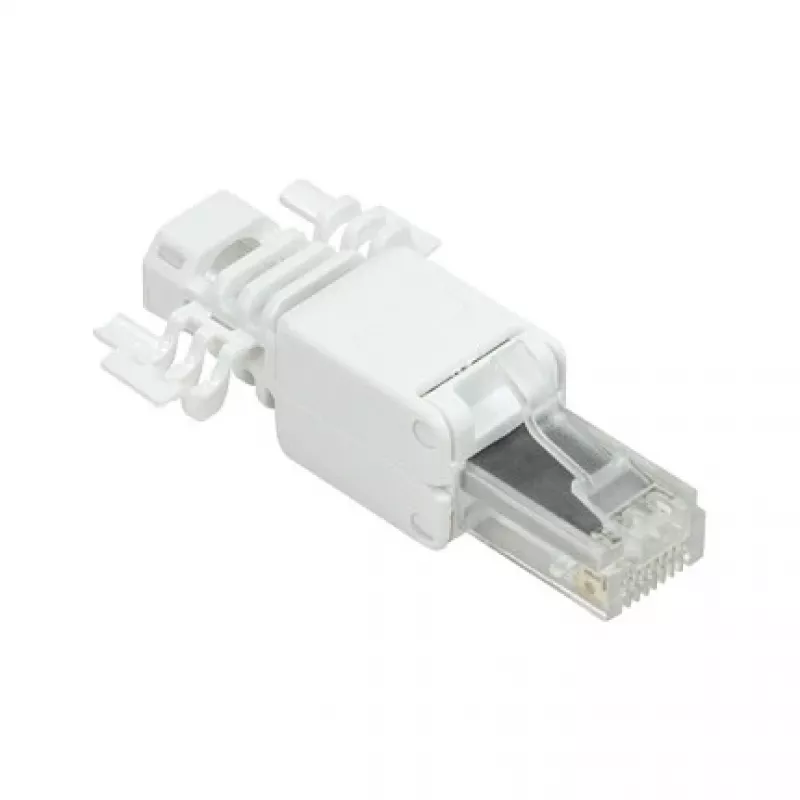

LogiLink connettore modulare RJ45 Cat.6A, UTP, senza attrezzi, bianco

Network technicians and IT installers often face the challenge of terminating Cat.6A cables in tight spaces without specialized crimping tools. The LogiLink MP0028 modular plug solves this with a toolless design that allows quick, reliable field assembly. This white RJ45 plug is engineered for unshielded twisted pair (UTP) installations, supporting 10-Gigabit Ethernet speeds for high-performance networks.

Key specifications

• Connector type: RJ45 plug (8P8C)
• Category: Cat.6A (Class EA)
• Shielding: UTP (unshielded)
• Termination: Toolless, reusable
• Colour: White
• Contact plating: 50µ gold-plated
• Wire compatibility: Solid and stranded, AWG 22-26
• Cable outer diameter: 6.0 - 8.5 mm
• Housing material: Zinc die-cast with plastic components
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• PoE support: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• Operating temperature: -10 °C to +60 °C

Why choose it

The toolless termination mechanism saves time and eliminates the need for crimping tools, making it ideal for on-site installations and repairs. The zinc die-cast housing provides durability, while the 50µ gold-plated contacts ensure reliable signal integrity. Its reusable design allows for easy re-termination if wiring mistakes occur, reducing waste and cost.

Ideal use cases

• Field termination of Cat.6A UTP cables in office networks
• Quick repairs for damaged RJ45 connectors
• High-speed data applications up to 10GBASE-T
• PoE-powered devices such as IP cameras and access points

Good to know

The plug accommodates a wide range of cable diameters and both solid and stranded conductors, offering flexibility for various cable types. It is fully compliant with industry standards, ensuring compatibility with existing Cat.6A infrastructure. The white colour blends seamlessly with most cable jackets and wall plates.
