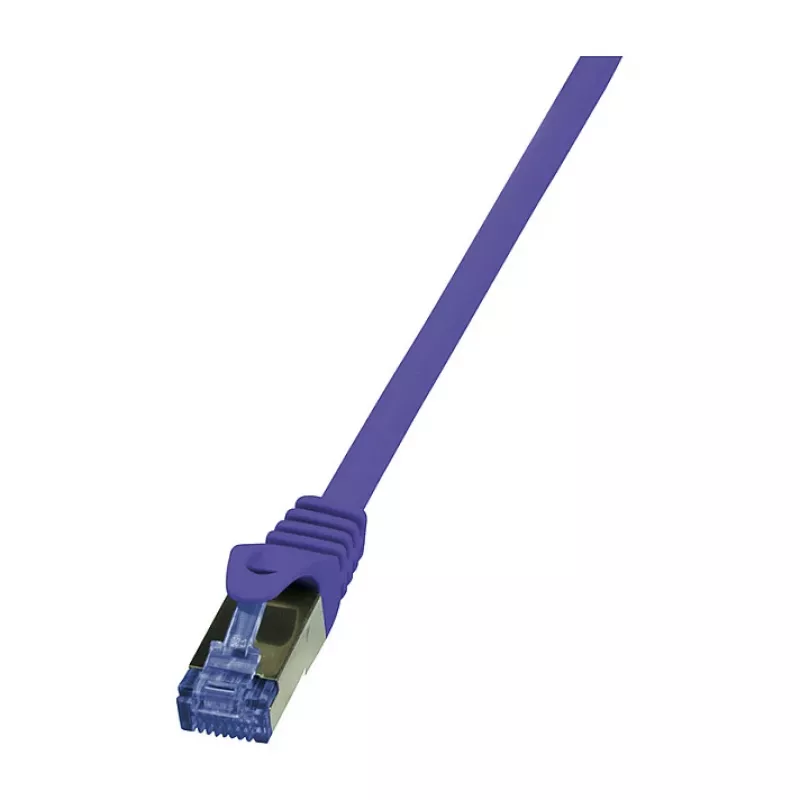

LogiLink CQ301VS Cavo patch Cat.6a S/FTP, 0,25 m, viola, LSZH, senza alogeni, protezione anti-piega, 10 Gbit/s

Short patch cables are often the weak link in high-density network setups—too long and they create clutter, too stiff and they stress ports. The LogiLink CQ301VS solves this with a compact 0.25 m length and a flexible, halogen-free jacket that’s ideal for connecting devices in tight spaces, from patch panels to switches, without sacrificing performance. It delivers full 10-Gigabit Ethernet over Cat.6a with S/FTP shielding, ensuring your critical links stay fast and interference-free.

Who is it for

Network administrators, IT technicians, and system integrators who need reliable, short-range connectivity in server rooms, data centers, or office environments where space is limited and safety standards are strict. It’s also perfect for connecting devices in public buildings where low-smoke, zero-halogen cabling is required by regulation.

Main features

• Cat.6a performance with 500 MHz bandwidth supports 10GBASE-T up to 100 m (this cable is 0.25 m, ideal for patching).
• S/FTP shielding: each pair is foil-shielded (PiMF) and the overall cable is braid-shielded, providing excellent immunity to EMI/RFI.
• LSZH (Low Smoke Zero Halogen) jacket: emits low smoke and no toxic halogens in case of fire, making it safe for enclosed spaces.
• Flame retardant and halogen-free construction meets strict safety and environmental standards.
• Gold-plated RJ45 connectors (50µ) ensure reliable, corrosion-resistant connections.
• Molded snagless boot protects the locking tab during installation and removal, preventing accidental disconnects.
• Stranded 26 AWG copper conductors offer flexibility for frequent re-patching without breakage.
• Wired to TIA/EIA 568B standard for universal compatibility.

Specifications

• Brand: LogiLink
• Model: CQ301VS
• MPN: CQ301VS
• EAN: 4052792043235
• Cable length: 0.25 m
• Cable type: Cat.6a S/FTP (PiMF)
• Shielding: S/FTP (foil per pair + overall braid)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µ)
• Conductor material: Copper, stranded
• Conductor gauge: 26 AWG
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Flame retardant: Yes
• Halogen free: Yes
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Boot type: Molded, snagless
• Colour: Purple
• Compliance: RoHS, CE

Tips

For best performance, keep the cable away from power lines and use cable management to maintain the minimum bend radius. When patching high-density switches, the snagless boot allows easy insertion and removal without damaging adjacent ports. Pair with other LogiLink Cat.6a components for a fully certified 10G network.
