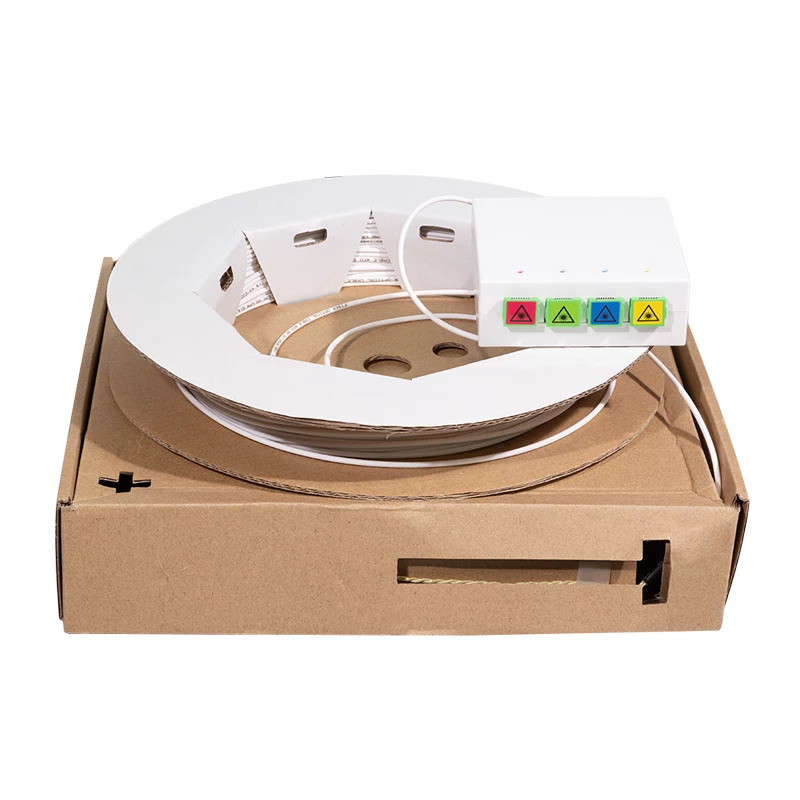

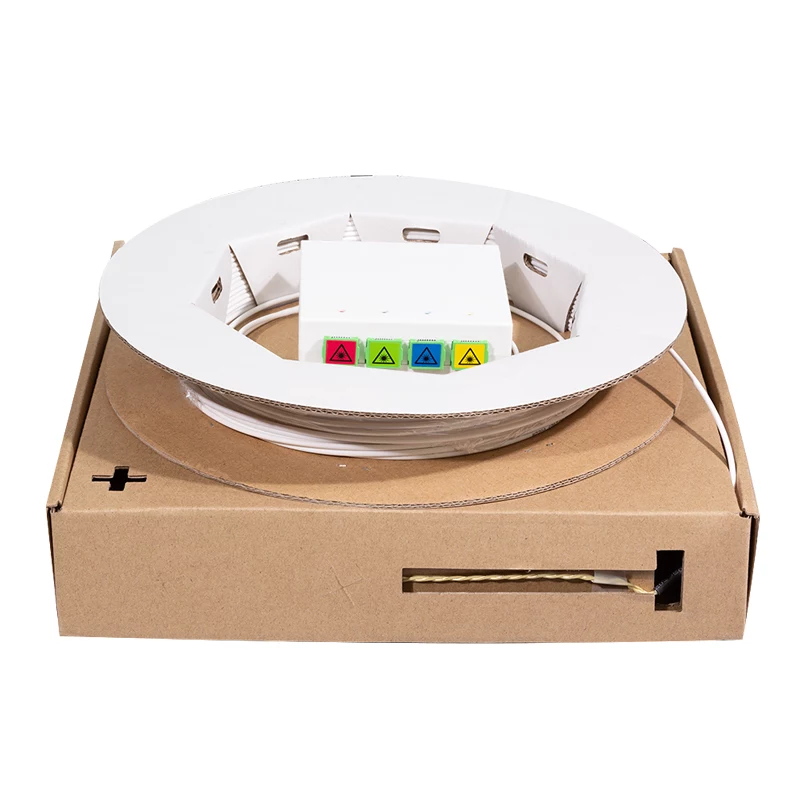

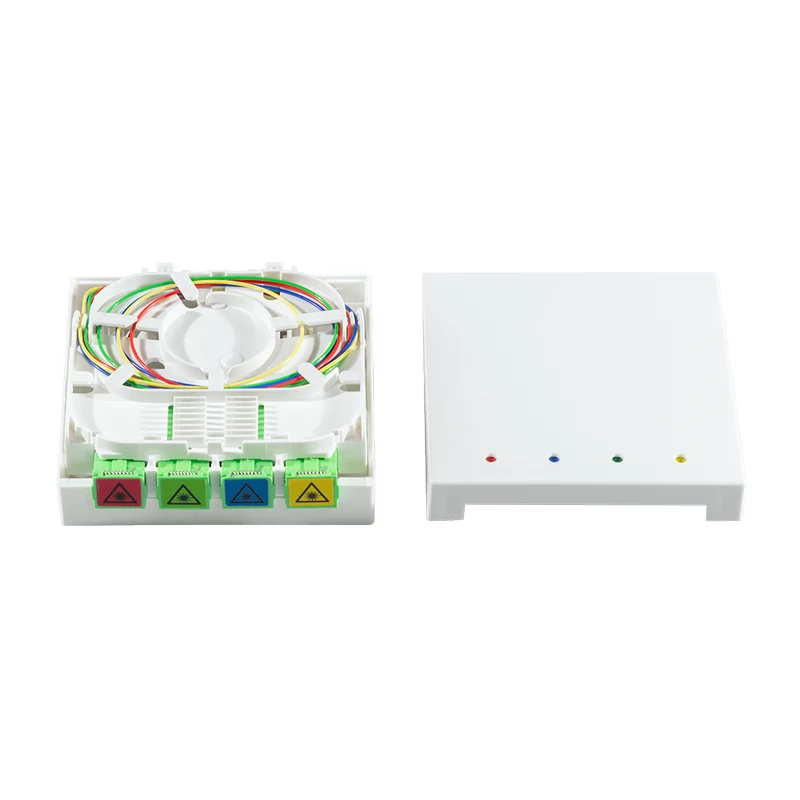

LogiLink FB4SC20 scatola di connessione FTTH 4x SC/APC con cavo di installazione 20 m

The LogiLink FB4SC20 is a professional FTTH termination box designed for fiber-to-the-home and FTTx networks. It provides a reliable and organized solution for terminating and distributing fiber optic cables in indoor environments. This unit comes pre-equipped with a 20-meter single-mode drop cable and four SC/APC adapters, making it ideal for last-mile fiber connections.

Advantages

High-quality SC/APC connectors ensure low insertion loss and high return loss for optimal signal integrity. The compact wall-mountable design saves space and simplifies installation. The included LSZH (Low Smoke Zero Halogen) cable enhances safety in residential and commercial buildings.

Suitable for

• FTTH (Fiber to the Home) installations
• FTTx network deployments
• PON (Passive Optical Network) systems
• Indoor fiber optic termination points

Key specifications

• Product Type: FTTH Termination Box
• Connector Type: SC/APC
• Number of Ports: 4
• Fiber Type: Single-mode (OS2, G.657.A2)
• Included Cable Length: 20 m
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Box Material: ABS Plastic
• Mounting: Wall-mountable
• Insertion Loss: < 0.3 dB
• Return Loss: > 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Color: White
• IP Rating: IP20 (Indoor use)
• Splice Capacity: Up to 4 splices

Recommendations

For optimal performance, use with compatible SC/APC patch cables and ensure proper fiber cleaning before connection. This termination box is suitable for use with fusion or mechanical splices.
