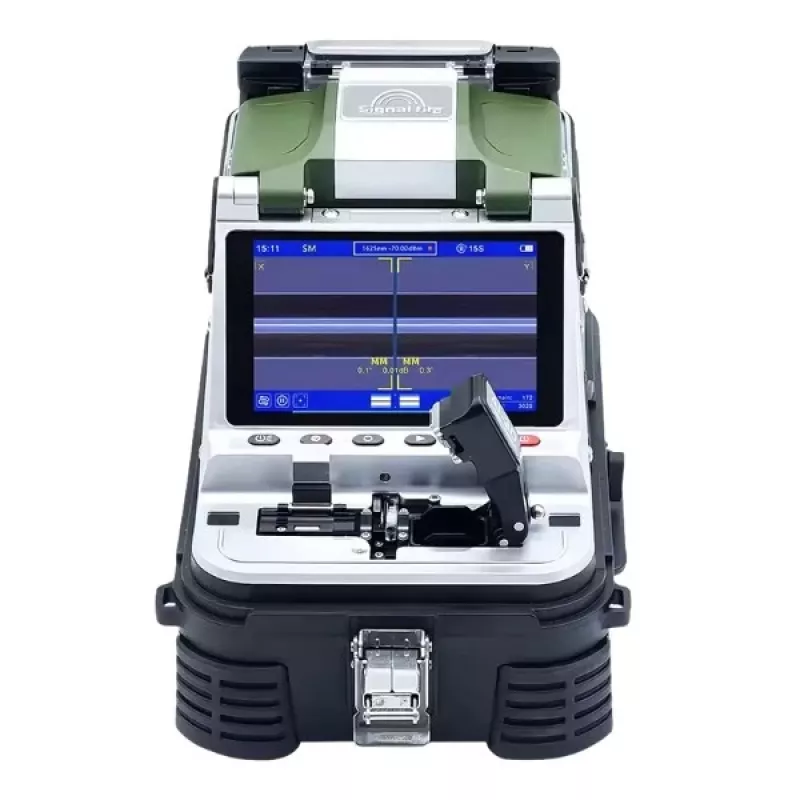

Signal Fire AI-30 giuntatrice a fusione ad arco

The Signal Fire AI-30 is a high-performance arc fusion splicer designed for fast and reliable splicing of optical fibers. Featuring core alignment technology and a 5.0-inch TFT color LCD, it delivers low splice loss and efficient operation for field and lab use.

Advantages

Fast 6-second splice time and 15-second heating cycle with 7800mAh battery supporting up to 240 splice and heat cycles. Automatic arc calibration, heating, and fiber identification simplify operation. Universal 3-in-1 fiber holders accommodate various fiber types.

Suitable for

• FTTx network installation and maintenance
• Data center cabling
• Telecommunications infrastructure
• Fiber optic research and development

Key specifications

• Splicing method: Arc fusion splicing
• Fiber alignment: Core alignment (PAS technology)
• Applicable fibers: SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655)
• Typical splice loss: 0.025dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
• Splice time: 6 seconds (standard SM G.652)
• Heating time: 15 seconds (40mm sleeve)
• Electrode life: 5,000 arcs
• Display: 5.0-inch TFT color LCD, 800x480 resolution
• Magnification: 300X (X or Y view), 150X (X and Y view)
• Battery: 7800mAh, up to 240 splice & heat cycles
• Fiber cladding diameter: 80-150 μm
• Fiber coating diameter: 100-1000 μm
• Cleave length: 8-16mm (coating <250μm), 16mm (coating ≥250μm)
• Tension test: 2.0N
• Operating temperature: -15°C to +50°C
• Data connectivity: USB, Bluetooth
• Fiber holders: 3-in-1 universal holder
• Splicing modes: 17 preset, 128 user-defined
• Return loss: >60dB

Recommendations

For optimal performance, use with compatible fiber cleavers and sleeves. The AI-30 is ideal for professionals requiring high-speed, low-loss splicing in various environments.
