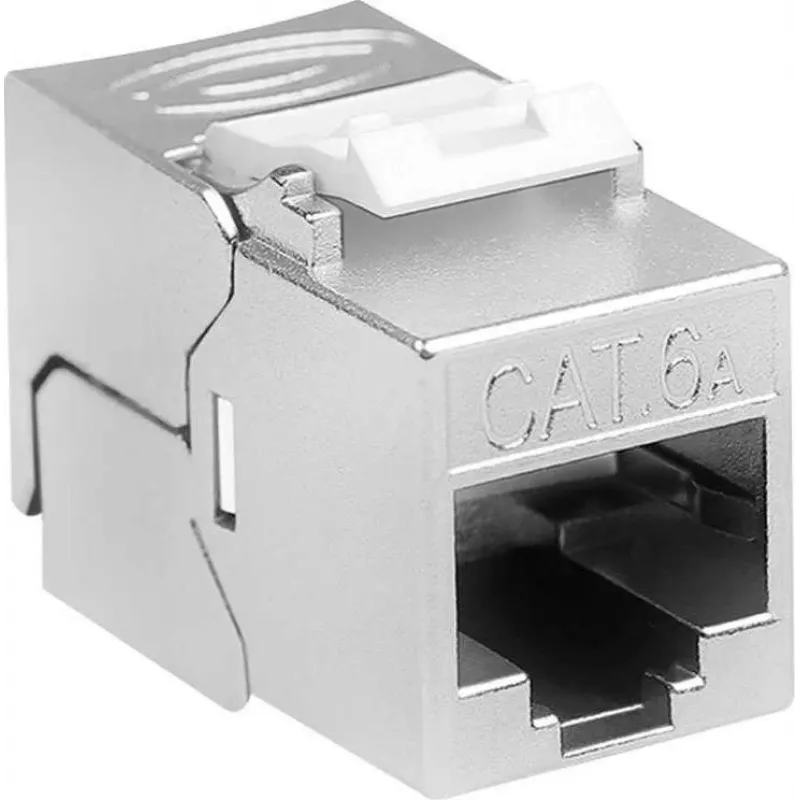

LogiLink jack keystone Cat.6A STP Component Certified, 14,7 mm 22-26 AWG

Network installers and IT technicians working on high-density patch panels and wall outlets need a reliable, high-performance connection that can handle 10 Gigabit speeds without signal degradation. This Cat.6A STP keystone jack delivers exactly that, with a shielded zinc die-cast housing that protects against electromagnetic interference and a tool-less IDC termination that speeds up installation. Whether you're wiring a data center, an office building, or an industrial environment, this module ensures a secure, future-proof link for your copper cabling infrastructure.

Key specifications

• Performance Category: Cat.6A (Category 6A), supporting up to 10GBASE-T Ethernet
• Shielding Type: STP (Shielded Twisted Pair) with zinc die-cast housing for maximum EMI protection
• Certification: GHMT Component Certified, meeting ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards
• Connector Type: RJ45 female, 8P8C, with 50µ gold-plated contacts for reliable connectivity
• Termination Type: Tool-less IDC (Insulation Displacement Connector), compatible with 22-26 AWG solid and stranded wires
• Wiring Scheme: T568A & T568B color-coded for easy installation
• PoE Support: PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for powering devices over Ethernet
• Frequency Bandwidth: Up to 500 MHz
• Insertion Cycles: >750 for long-term durability
• Operating Temperature: -10°C to +60°C, suitable for various environments
• Mounting Standard: Keystone module, fits standard keystone wall plates and patch panels

Why choose it

This keystone jack combines high-speed performance with rugged construction. The shielded zinc die-cast housing not only blocks interference but also withstands the rigors of frequent use. Tool-less termination means you can install it quickly without special tools, reducing labor time. Its compliance with international standards ensures compatibility with a wide range of network equipment, making it a versatile choice for any structured cabling project.

Ideal use cases

• Data centers requiring 10G connections in high-density patch panels
• Office buildings upgrading to Cat.6A for future-proof networking
• Industrial environments with high electromagnetic interference
• PoE applications such as IP cameras, wireless access points, and VoIP phones

Good to know

The keystone jack is designed for easy integration into standard keystone wall plates and patch panels. It supports both T568A and T568B wiring schemes, and the color-coded IDC terminals simplify installation. With a wide operating temperature range and high insertion cycle rating, it is built to last in demanding conditions.
