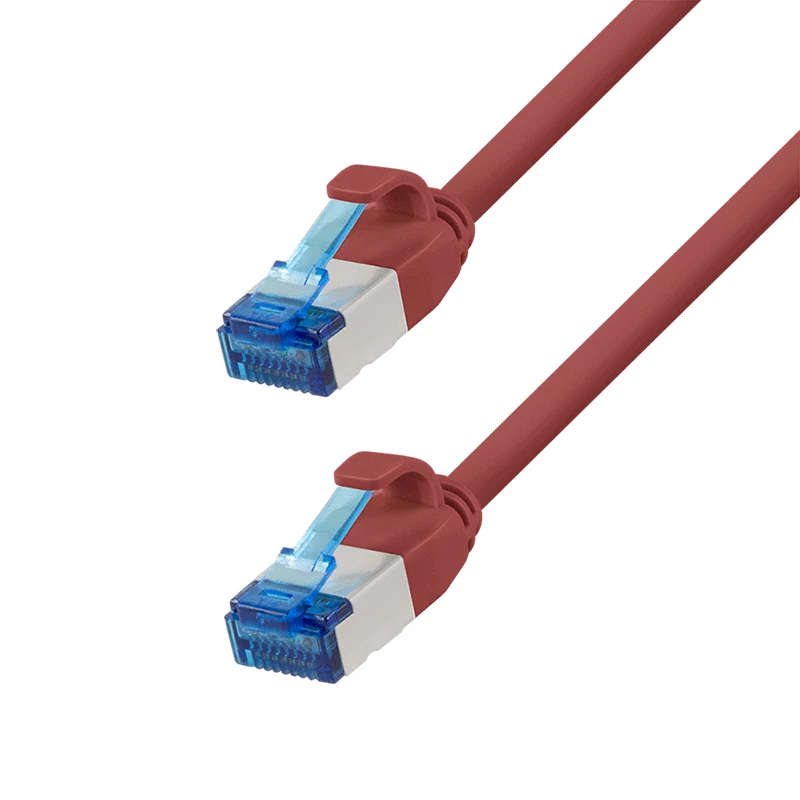

LogiLink SlimLine Cat.6A S/FTP LSZH cavo patch, rosso, 20 m

High-performance Cat.6A patch cable with slim design and S/FTP shielding, delivering 10 Gigabit Ethernet speeds up to 500 MHz. The LSZH jacket ensures low smoke and zero halogen emission for safety in dense environments, while the snagless boot protects the locking tab during installation. Ideal for high-density data centers, office networks, and PoE applications.

Advantages

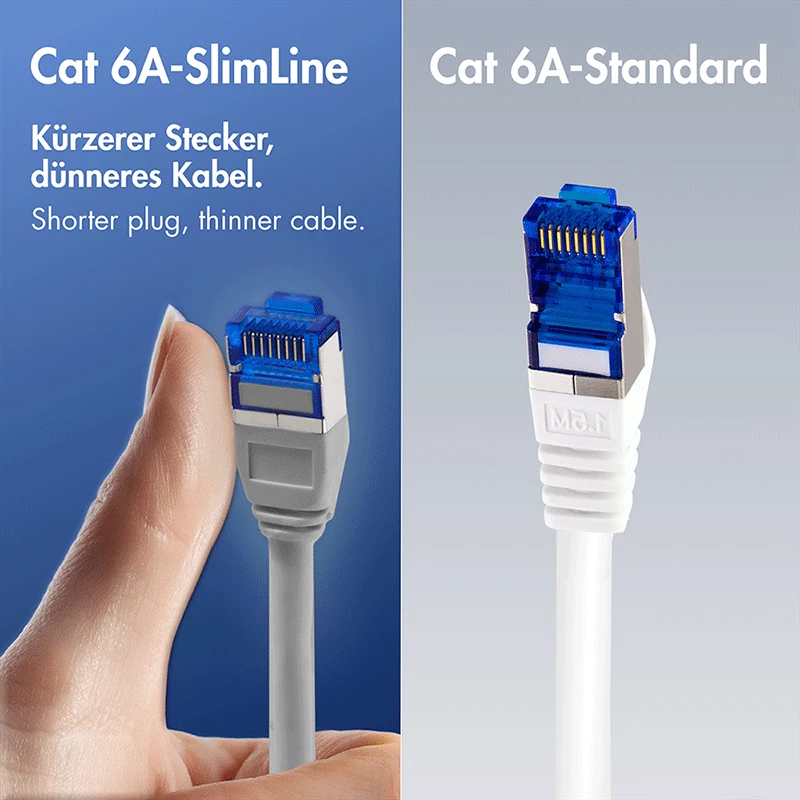

Supports 10GBASE-T with superior crosstalk resistance thanks to individual pair foil and overall braid shielding. The 30 AWG stranded copper conductors keep the cable flexible and easy to route, while the slim 3.8 mm diameter reduces clutter and improves airflow in racks. Gold-plated contacts (50µ") guarantee reliable, corrosion-resistant connections.

Suitable for

• 10 Gigabit Ethernet networks and data centers
• High-density patch panels and server rooms
• PoE devices such as IP cameras and access points
• Office LAN connections requiring halogen-free cabling

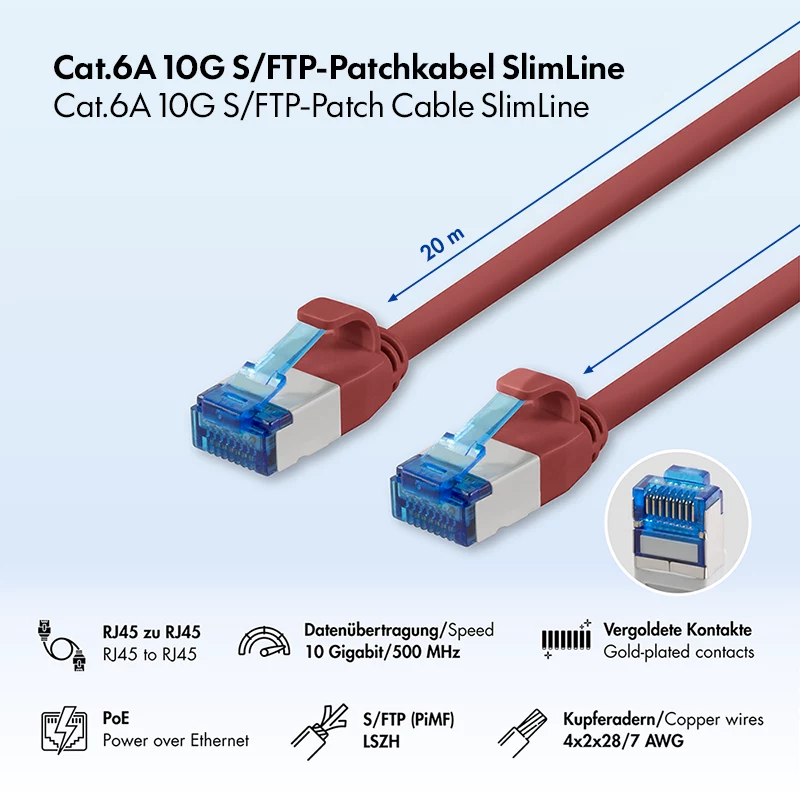

Key specifications

• Category: Cat.6A (500 MHz)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Length: 20 m
• Colour: Red
• Conductor: 30 AWG stranded OFC
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, snagless boot
• Wiring: TIA/EIA 568B
• Diameter: approx. 3.8 mm

Recommendations

For optimal performance, avoid sharp bends and maintain a minimum bend radius of 4 times the cable diameter. Use with Cat.6A compatible hardware to achieve full 10G speeds. The slim profile is perfect for high-density patch panels where space is limited.
