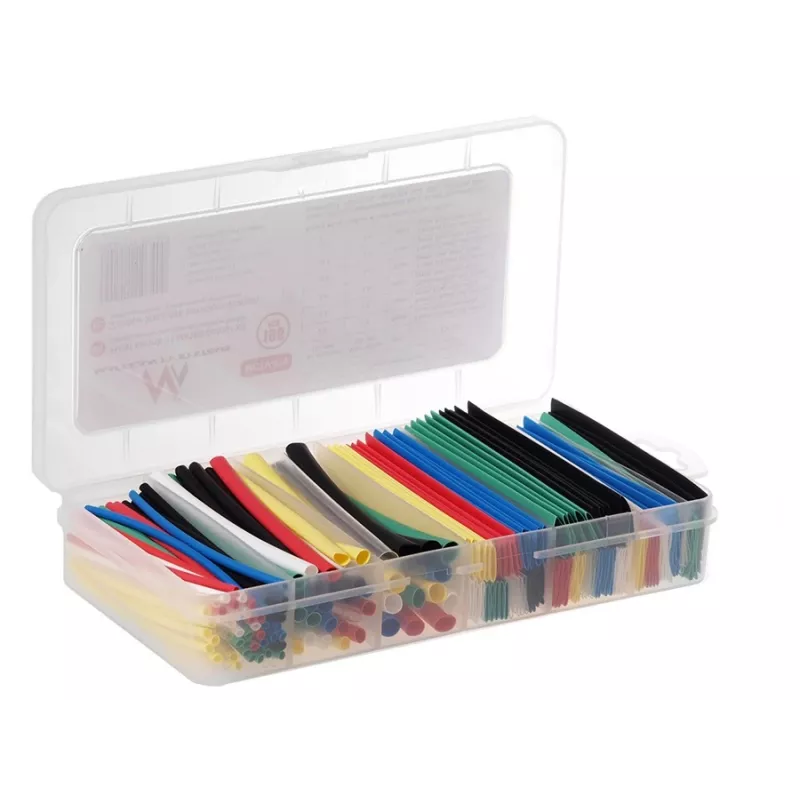

MACLEAN set guaina termorestringente 196 pezzi MCTV-679

The MACLEAN MCTV-679 Heat Shrinkable Tube Kit is a comprehensive set of 196 pieces of polyolefin tubing in assorted colors, designed for insulation, protection, and organization of electrical connections. With a 2:1 shrink ratio and a wide operating temperature range, these tubes provide reliable performance in various environments.

Advantages

This kit offers a versatile selection of diameters and colors, making it ideal for a wide range of wiring projects. The tubes are RoHS compliant and feature a VW-1 flammability rating, ensuring safety and environmental responsibility. The 45 mm length is suitable for most common applications, and the included sizes cover everything from thin wires to thicker cables.

Suitable for

• Electrical insulation and protection of wires and cables
• Color-coding of wiring for easy identification
• Repair and maintenance of electronic devices
• DIY projects and professional installations

Key specifications

• Total Pieces: 196
• Material: Polyolefin
• Shrink Ratio: 2:1
• Operating Temperature Range: -55°C to +125°C
• Minimum Shrink Temperature: +70°C
• Full Shrink Temperature: +110°C
• Dielectric Strength: 15 kV/mm
• Flammability Rating: VW-1
• Environmental Compliance: RoHS Compliant
• Color Assortment: Black, Red, Yellow, Blue, Green
• Tube Length: 45 mm
• Diameter 1.0mm: 60 pcs
• Diameter 2.0mm: 40 pcs
• Diameter 3.0mm: 30 pcs
• Diameter 4.0mm: 20 pcs
• Diameter 6.0mm: 16 pcs
• Diameter 8.0mm: 12 pcs
• Diameter 10.0mm: 10 pcs
• Diameter 13.0mm: 8 pcs

Recommendations

For best results, use a heat gun or hot air blower to shrink the tubing evenly. Ensure the tube is fully shrunk at the recommended temperature for a secure fit.
