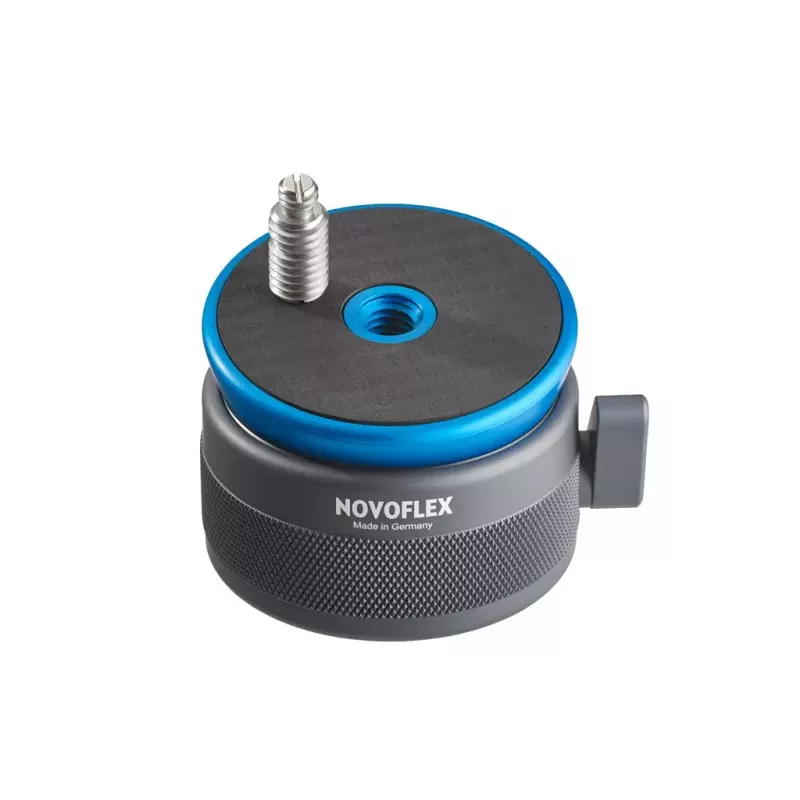

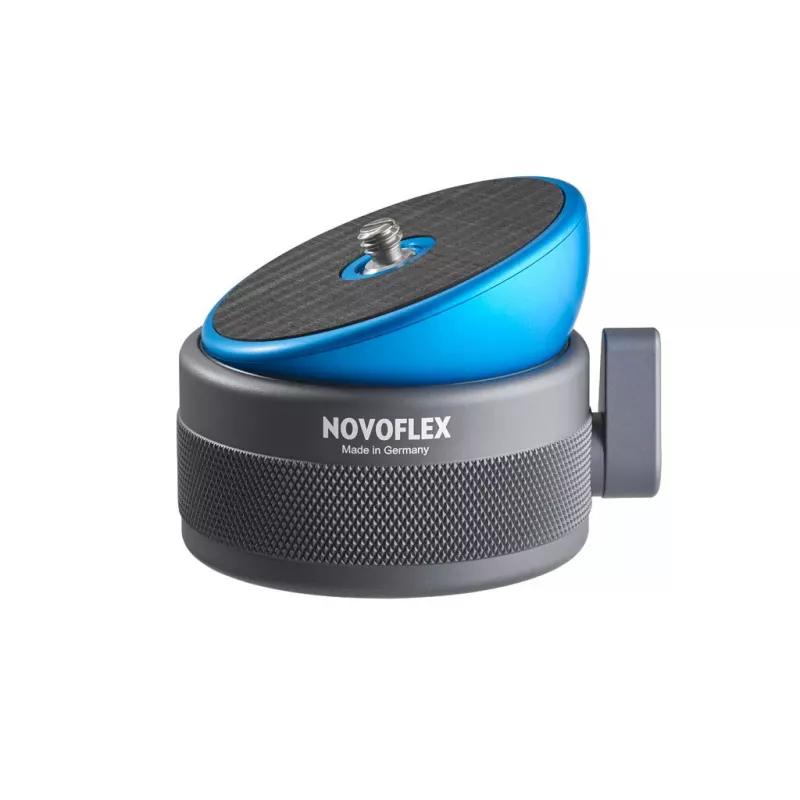

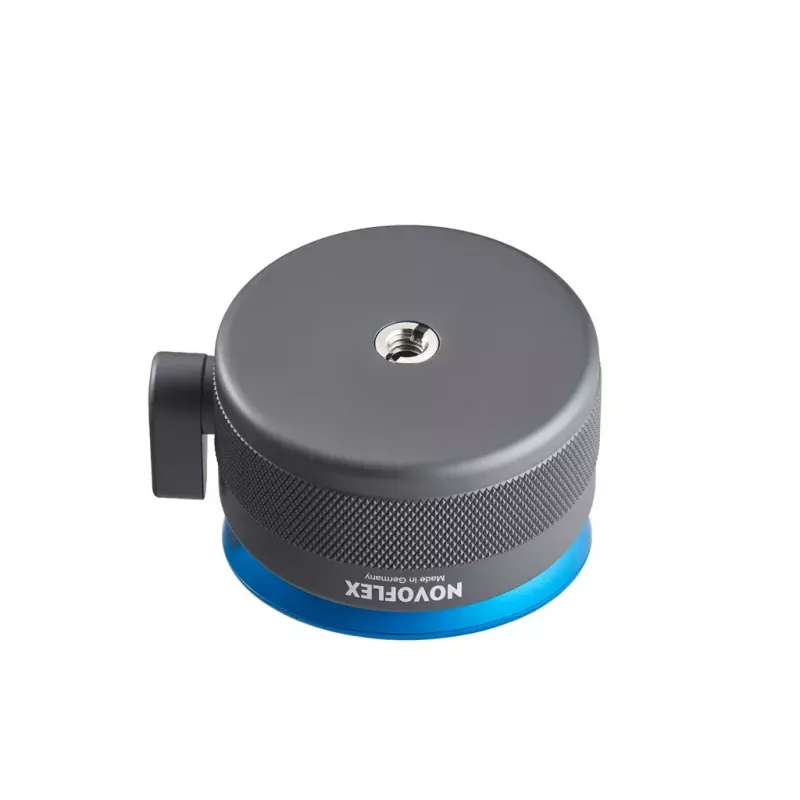

MagicBalance Novoflex MBAL20

MagicBalance Novoflex MBAL20 is a compact, robust leveling ball designed to align cameras and accessories quickly and precisely. The device allows up to 20° tilt in any direction and is built for low maintenance and smooth movement. Its small footprint makes it suitable as a base for 3D cameras, modern gimbal tripod heads and panorama systems, and it is useful for leveling on uneven terrain.

Advantages

The MagicBalance MBAL20 supports up to 10 kg and offers dual connecting threads (1/4" and 3/8") for broad compatibility with camera plates and tripod heads. It can be adjusted and locked with one hand using a single fixing screw. Its sturdy construction and compact dimensions (70 × 60 × 44 mm) provide stability without adding significant bulk to the setup. Available in black and blue.

Suitable for

• Panorama photography and pano heads
• 3D camera setups
• Gimbal tripod heads and compact stabilizers
• Leveling cameras on uneven ground

Key specifications

• Model: MagicBalance Novoflex MBAL20
• Maximum load capacity: 10 kg
• Connecting threads: 1/4" and 3/8"
• Dimensions (W × D × H): 70 × 60 × 44 mm
• Colours: black, blue
• Manufacturer part number (MPN): MBAL20
• EAN: 4030432810553

How to use

Attach the MagicBalance MBAL20 to your tripod head or mounting plate using the appropriate thread (1/4" or 3/8"). Mount the camera or accessory on the top plate, loosen the fixing screw to allow up to 20° tilt in any direction, adjust the camera until it is level, then tighten the fixing screw with one hand to lock the position. The mechanism is designed for smooth movement and minimal maintenance.

Recommendations

Use the MagicBalance MBAL20 within its 10 kg load limit and ensure threads are correctly matched and tightened. For panorama work, verify the camera is centred over the tripod axis before locking. Avoid exposing the unit to corrosive environments and periodically check the fixing screw for secure operation.
